Ref.:42431-20090
Rear Axle
Height : 64 mm
Diameter : 269 mm
Centering Diameter : 54 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.3 kg -

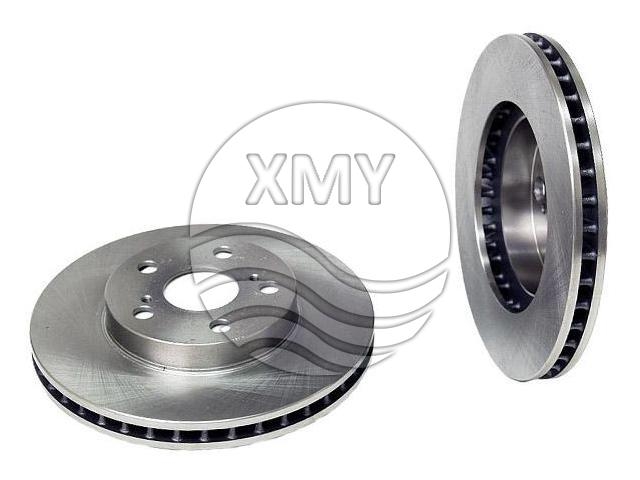

Ref.:43512-20580
Front Axle
Height : 49.4 mm
Diameter : 255 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:43512-21010
Front Axle
Height : 49.2 mm
Diameter : 255 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 24 mm
Num. of holes : 5
Solid or Vented : V
Weight : 4.9 kg -

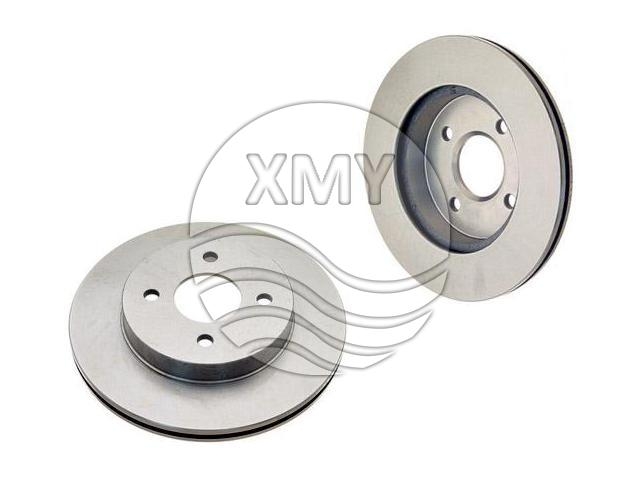

Ref.:21012665
Rear Axle
Height : 41.3 mm
Diameter : 244.9 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S -

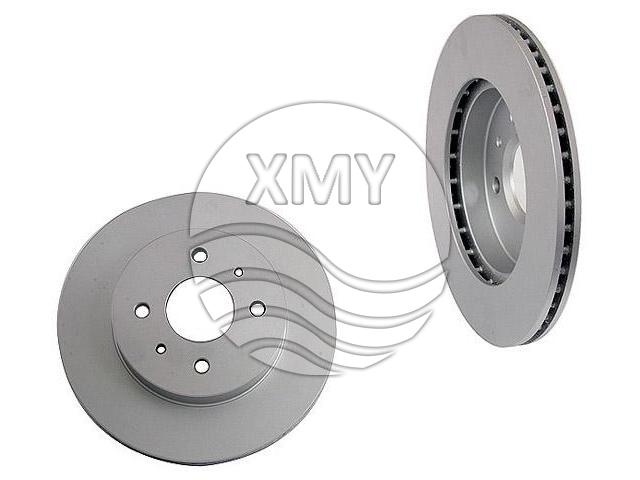

Ref.:21012880
Front Axle
Height : 43.3 mm
Diameter : 250 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 15.8 mm
Num. of holes : 4
Solid or Vented : V -
Ref.:18060237
Front Axle
Height : 48 mm
Diameter : 259.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20.3 mm
Minimum Thickness : 18.7 mm
Num. of holes : 5
Solid or Vented : V -

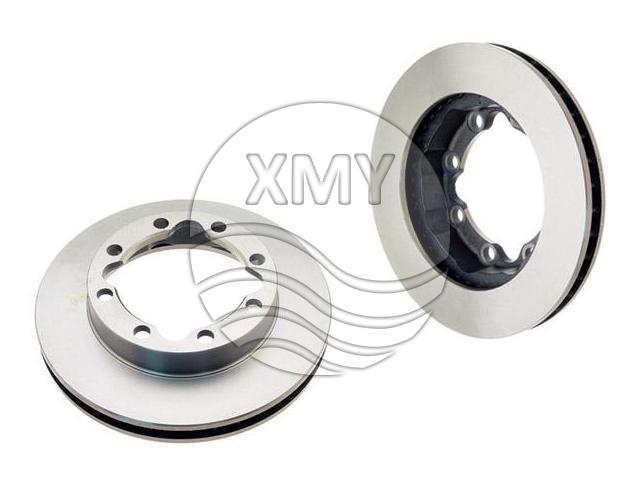

Ref.:15981339
Front Axle
Height : 69.9 mm
Diameter : 317.5 mm
Pitch Circle Diameter : 165.1 mm
Brake Disc Thickness : 32.6 mm
Minimum Thickness : 30.9 mm
Num. of holes : 5
Solid or Vented : V -

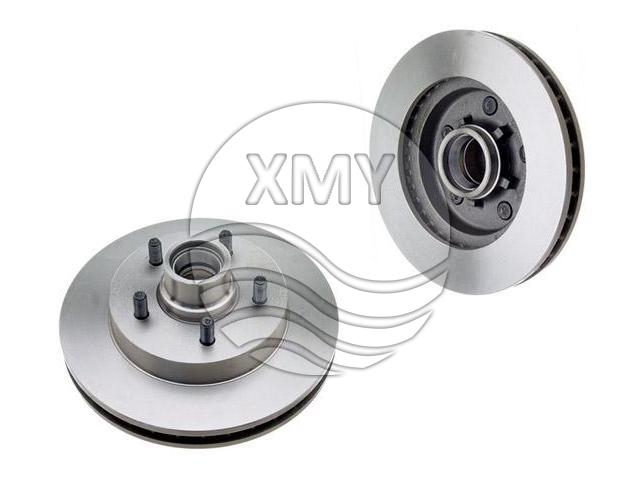

Ref.:15981315
Front Axle
Height : 115.5 mm
Diameter : 295.3 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 32.6 mm
Minimum Thickness : 30.9 mm
Num. of holes : 5
Solid or Vented : V -

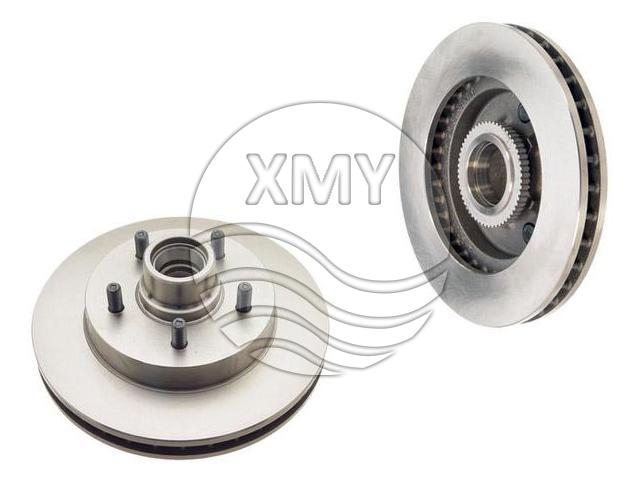

Ref.:15981316
Front Axle
Height : 114.7 mm
Diameter : 294.9 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 32.6 mm
Minimum Thickness : 30.9 mm
Num. of holes : 5
Solid or Vented : V -

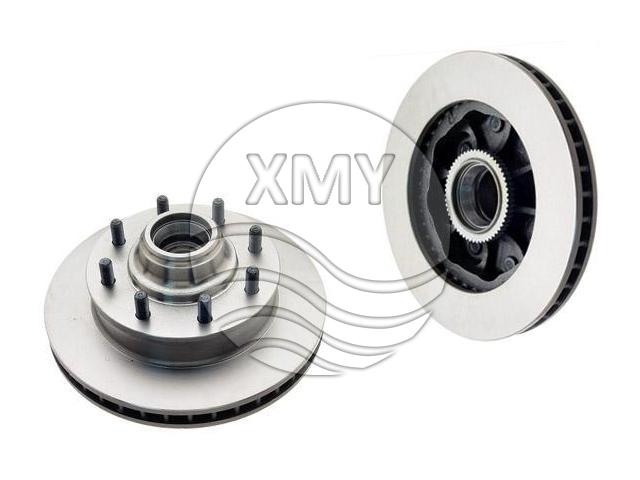

Ref.:15981319
Front Axle
Height : 126.6 mm
Diameter : 317.5 mm
Pitch Circle Diameter : 165.1 mm
Brake Disc Thickness : 32.6 mm
Minimum Thickness : 30.9 mm
Num. of holes : 8
Solid or Vented : V
