Ref.:LA01-33-251A
Front Axle
Height : 61.9 mm
Diameter : 255.6 mm
Centering Diameter : 72.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.6 kg -
Rear Axle
Height : 32.9 mm
Diameter : 280 mm
Centering Diameter : 63.8 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.2 mm
Minimum Thickness : 8.9 mm
Num. of holes : 4
Solid or Vented : S -

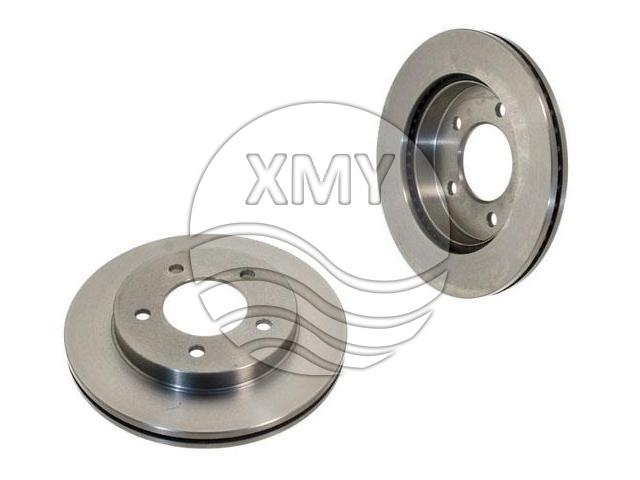

Ref.:XL3Z-1125-CB
Front Axle
Height : 52 mm
Diameter : 308 mm
Centering Diameter : 90.2 mm
Pitch Circle Diameter : 132.5 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.5 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.5 kg -

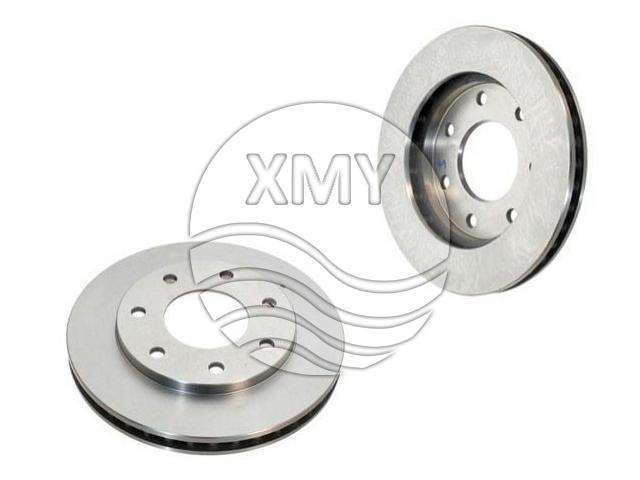

Ref.:F75Z-1125-AC
Front Axle
Height : 47.2 mm
Diameter : 308 mm
Pitch Circle Diameter : 135 mm
Brake Disc Thickness : 30.1 mm
Minimum Thickness : 27.7 mm
Num. of holes : 7
Solid or Vented : V -

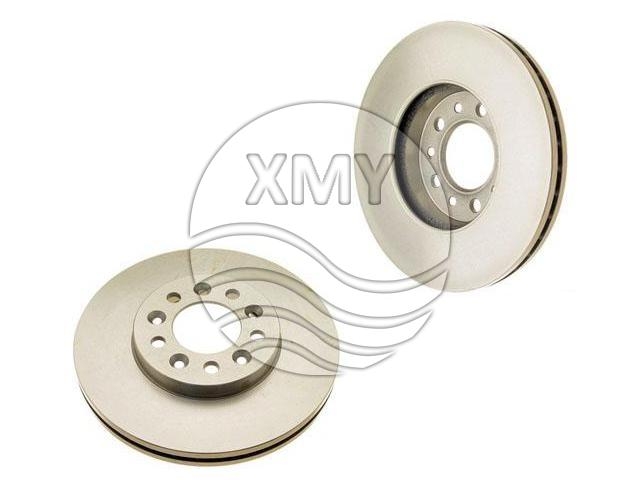

Ref.:XF2Z-1125-AA
Front Axle
Height : 46.5 mm
Diameter : 281.4 mm
Centering Diameter : 71.1 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.7 mm
Num. of holes : 5
Solid or Vented : V -

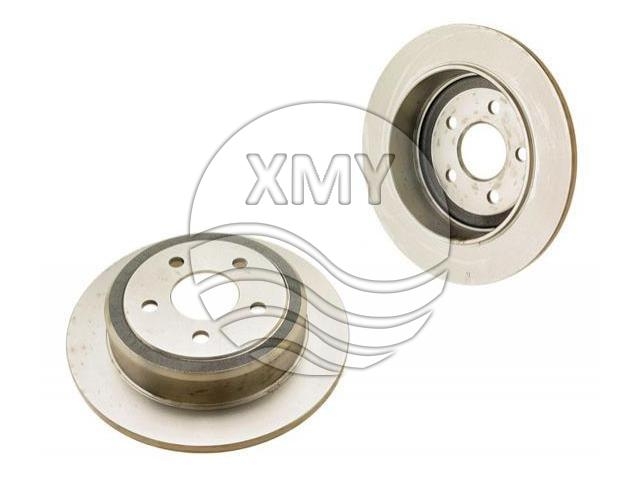

Ref.:F58Z-2C026-CA
Rear Axle
Height : 61.5 mm
Diameter : 284.2 mm
Centering Diameter : 64.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11.9 mm
Minimum Thickness : 10.4 mm
Num. of holes : 5
Solid or Vented : S -

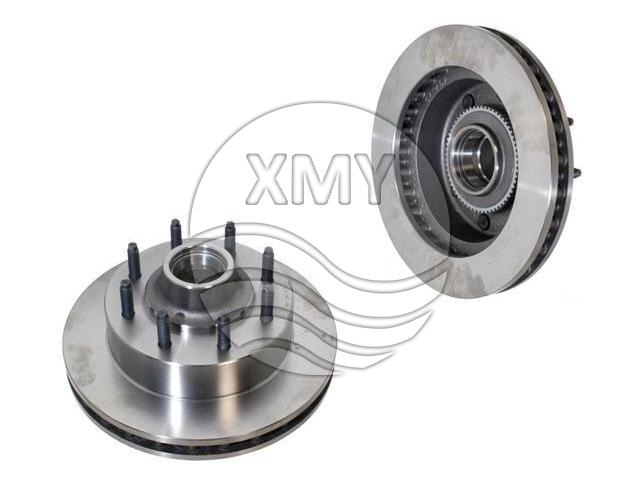

Front Axle
Height : 143.5 mm
Diameter : 331 mm
Pitch Circle Diameter : 170 mm
Brake Disc Thickness : 38 mm
Minimum Thickness : 36 mm
Num. of holes : 8
Solid or Vented : V -

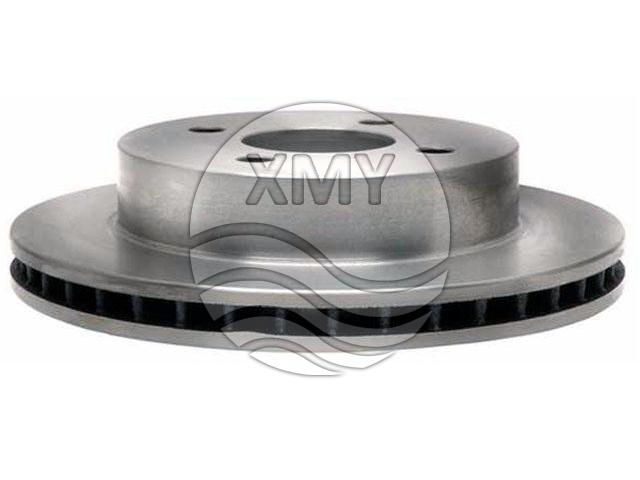

Ref.:F3ZZ-2C026-A
Rear Axle
Height : 59 mm
Diameter : 258 mm
Centering Diameter : 64.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.8 mm
Num. of holes : 4
Solid or Vented : DV -

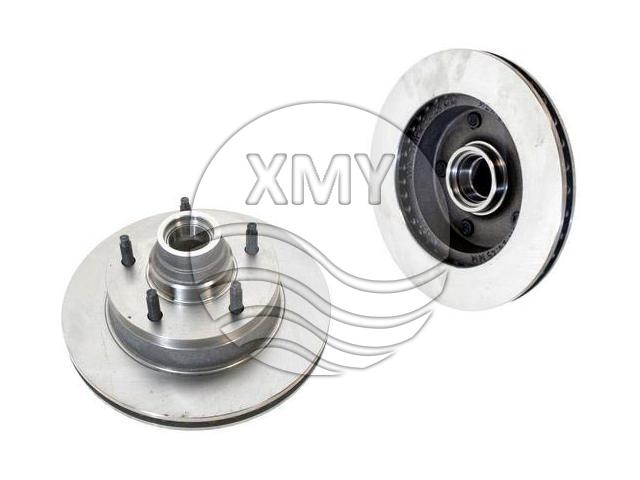

Ref.:F5TZ-1102-SA
Front Axle
Height : 133.4 mm
Diameter : 297.7 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.5 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 54.4 mm
Diameter : 325 mm
Centering Diameter : 79.2 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 29 mm
Minimum Thickness : 27.4 mm
Num. of holes : 6
Solid or Vented : V
