Front Axle
Height : 33.4 mm
Diameter : 255 mm
Pitch Circle Diameter : 104 mm
Brake Disc Thickness : 20.1 mm
Minimum Thickness : 18.4 mm
Num. of holes : 6
Solid or Vented : S
Weight : 5.8 kg -
Ref.:E0TZ-1102-K
Front Axle
Height : 142.9 mm
Diameter : 319.1 mm
Pitch Circle Diameter : 165.1 mm
Brake Disc Thickness : 31.6 mm
Minimum Thickness : 30 mm
Num. of holes : 8
Solid or Vented : V -
Front Axle
Height : 45.5 mm
Diameter : 276.1 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.4 mm
Num. of holes : 4
Solid or Vented : V -
Ref.:10377634
Rear Axle
Height : 34.5 mm
Diameter : 300 mm
Centering Diameter : 70.7 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10.5 mm
Num. of holes : 6
Solid or Vented : S
Weight : 5.8 kg -

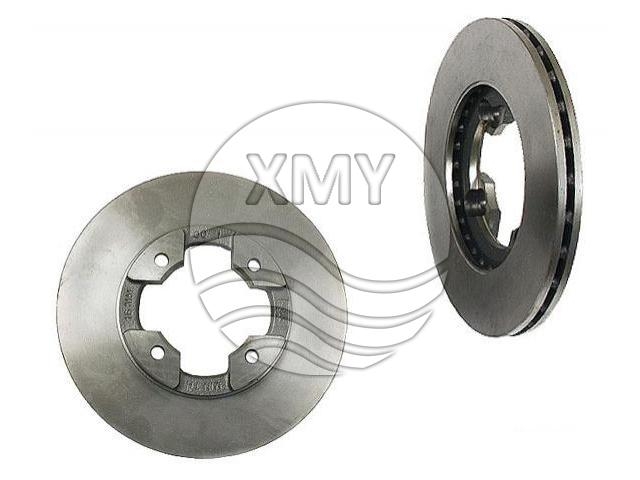

Ref.:40206-D0360
Front Axle
Height : 31.5 mm
Diameter : 231.9 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 103 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 16 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.7 kg -
Front Axle
Height : 38.1 mm
Diameter : 260.8 mm
Centering Diameter : 61.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20.4 mm
Num. of holes : 4
Solid or Vented : V -
Front Axle
Height : 139.7 mm
Diameter : 324.6 mm
Pitch Circle Diameter : 165.1 mm
Brake Disc Thickness : 30.1 mm
Minimum Thickness : 28.4 mm
Num. of holes : 8
Solid or Vented : V -
Rear Axle
Height : 71.8 mm
Diameter : 235.7 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 10.2 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S -
Front Axle
Height : 90.5 mm
Diameter : 250 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V -

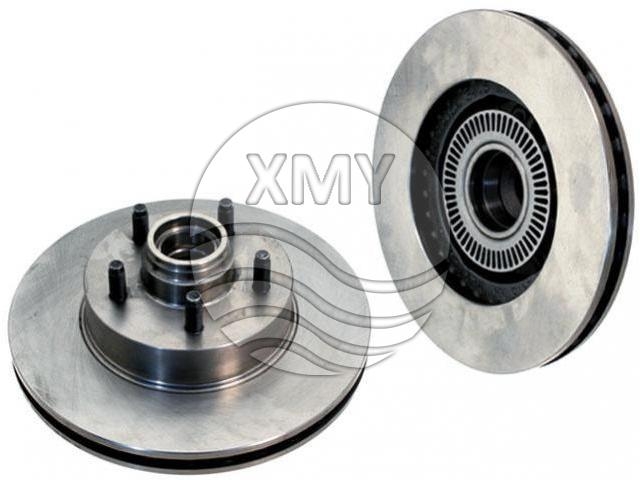

Ref.:ZZP3-33-251
Front Axle
Height : 108 mm
Diameter : 286.5 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.5 mm
Num. of holes : 5
Solid or Vented : V
