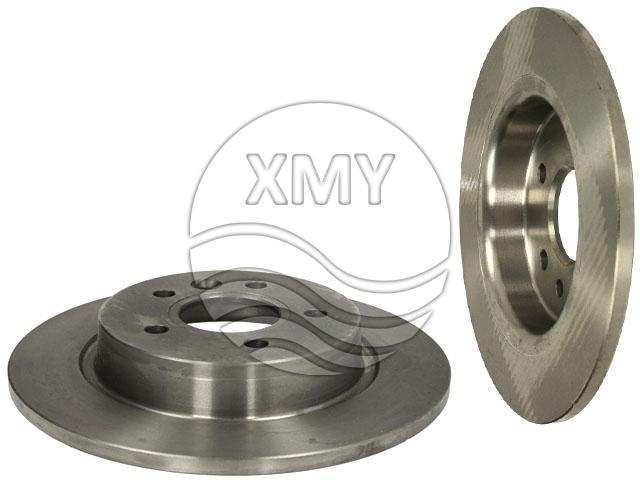

Ref.:31341645
Rear Axle
Height : 40.9 mm
Diameter : 280 mm
Centering Diameter : 63.6 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9 mm
Number Of Holes : 5
Solid Or Vented : S
Weight : 4.4 kg -
Ref.:31381375
Front Axle
Height : 48.5 mm
Diameter : 300 mm
Centering Diameter : 63.6 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 7.4 kg -

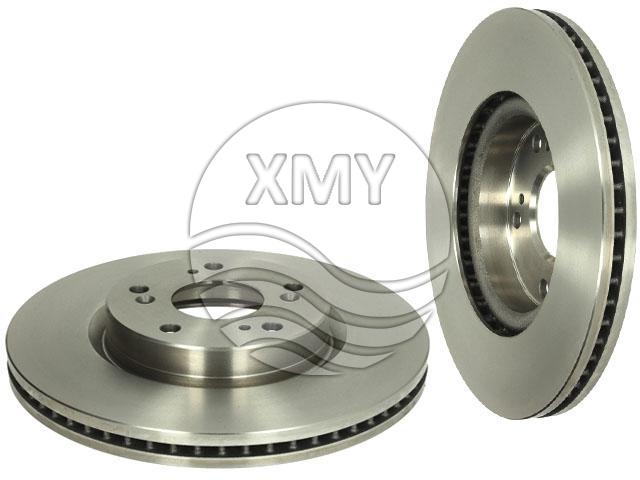

Ref.:45251-TV2E00
Front Axle
Height : 47.3 mm
Diameter : 293 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 7.4 kg -

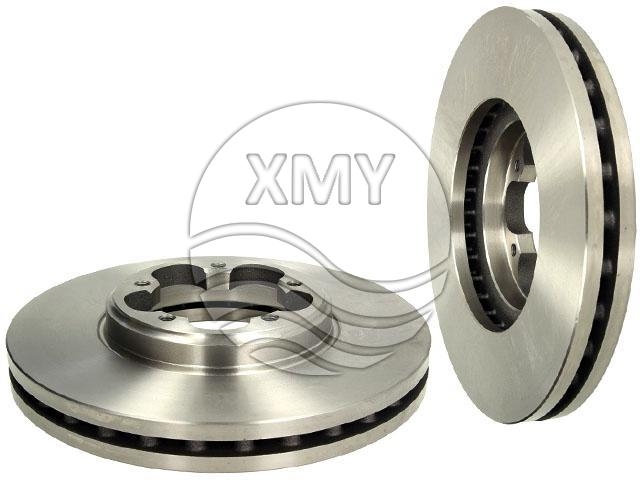

Ref.:1763885
Height : 55.5 mm
Diameter : 288 mm
Centering Diameter : 93.1 mm
Pitch Circle Diameter : 111.5 mm
Brake Disc Thickness : 33 mm
Minimum Thickness : 30 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 9.7 kg -
Ref.:1764283
Rear Axle
Height : 68.8 mm
Diameter : 288 mm
Centering Diameter : 96.05 mm
Pitch Circle Diameter : 160 mm
Brake Disc Thickness : 16 mm
Minimum Thickness : 13 mm
Number Of Holes : 5
Solid Or Vented : S
Weight : 8.7 kg -
Rear Axle
Height : 62 mm
Diameter : 274 mm
Centering Diameter : 58 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.5 mm
Number Of Holes : 5
Solid Or Vented : S
Weight : 4.6 kg -

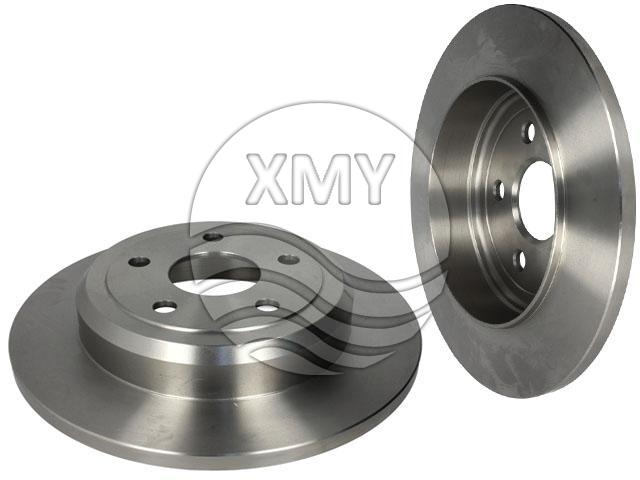

Ref.:52124763AB
Rear Axle
Height : 55.9 mm
Diameter : 330 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 14 mm
Minimum Thickness : 12.5 mm
Number of Holes : 5
Solid Or Vented : S
Weight : 8.25 kg -
Ref.:MR249605
Front Axle
Height : 41 mm
Diameter : 208 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 9 mm
Number of Holes : 4
Solid Or Vented : V -
Rear Axle
Height : 47.7 mm
Diameter : 238.8 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 8 mm
Number of Holes : 4
Solid Or Vented : S -
Ref.:55311-68H20
Front Axle
Height : 44.2 mm
Diameter : 215.1 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 17 mm
Minimum Thickness : 15 mm
Number of Holes : 4
Solid Or Vented : V
