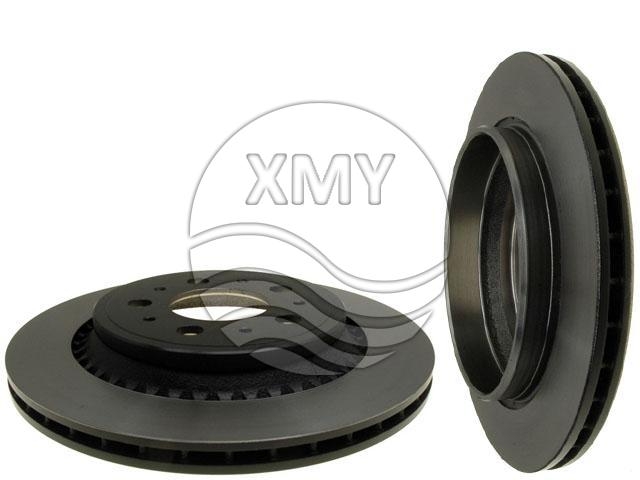

Ref.:8617026
Rear Axle
Height : 62 mm
Diameter : 288 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Number of Holes : 5
Solid or Vented : V -
Front Axle
Height : 53.9 mm
Diameter : 292.8 mm
Centering Diameter : 114 mm
Pitch Circle Diameter : 140 mm
Brake Disc Thickness : 40 mm
Minimum Thickness : 38 mm
Number of Holes : 6
Solid or Vented : V -
Rear Axle
Height : 71 mm
Diameter : 293 mm
Centering Diameter : 124 mm
Pitch Circle Diameter : 144 mm
Brake Disc Thickness : 40 mm
Minimum Thickness : 37 mm
Number of Holes : 12
Solid or Vented : V -

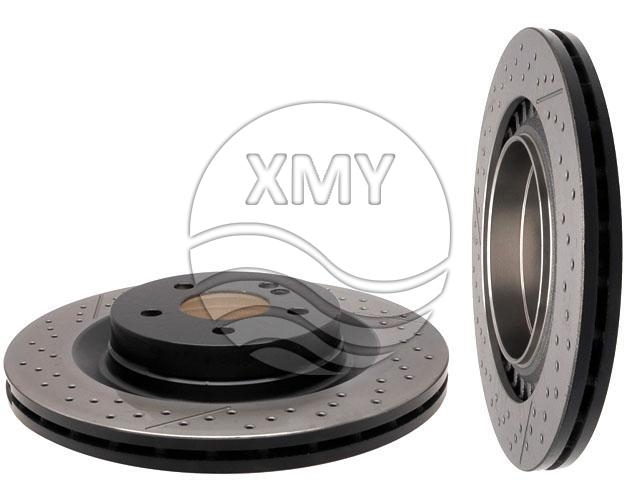

Ref.:204 423 04 12
Rear Axle
Height : 57 mm
Diameter : 330 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24 mm
Number Of Holes : 5
Solid or Vented : V -

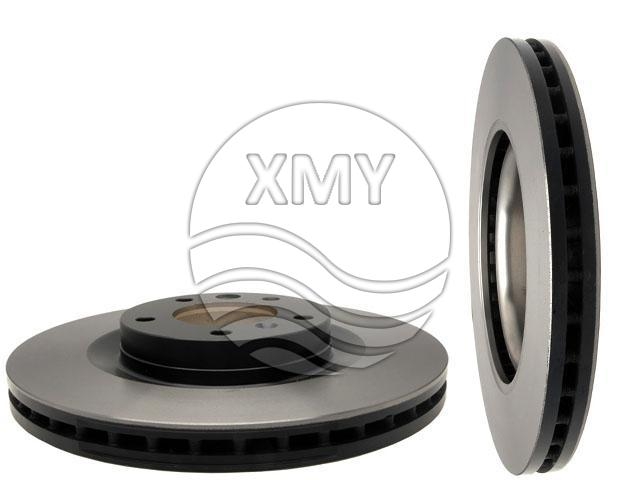

Ref.:463 421 0412
Front Axle
Height : 58mm
Diameter : 350 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 29.4 mm
Solid or Vented : V -

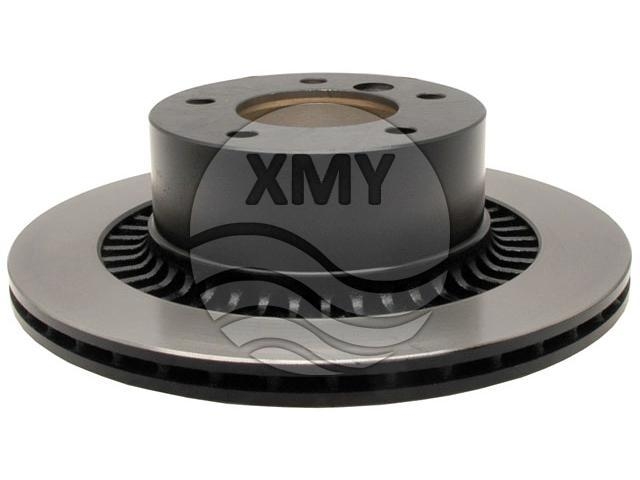

Ref.:463 423 00 12
Rear Axle
Height : 92 mm
Diameter : 330 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V -

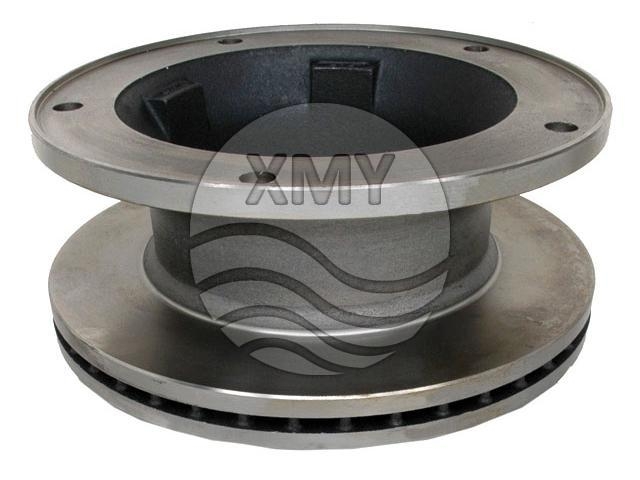

Ref.:1648518C1
Front Axle
Height : 150 mm
Diameter : 381 mm
Pitch Circle Diameter : 323.85 mm
Brake Disc Thickness : 36.5 mm
Minimum Thickness : 33.5 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 86.2 mm
Diameter : 390.7 mm
Centering Diameter : 152.4 mm
Pitch Circle Diameter : 184.15 mm
Brake Disc Thickness : 39 mm
Minimum Thickness : 36.5 mm
Num. of holes : 10
Solid or Vented : V -
Rear Axle
Height : 51 mm
Diameter : 280 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S -
Ref.:45251-TX4-A00
Front Axle
Height : 47.2 mm
Diameter : 312 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
