Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-
Ref.:43512-22120
Rear Axle
Height : 68.2 mm
Diameter : 256 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:43512-14120
Front Axle
Height : 53.8 mm
Diameter : 301.8 mm
Centering Diameter : 60.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 21 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.75 kg -
Front Axle
Height : 45.1 mm
Diameter : 256.2 mm
Centering Diameter : 69.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V -

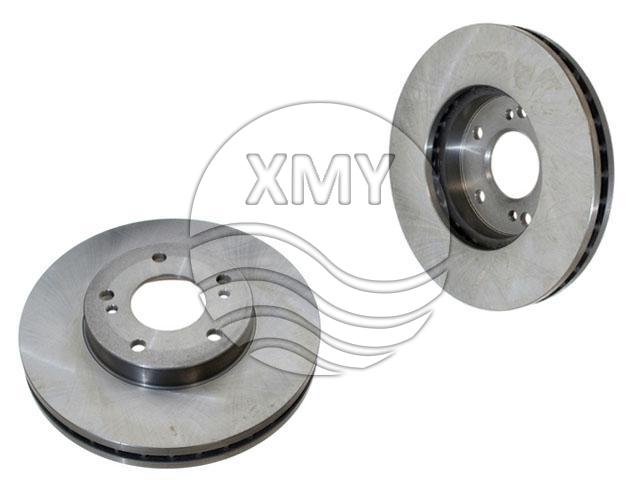

Ref.:40206-37P02
Front Axle
Height : 53.6 mm
Diameter : 280.2 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.15 kg -

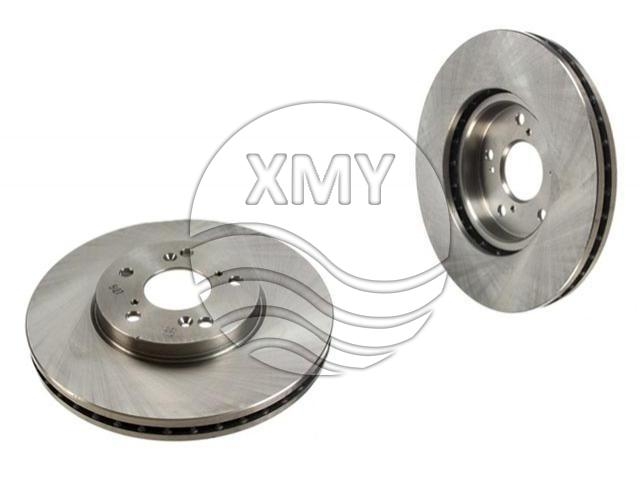

Ref.:45251-S0X-000
Front Axle
Height : 47.1 mm
Diameter : 300 mm
Centering Diameter : 64.2 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.1 kg -
Front Axle
Height : 44.3 mm
Diameter : 266 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20.4 mm
Num. of holes : 4
Solid or Vented : V -
Rear Axle
Height : 41 mm
Diameter : 280 mm
Centering Diameter : 90 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10.4 mm
Num. of holes : 4
Solid or Vented : S -
Ref.:40206-21T01
Front Axle
Height : 55 mm
Diameter : 281.8 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 7.5 mm
Num. of holes : 5
Solid or Vented : S -
Rear Axle
Height : 64.9 mm
Diameter : 288 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.4 mm
Num. of holes : 5
Solid or Vented : S -

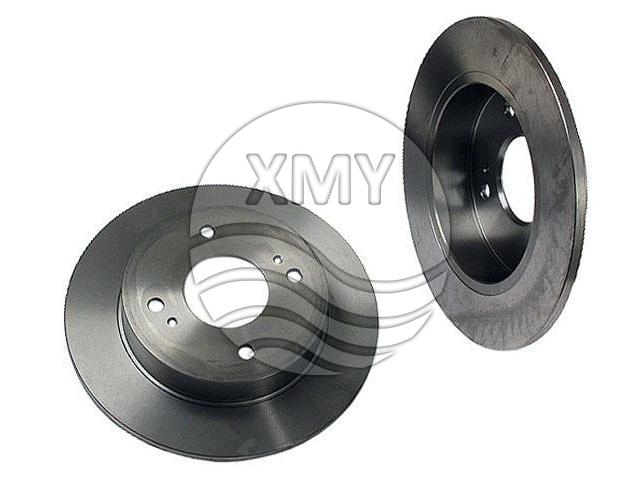

Ref.:43206-42R02
Rear Axle
Height : 44.8 mm
Diameter : 258.3 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.6 kg
