Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-
Ref.:26700-AE030
Rear Axle
Height : 68 mm
Diameter : 290 mm
Centering Diameter : 58 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 16 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:26700-AE062
Rear Axle
Height : 67.5 mm
Diameter : 290 mm
Centering Diameter : 58 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.5 mm
Solid or Vented : S -
Ref.:55211-65J00
Front Axle
Height : 49 mm
Diameter : 294.4 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24.9 mm
Minimum Thickness : 23.1 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.7 kg -
Ref.:FC01-26-251
Rear Axle
Height : 53 mm
Diameter : 261 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S -
Ref.:MB857763
Rear Axle
Height : 41 mm
Diameter : 236 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3 kg -
Rear Axle
Height : 46.5 mm
Diameter : 245 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.4 kg -

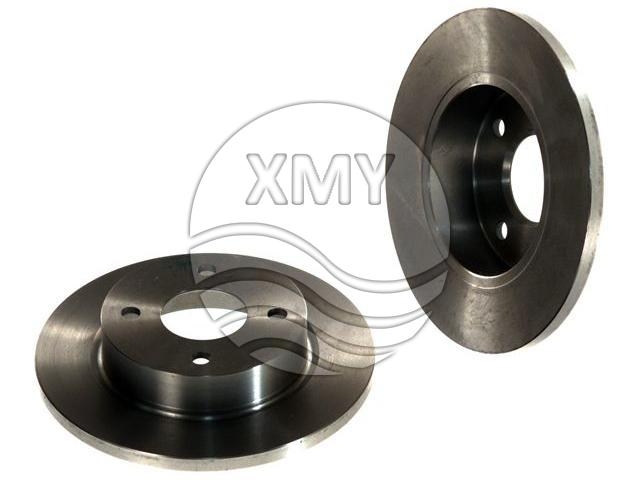

Ref.:40206-5F003
Front Axle
Height : 45.2 mm
Diameter : 234 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.5 kg -
Ref.:43512-12230
Front Axle
Height : 48.2 mm
Diameter : 238 mm
Centering Diameter : 54.1 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 11 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.6 kg -

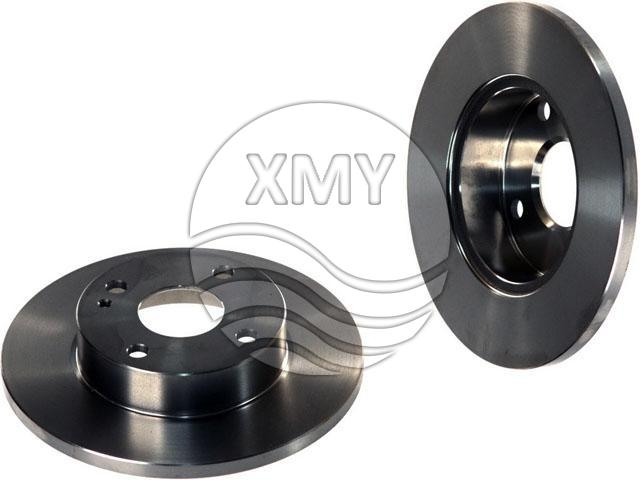

Ref.:DB0Y-33-251
Front Axle
Height : 45 mm
Diameter : 234.5 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.4 kg -

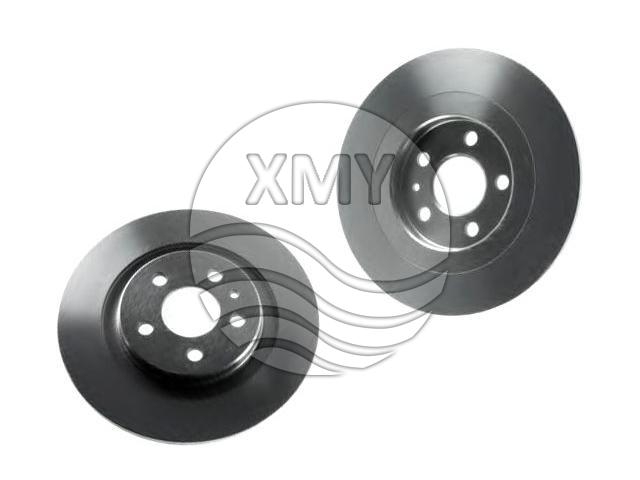

Ref.:4246.P3
Rear Axle
Height : 28 mm
Diameter : 272 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.2 kg
