Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-
Front Axle
Height : 47.9 mm
Diameter : 238 mm
Centering Diameter : 54 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 21 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.3 kg -
Ref.:14087811
Rear Axle
Height : 25 mm
Diameter : 256.4 mm
Centering Diameter : 70.8 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 12.5 mm
Minimum Thickness : 11 mm
Num. of holes : 5
Solid or Vented : S -
Ref.:77 00 758 195

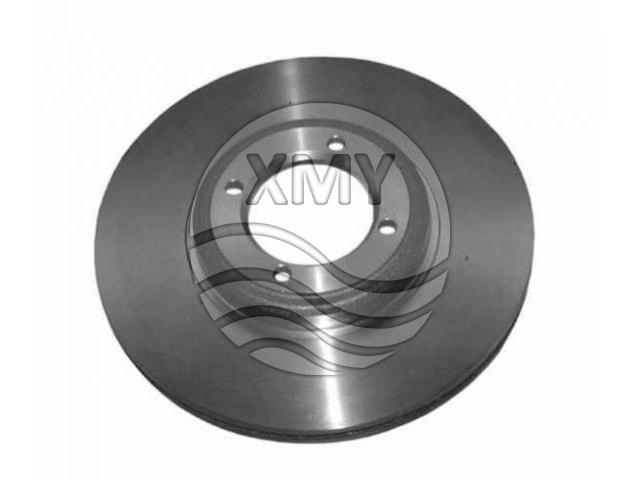

Rear Axle
Height : 72 mm
Diameter : 238 mm
Centering Diameter : 52 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 8 mm
Minimum Thickness : 7 mm
Num. of holes : 4
Solid or Vented : S -
Ref.:79 10 007 377
Front Axle
Height : 43 mm
Diameter : 273 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.25 kg -
Ref.:SA39-33-251A
Front Axle
Height : 20 mm
Diameter : 268 mm
Centering Diameter : 86 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 6
Solid or Vented : V
Weight : 4.4 kg -
Ref.:34 11 1 163 130

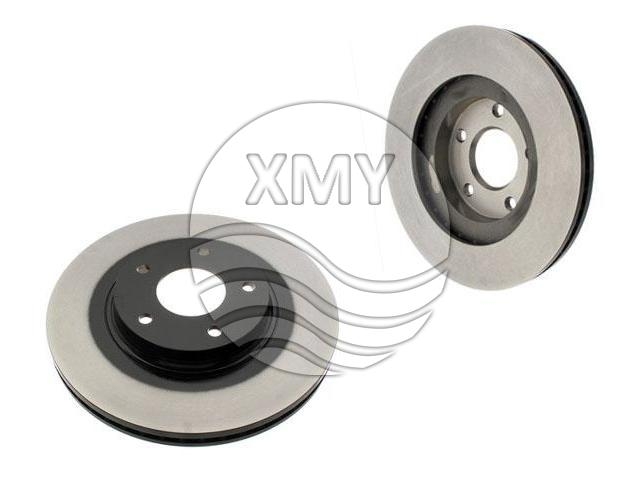

Front Axle
Height : 78 mm
Diameter : 280 mm
Centering Diameter : 74 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6 kg -
Ref.:40206-AL500
Front Axle
Height : 49.9 mm
Diameter : 296 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.8 kg -
Front Axle
Height : 33.3 mm
Diameter : 257.5 mm
Centering Diameter : 84 mm
Pitch Circle Diameter : 104 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.2 kg -
Rear Axle
Height : 64 mm
Diameter : 313 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S -
Front Axle
Height : 47 mm
Diameter : 296 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
