Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-
Front Axle
Height : 39.5 mm
Diameter : 256 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 4
Solid or Vented : V -
Front Axle
Height : 56.5 mm
Diameter : 276 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 24.9 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7 kg -

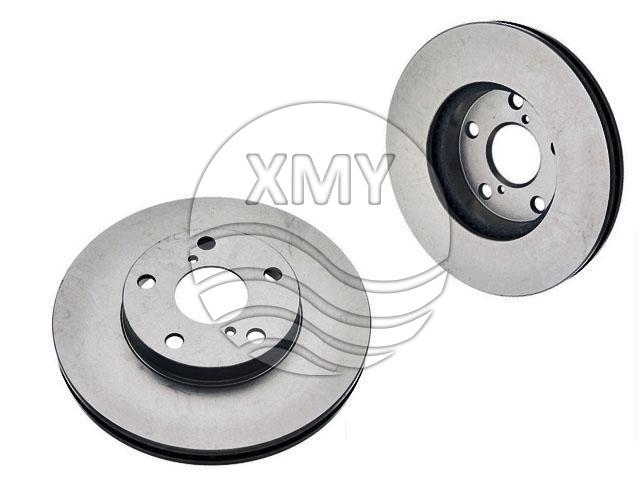

Ref.:43512-42030
Front Axle
Height : 49.3 mm
Diameter : 275 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.3 kg -

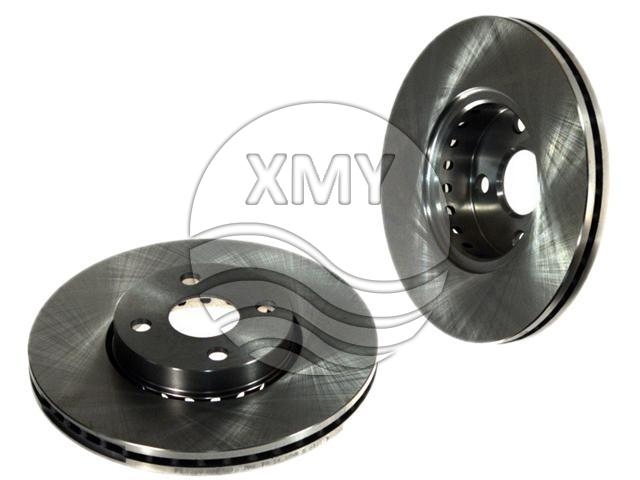

Ref.:43512-13022
Front Axle
Height : 49.2 mm
Diameter : 275 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 4
Solid or Vented : V
Weight : 7 kg -

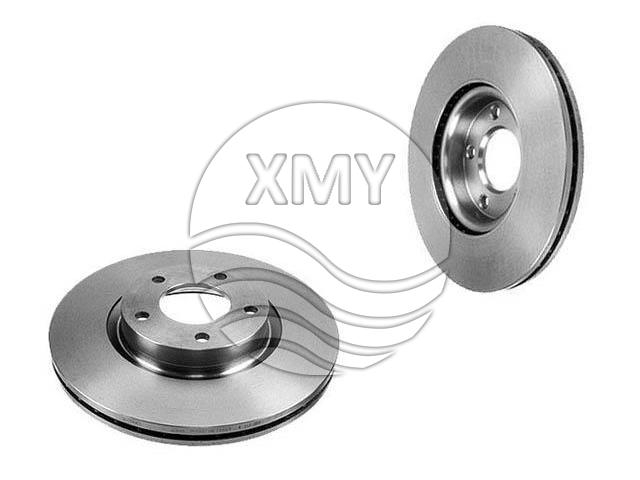

Ref.:BP6Y-33-25XD
Front Axle
Height : 48.5 mm
Diameter : 300 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.1 kg -

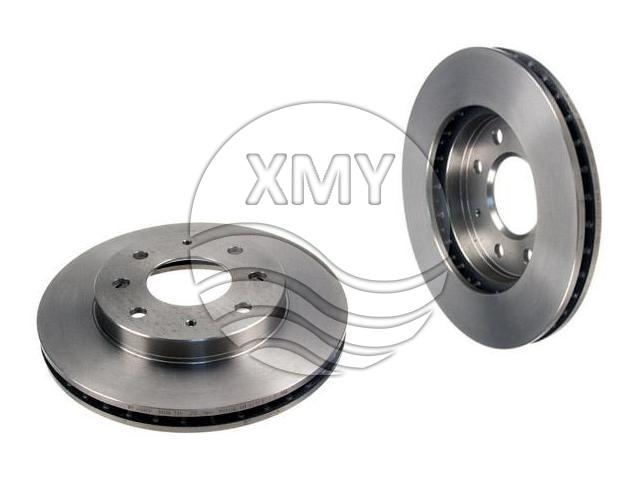

Ref.:MB950570
Front Axle
Height : 45.3 mm
Diameter : 256 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22.4 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.9 kg -

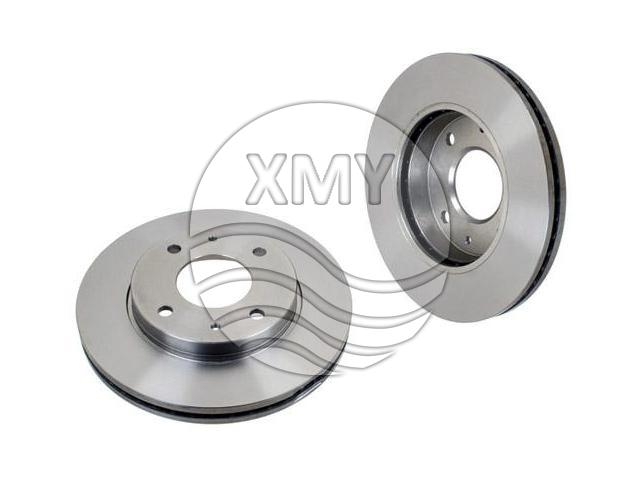

Ref.:51712-3C000
Front Axle
Height : 47.4 mm
Diameter : 257 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24.5 mm
Minimum Thickness : 22.4 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.9 kg -
Front Axle
Height : 56.5 mm
Diameter : 256 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.1 kg -

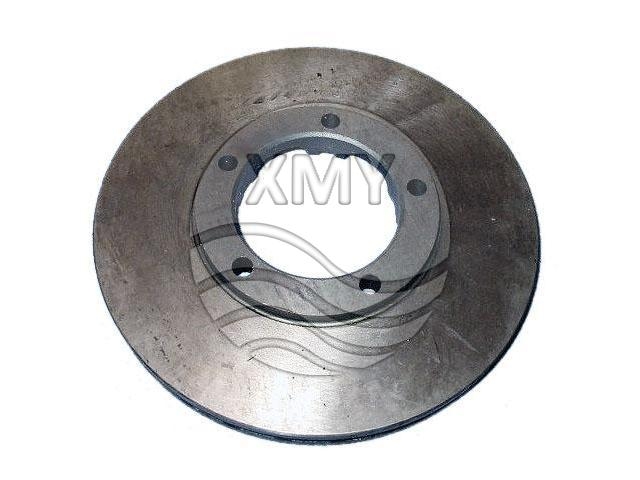

Ref.:MB150810
Front Axle
Height : 33.5 mm
Diameter : 255.5 mm
Centering Diameter : 84 mm
Pitch Circle Diameter : 104 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.4 mm
Num. of holes : 5
Solid or Vented : V -

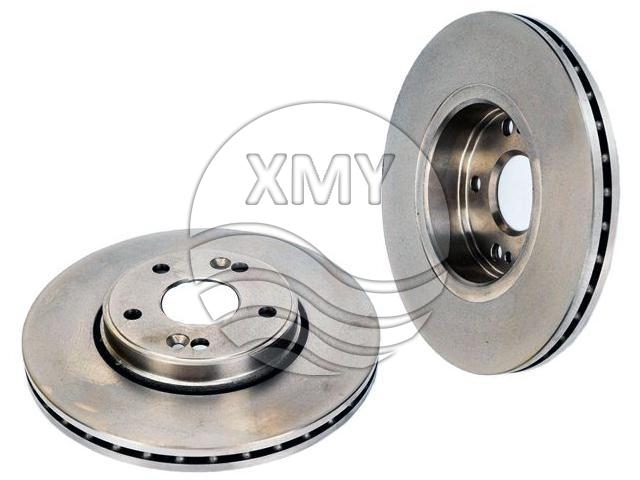

Ref.:77 01 206 613
Front Axle
Height : 46.9 mm
Diameter : 280 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 21.8 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.2 kg
