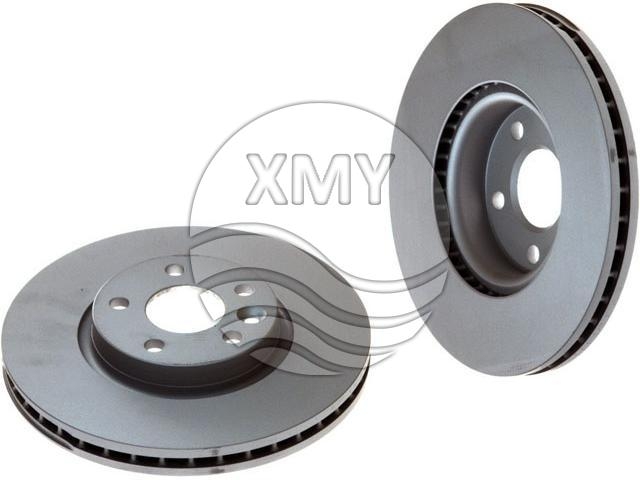

Ref.:31202331
Front Axle
Height : 52.3 mm
Diameter : 300 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.7 kg -
Ref.:34 11 6 750 267
Front Axle
Height : 81 mm
Diameter : 348 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 28.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 11.4 kg -
Front Axle
Height : 77.1 mm
Diameter : 348 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 28.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10.1 kg -
Ref.:34 21 1 166 129
Rear Axle
Height : 67 mm
Diameter : 345 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.5 kg -
Rear Axle
Height : 63.2 mm
Diameter : 345 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:34 21 6 752 545
Rear Axle
Height : 75 mm
Diameter : 280 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.4 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.7 kg -
Front Axle
Height : 49.8 mm
Diameter : 355 mm
Centering Diameter : 70.9 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30 mm
Num. of holes : 6
Solid or Vented : V -

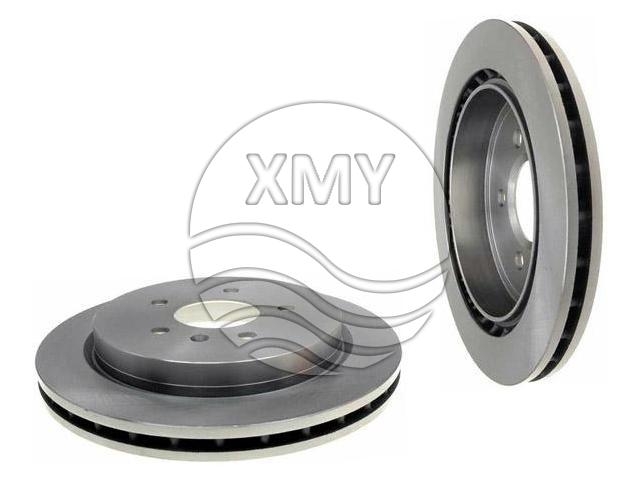

Ref.:25693146
Rear Axle
Height : 48 mm
Diameter : 298 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 45 mm
Diameter : 365 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 6
Solid or Vented : V -
Front Axle
Height : 144 mm
Diameter : 345 mm
Centering Diameter : 123.8 mm
Pitch Circle Diameter : 165.1 mm
Brake Disc Thickness : 40 mm
Minimum Thickness : 38.4 mm
Num. of holes : 8
Solid or Vented : V
