Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-
Ref.:10445858
Rear Axle
Height : 48.4 mm
Diameter : 304.8 mm
Centering Diameter : 70.9 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.5 mm
Num. of holes : 5
Solid or Vented : DV -
Ref.:5L3Z-1102-AB
Front Axle
Height : 92 mm
Diameter : 329.9 mm
Pitch Circle Diameter : 135 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28.5 mm
Num. of holes : 6
Solid or Vented : V
Weight : 16.7 kg -
Ref.:8-15684-318-0
Front Axle
Height : 51.2 mm
Diameter : 266.7 mm
Centering Diameter : 70.9 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 26.3 mm
Minimum Thickness : 24.3 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:18026591
Front Axle
Height : 52 mm
Diameter : 302.8 mm
Centering Diameter : 70.6 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 32.3 mm
Minimum Thickness : 30.7 mm
Num. of holes : 5
Solid or Vented : V -

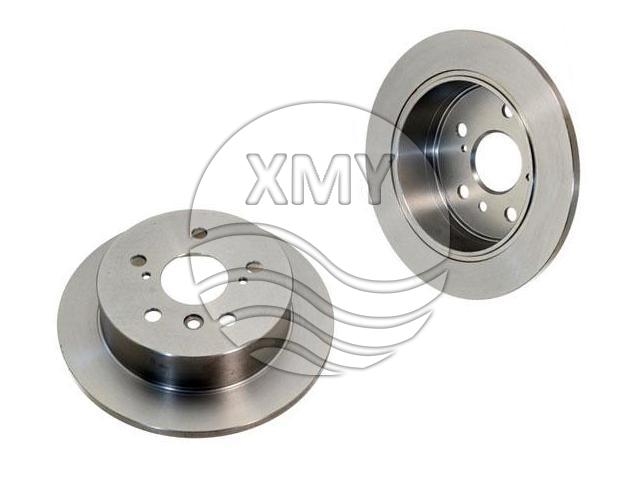

Ref.:42431-06051
Rear Axle
Height : 64.8 mm
Diameter : 269 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10.5 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.9 kg -
Front Axle
Height : 50.8 mm
Diameter : 302.8 mm
Centering Diameter : 70.6 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28.7 mm
Num. of holes : 5
Solid or Vented : V -

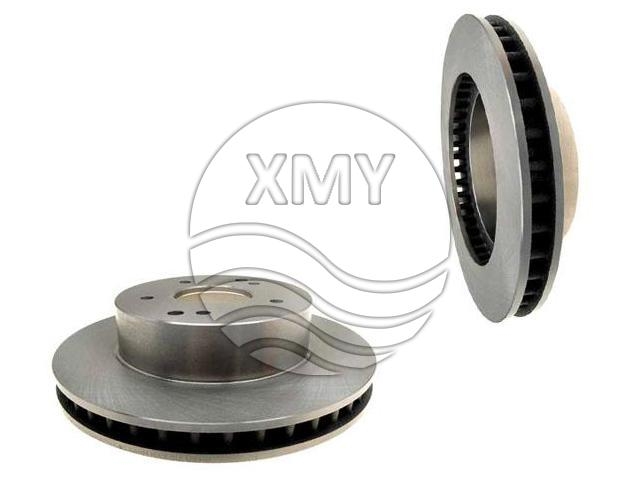

Ref.:3996663
Rear Axle
Height : 78.5 mm
Diameter : 298.5 mm
Centering Diameter : 71.6 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 31.8 mm
Minimum Thickness : 31 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 38.1 mm
Diameter : 254.4 mm
Centering Diameter : 70.6 mm
Pitch Circle Diameter : 115.1 mm
Brake Disc Thickness : 12.5 mm
Minimum Thickness : 10.9 mm
Num. of holes : 5
Solid or Vented : S -
Ref.:474347
Front Axle
Height : 117.9 mm
Diameter : 279.8 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 26.3 mm
Minimum Thickness : 24.5 mm
Num. of holes : 5
Solid or Vented : V -

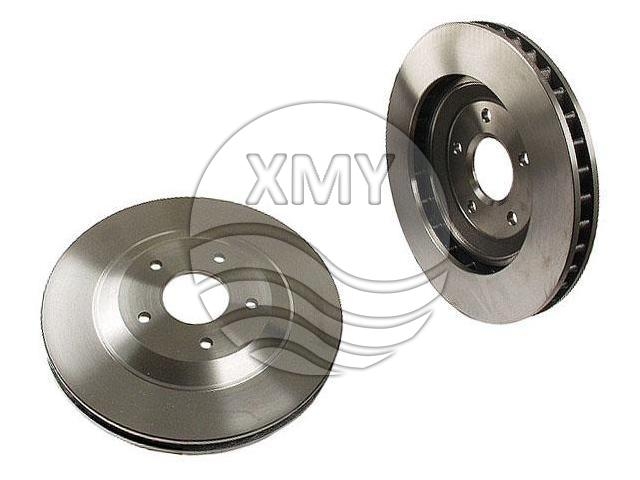

Ref.:10445857
Front Axle
Height : 45.5 mm
Diameter : 325.1 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30.3 mm
Num. of holes : 5
Solid or Vented : DV
