Rear Axle
Height : 57 mm
Diameter : 308 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 16 mm
Minimum Thickness : 14 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.02 kg -
Front Axle
Height : 49.5 mm
Diameter : 276 mm
Centering Diameter : 96 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7 kg -
Ref.:970.352.403.00
Rear Axle, Left
Height : 75 mm
Diameter : 330 mm
Centering Diameter : 98 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10.6 kg -
Ref.:970.352.404.00
Rear Axle, Right
Height : 75 mm
Diameter : 330 mm
Centering Diameter : 98 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10.6 kg -
Ref.:60 01 539 659
Front Axle
Height : 51 mm
Diameter : 235.5 mm
Centering Diameter : 61 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.1 kg -
Ref.:7P6 615 301
Front Axle, Left
Height : 68.5 mm
Diameter : 360 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34 mm
Num. of holes : 5
Solid or Vented : V
Weight : 13.2 kg -
Ref.:7P6 615 302
Front Axle, Right
Height : 68.5 mm
Diameter : 360 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34 mm
Num. of holes : 05/06
Solid or Vented : V
Weight : 13.2 kg -

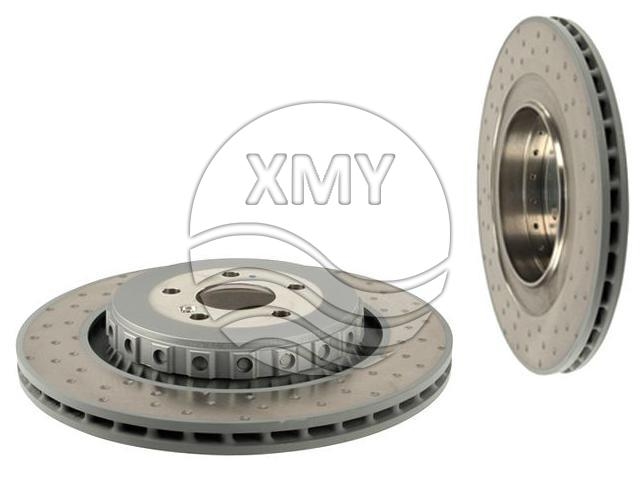

Ref.:221 423 08 12
Rear Axle
Height : 55.5 mm
Diameter : 365 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 23.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 11.8 kg -
Front Axle
Height : 48.5 mm
Diameter : 256 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 48.5 mm
Diameter : 276 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 27 mm
Minimum Thickness : 25.4 mm
Num. of holes : 6
Solid or Vented : V
