Ref.:669 421 05 12
Front Axle
Height : 111 mm
Diameter : 324 mm
Centering Diameter : 184 mm
Pitch Circle Diameter : 205 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 26 mm
Num. of holes : 6
Solid or Vented : V
Weight : 11.46 kg -

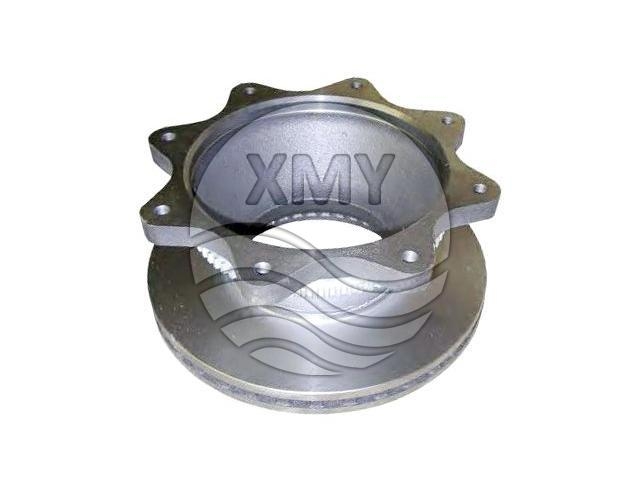

Ref.:67968644
Rear Axle
Height : 138 mm
Diameter : 322 mm
Centering Diameter : 216 mm
Pitch Circle Diameter : 275 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 27 mm
Num. of holes : 8
Solid or Vented : V
Weight : 15.7 kg -
Ref.:50 00 545 242
Front Axle
Height : 82 mm
Diameter : 354 mm
Centering Diameter : 128 mm
Pitch Circle Diameter : 151 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 26 mm
Num. of holes : 10/10
Solid or Vented : V
Weight : 14 kg -
Front Axle
Height : 47.2 mm
Diameter : 300 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.2 kg -
Front Axle
Height : 44 mm
Diameter : 276 mm
Centering Diameter : 95 mm
Pitch Circle Diameter : 114 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 10
Solid or Vented : V
Weight : 6.85 kg -
Ref.:42431-87717
Rear Axle
Height : 36.9 mm
Diameter : 231.5 mm
Centering Diameter : 56 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 8 kg -
Ref.:42431-20290
Rear Axle
Height : 59.6 mm
Diameter : 315 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 16.0 mm
Minimum Thickness : 15 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.7 kg -
Ref.:HB699287
Rear Axle
Height : 41 mm
Diameter : 260 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.55 kg -
Rear Axle
Height : 63 mm
Diameter : 275 mm
Centering Diameter : 88.5 mm
Pitch Circle Diameter : 104.8 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.96 kg -
Ref.:1 335 684
Front Axle
Height : 45 mm
Diameter : 278 mm
Centering Diameter : 63.6 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 4
Solid or Vented : V
