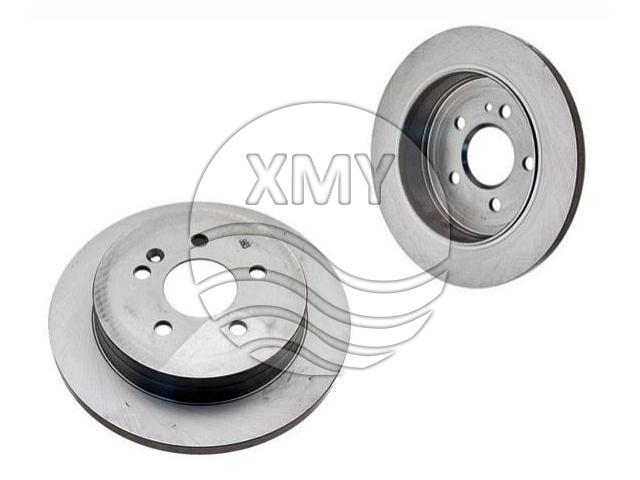

Ref.:163 421 01 12
Rear Axle
Height : 55.5 mm
Diameter : 285 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 15.0 mm
Minimum Thickness : 13 mm
Num. of holes : 5
Solid or Vented : S
Weight : 6 kg -

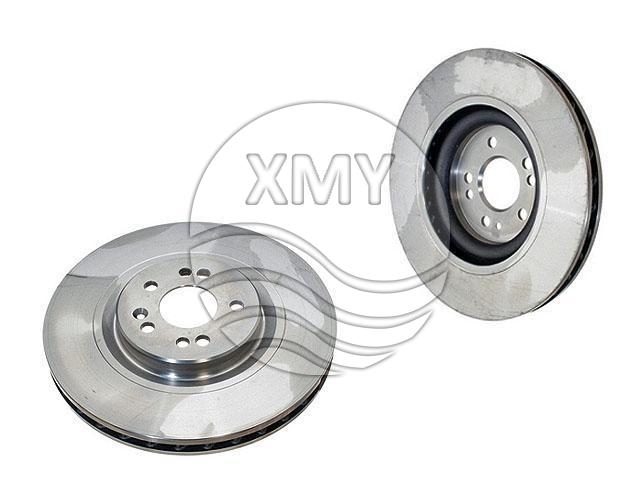

Ref.:163 421 03 12
Front Axle
Height : 51 mm
Diameter : 345 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 31.9 mm
Minimum Thickness : 30 mm
Num. of holes : 5
Solid or Vented : V
Weight : 11.3 kg -

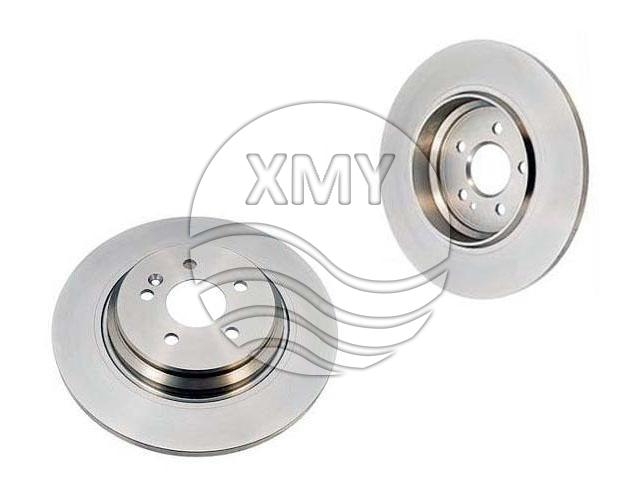

Ref.:163 423 00 12
Rear Axle
Height : 55.3 mm
Diameter : 331 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 13.9 mm
Minimum Thickness : 12.3 mm
Num. of holes : 5
Solid or Vented : S -

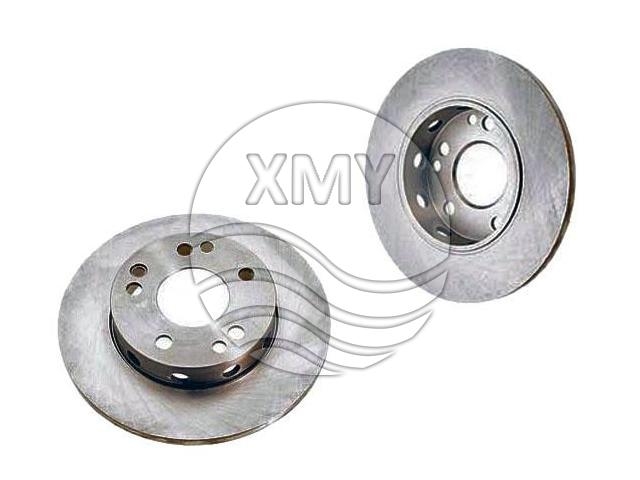

Ref.:201 421 12 12
Front Axle
Height : 45.5 mm
Diameter : 262 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 11.0 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 3.8 kg -

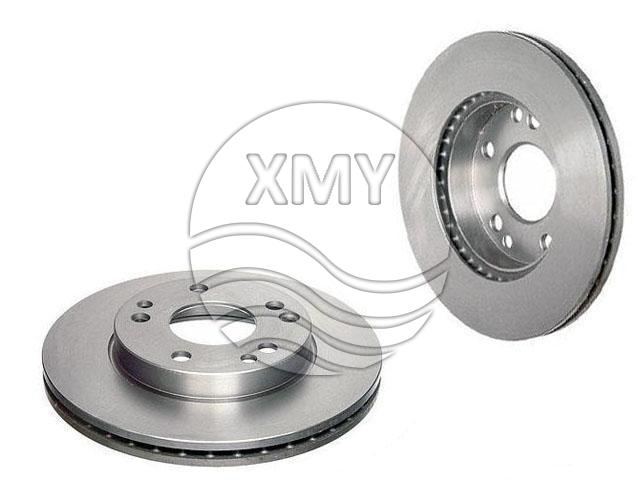

Ref.:201 421 13 12
Front Axle
Height : 44.5 mm
Diameter : 262 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.1 kg -

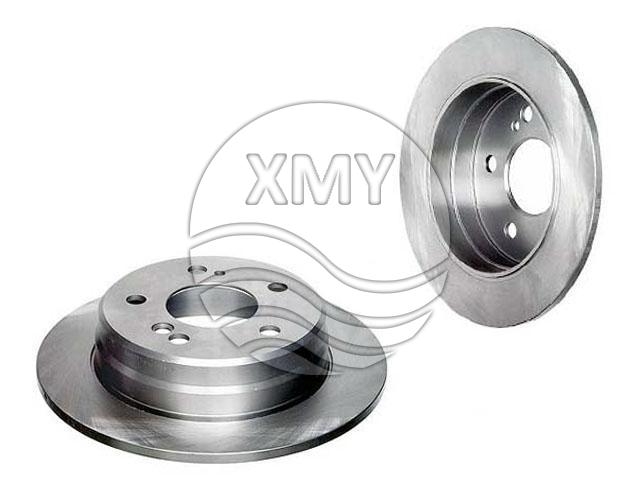

Ref.:201 423 09 12
Rear Axle
Height : 55.5 mm
Diameter : 258 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 7.3 mm
Num. of holes : 5
Solid or Vented : S
Weight : 3.2 kg -

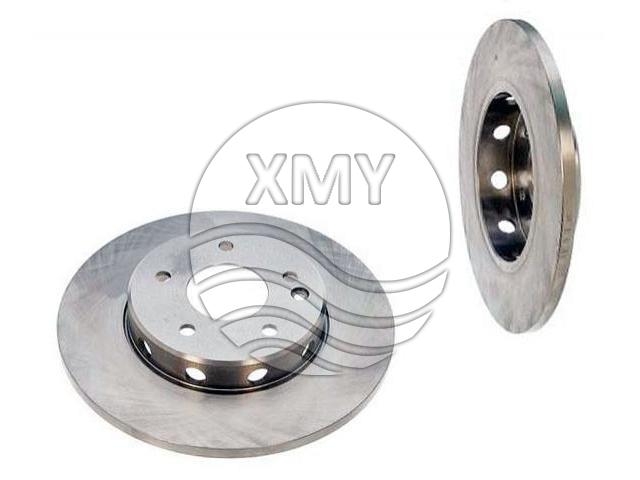

Ref.:202 421 02 12
Front Axle
Height : 43.7 mm
Diameter : 284 mm
Centering Diameter : 67.1 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 11.9 mm
Minimum Thickness : 10.2 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.75 kg -

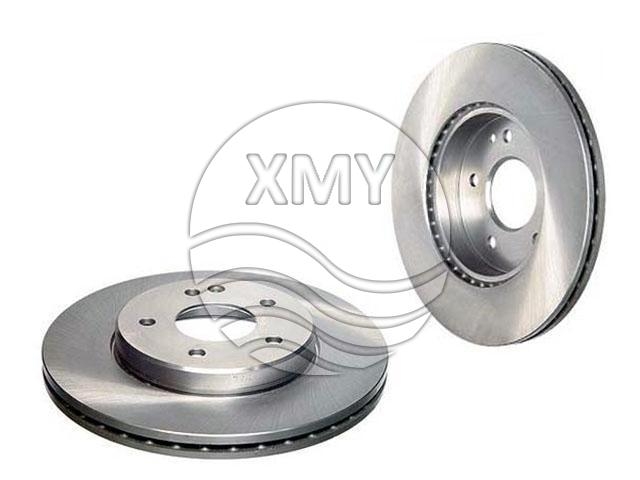

Ref.:202 421 09 12
Front Axle
Height : 43.5 mm
Diameter : 284 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6 kg -

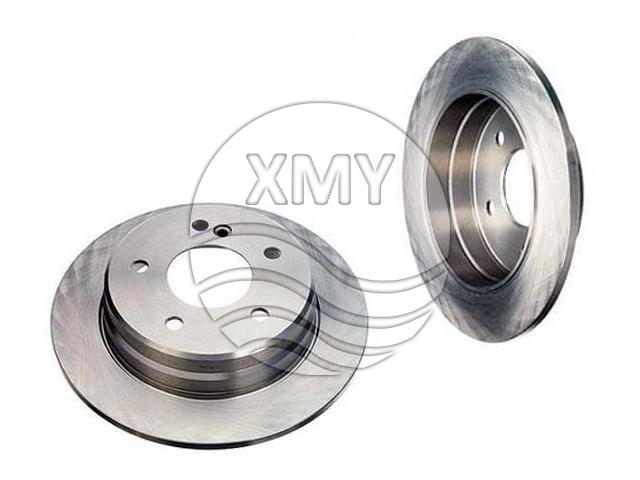

Ref.:202 423 00 12
Rear Axle
Height : 55.5 mm
Diameter : 258 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 7.3 mm
Num. of holes : 5
Solid or Vented : S
Weight : 3.2 kg -

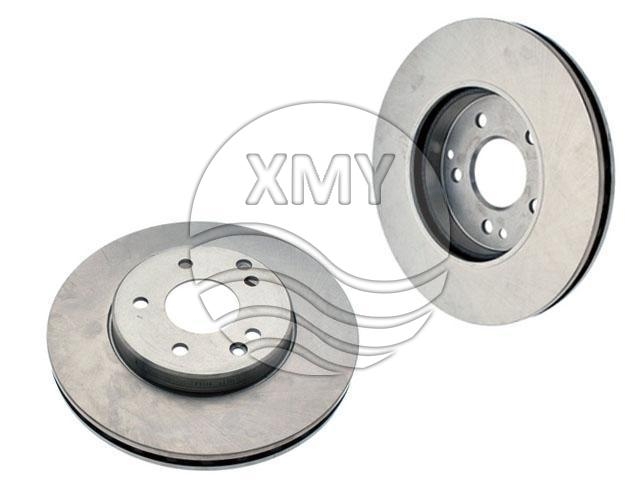

Ref.:203 421 03 12
Front Axle
Height : 46.5 mm
Diameter : 288 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.3 kg
