Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-

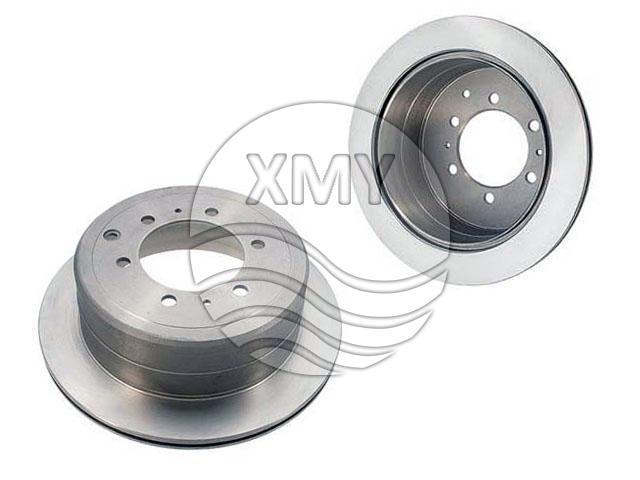

Ref.:42431-60170
Rear Axle
Height : 103 mm
Diameter : 335 mm
Centering Diameter : 106 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 16 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7.8 kg -

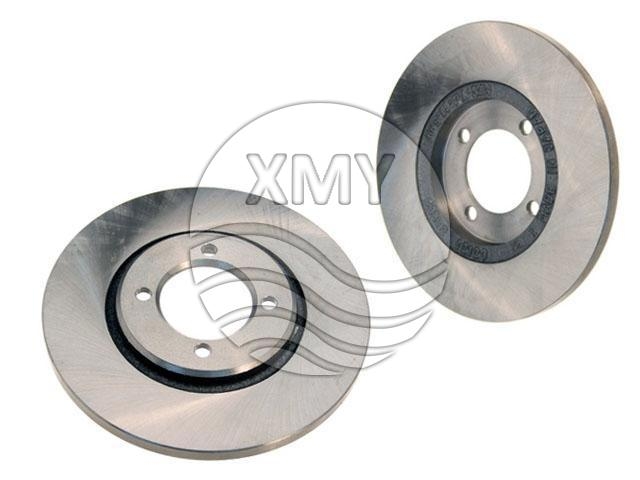

Ref.:43512-12120
Front Axle
Height : 23 mm
Diameter : 229 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 87 mm
Brake Disc Thickness : 12.5 mm
Minimum Thickness : 11.5 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.14 kg -

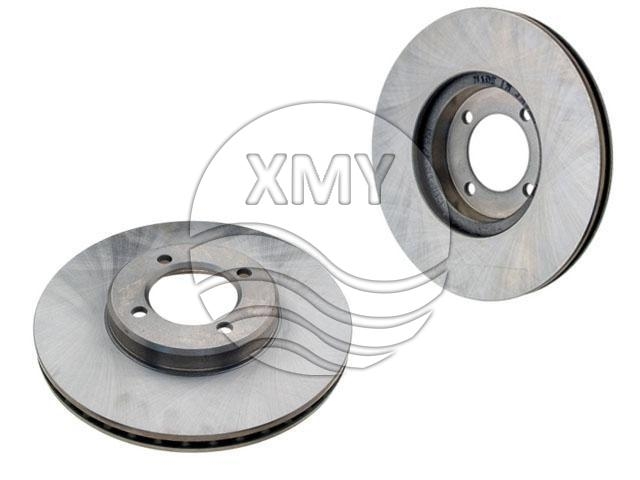

Front Axle
Height : 38 mm
Diameter : 234 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 87 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.85 kg -

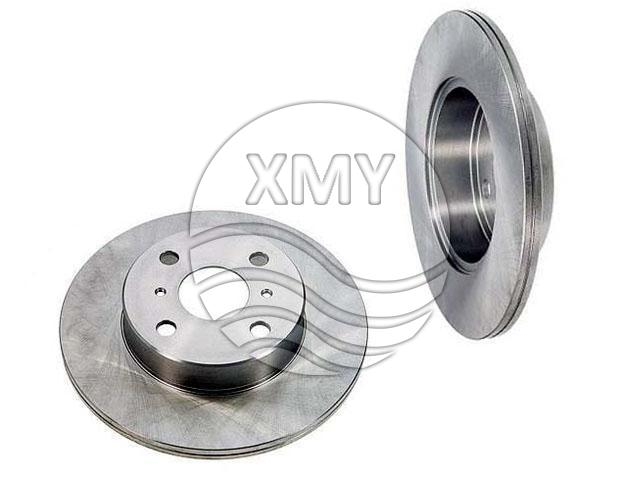

Ref.:43512-12160
Front Axle
Height : 47.4 mm
Diameter : 243 mm
Centering Diameter : 54 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 13.5 mm
Minimum Thickness : 12.5 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4 kg -

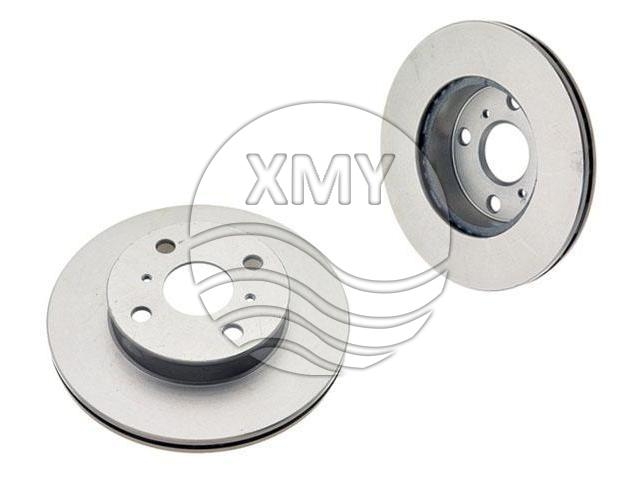

Ref.:43512-12440
Front Axle
Height : 48.2 mm
Diameter : 238 mm
Centering Diameter : 54.1 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.1 kg -

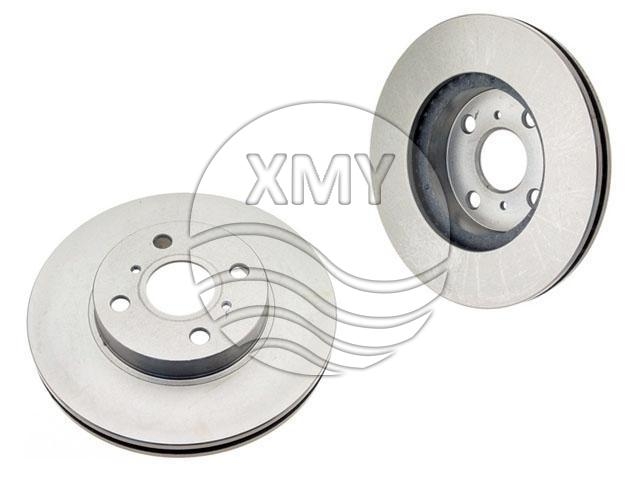

Ref.:43512-12550
Front Axle
Height : 48.1 mm
Diameter : 255 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.95 kg -
Front Axle
Height : 26.2 mm
Diameter : 258 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V -

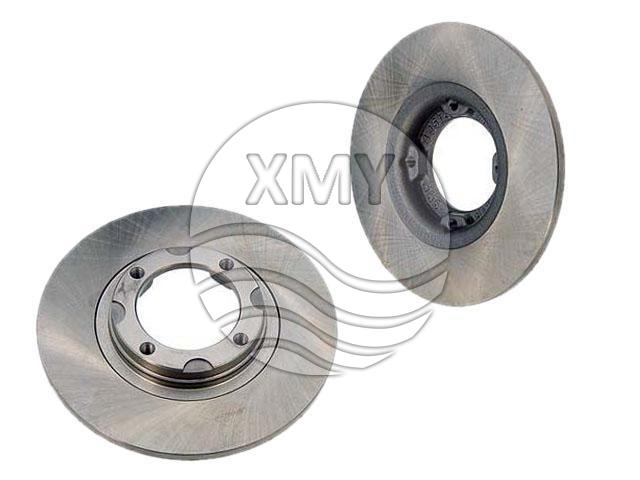

Front Axle
Height : 29.8 mm
Diameter : 226 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 96 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.6 kg -

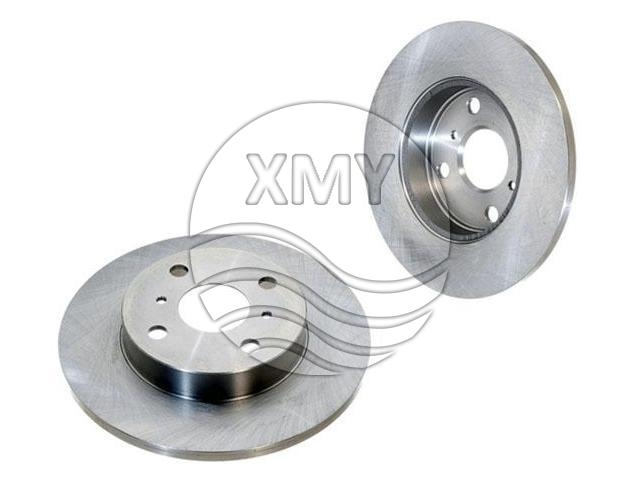

Ref.:43512-16031
Front Axle
Height : 39.3 mm
Diameter : 242.9 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.4 kg -

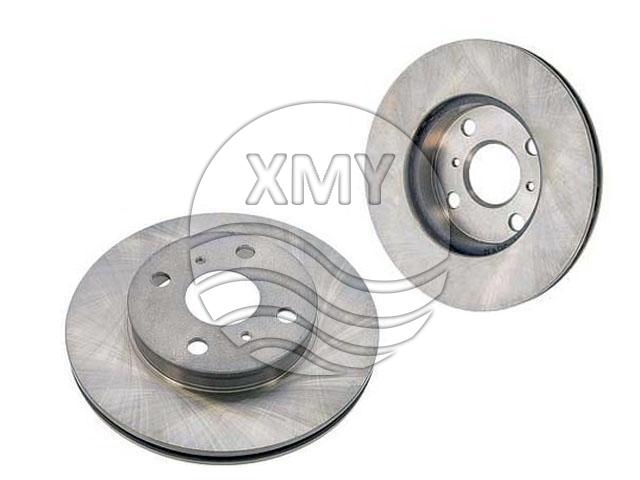

Ref.:43512-16070
Front Axle
Height : 43 mm
Diameter : 238 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.9 kg
