Ref.:34 11 1 154 749
Front Axle
Height : 35 mm
Diameter : 260 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20.4 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.8 kg -
Ref.:34 11 1 154 747
Front Axle
Height : 35 mm
Diameter : 260 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.1 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.25 kg -
Ref.:34 11 1 153 228
Front Axle
Height : 76 mm
Diameter : 282 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.1 kg -
Ref.:34 11 1 151 655
Front Axle
Height : 76 mm
Diameter : 284 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.2 kg -
Ref.:34 11 1 116 675
Front Axle
Height : 75 mm
Diameter : 255 mm
Centering Diameter : 63 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.1 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.8 kg -
Ref.:34 10 1 166 071
Front Axle
Height : 52.6 mm
Diameter : 325 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 24.9 mm
Minimum Thickness : 23.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.9 kg -
Ref.:321 615 301 D
Front Axle
Height : 38.8 mm
Diameter : 256 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.47 kg -
Ref.:321 615 301
Front Axle
Height : 35.4 mm
Diameter : 239 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.3 kg -

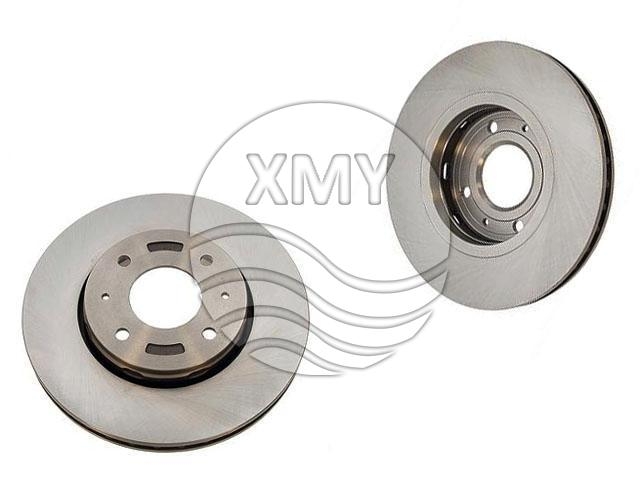

Ref.:3081 8027
Front Axle
Height : 45.7 mm
Diameter : 281 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 23.9 mm
Minimum Thickness : 21.5 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.2 kg -

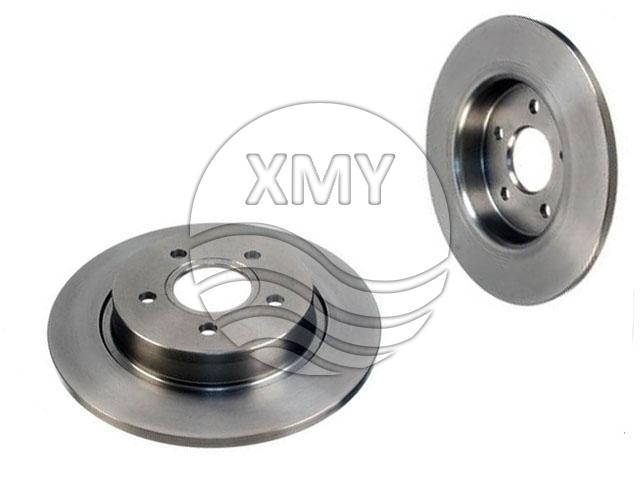

Ref.:3066 6802
Rear Axle
Height : 41 mm
Diameter : 280 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11.0 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.5 kg
