Rear Axle
Height : 46.4 mm
Diameter : 269 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 21.9 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V -

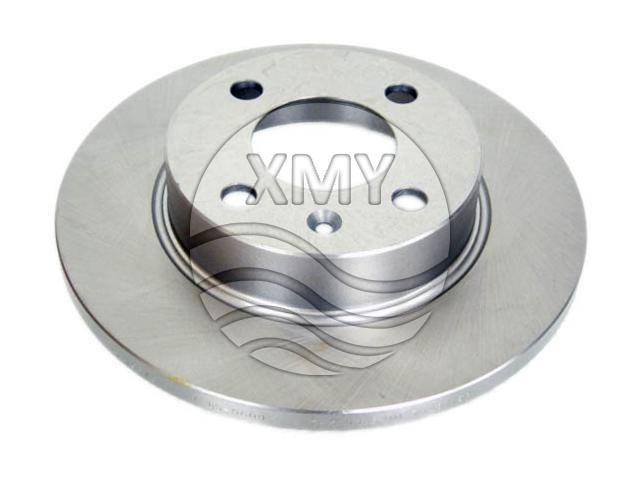

Ref.:115 430 211
Front Axle
Height : 45.6 mm
Diameter : 236 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 12.8 mm
Minimum Thickness : 11.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.65 kg -
Front Axle
Height : 48.6 mm
Diameter : 236 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.7 kg -

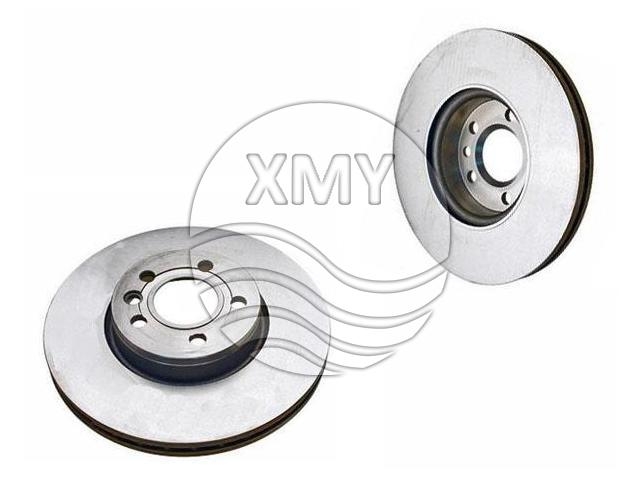

Ref.:7M3 615 301
Front Axle
Height : 56.2 mm
Diameter : 313 mm
Centering Diameter : 68.2 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25.9 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.3 kg -
Ref.:14035588
Front Axle
Height : 50.8 mm
Diameter : 260.6 mm
Centering Diameter : 70.6 mm
Pitch Circle Diameter : 115 mm
Brake Disc Thickness : 26.4 mm
Minimum Thickness : 24.4 mm
Num. of holes : 5
Solid or Vented : V -

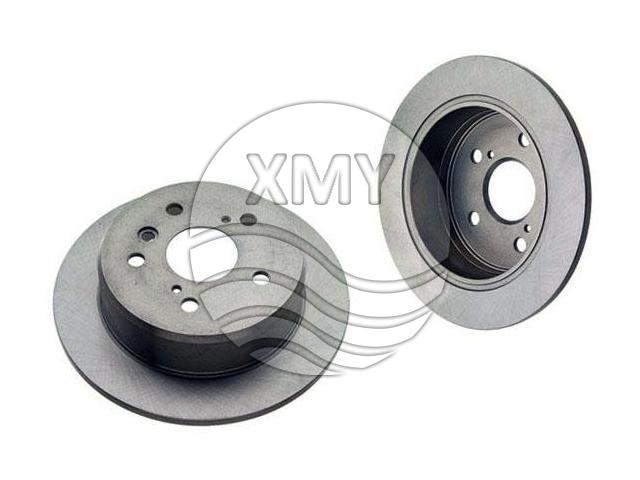

Ref.:42431-33010
Rear Axle
Height : 64.8 mm
Diameter : 269 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.3 kg -

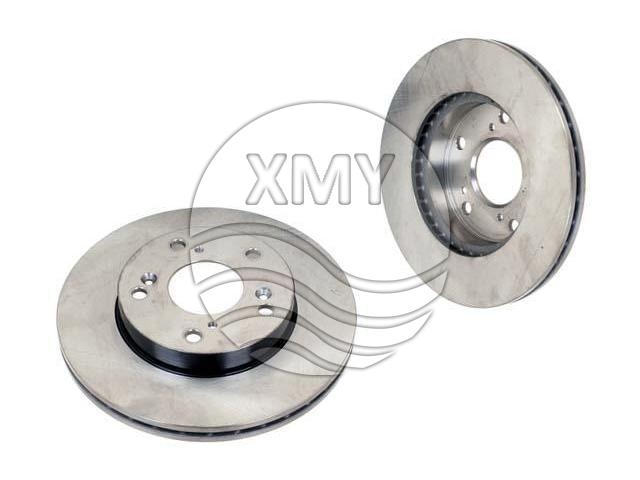

Ref.:45251-SNE-A00
Front Axle
Height : 47.1 mm
Diameter : 261.7 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 114 mm
Brake Disc Thickness : 21 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5 kg -

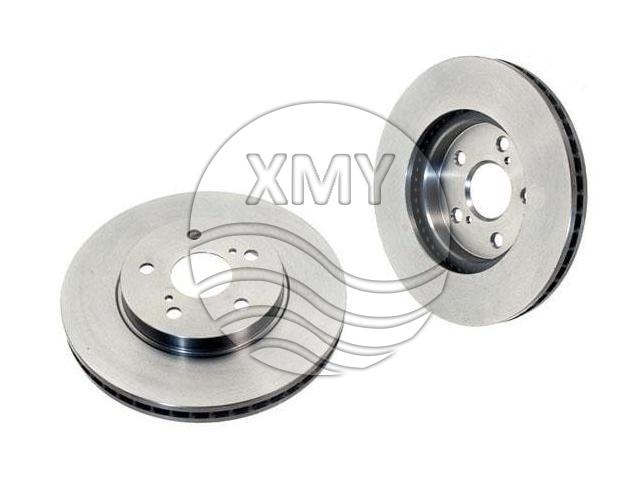

Ref.:43512-28181
Front Axle
Height : 49.2 mm
Diameter : 296 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V -
Front Axle
Height : 49.3 mm
Diameter : 296 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.5 kg -
Front Axle
Height : 49.1 mm
Diameter : 319.5 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
