Front Axle
Height : 76 mm
Diameter : 315 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.6 kg -
Ref.:34 11 2 226 813
Front Axle
Height : 40.1 mm
Diameter : 280 mm
Centering Diameter : 79.2 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 24.9 mm
Minimum Thickness : 23.4 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:34 21 1 119 566
Rear Axle
Height : 61.5 mm
Diameter : 272 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 9.5 mm
Minimum Thickness : 7.9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.1 kg -
Ref.:34 21 1 152 298
Rear Axle
Height : 68.1 mm
Diameter : 280 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.4 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.7 kg -
Ref.:34 21 1 165 265
Rear Axle
Height : 61 mm
Diameter : 300 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.4 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:34 21 6 767 062
Rear Axle
Height : 61 mm
Diameter : 328 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.4 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:34 21 1 163 150
Rear Axle
Height : 68 mm
Diameter : 284 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.4 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.6 kg -

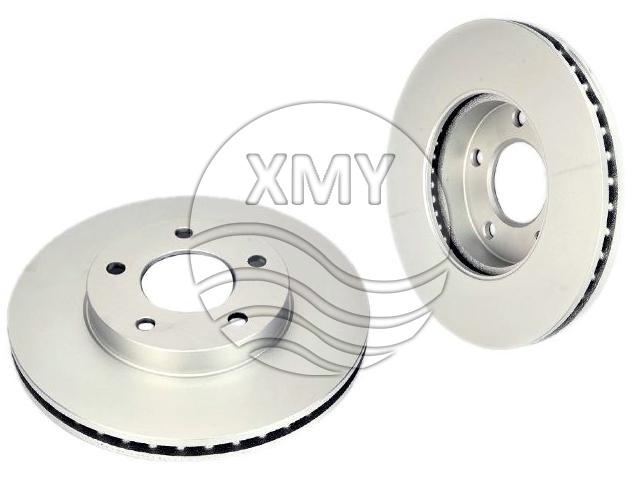

Ref.:EC02-33-25X
Front Axle
Height : 47 mm
Diameter : 278 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.1 kg -

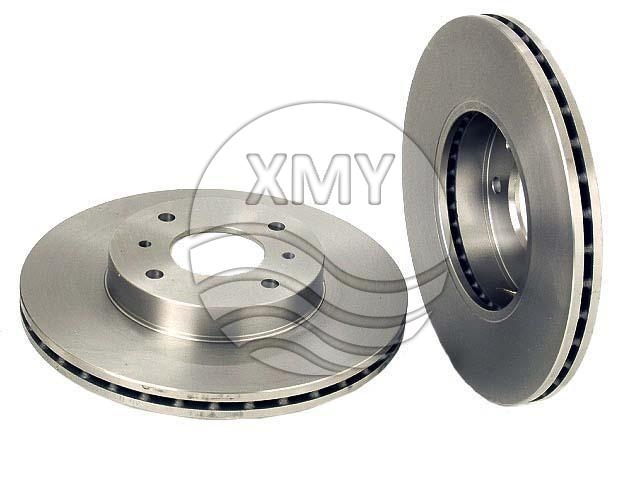

Ref.:40206-55F03
Front Axle
Height : 49.2 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.8 kg -

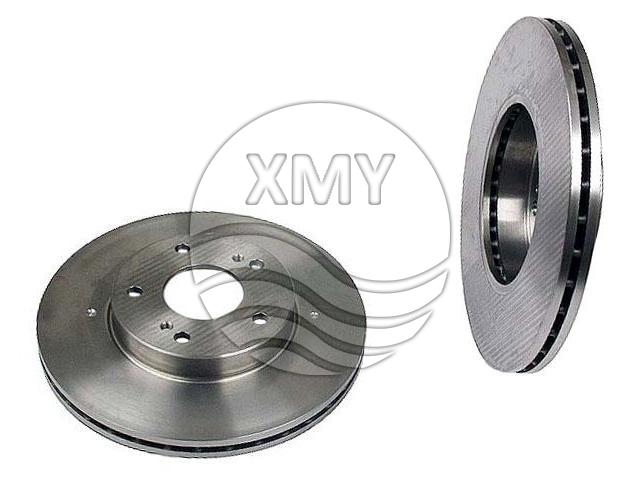

Ref.:40206-88E05
Front Axle
Height : 49 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.75 kg
