Ref.:1904529
Front Axle
Height : 111 mm
Diameter : 267 mm
Centering Diameter : 58.3 mm
Pitch Circle Diameter : 170 mm
Brake Disc Thickness : 14.2 mm
Minimum Thickness : 12.8 mm
Num. of holes : 6
Solid or Vented : S
Weight : 10.4 kg -
Rear Axle
Height : 62 mm
Diameter : 276 mm
Centering Diameter : 71 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 14.0 mm
Minimum Thickness : 12 mm
Num. of holes : 4
Solid or Vented : S
Weight : 5.4 kg -

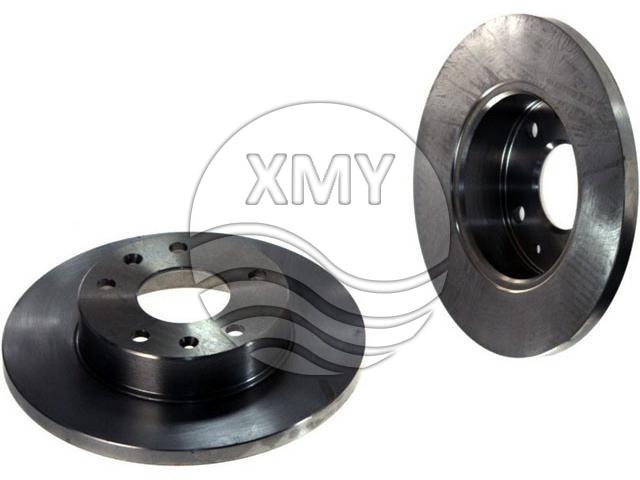

Ref.:SDB100830
Front Axle
Height : 51 mm
Diameter : 262 mm
Centering Diameter : 66.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 14.0 mm
Minimum Thickness : 11 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.9 kg -

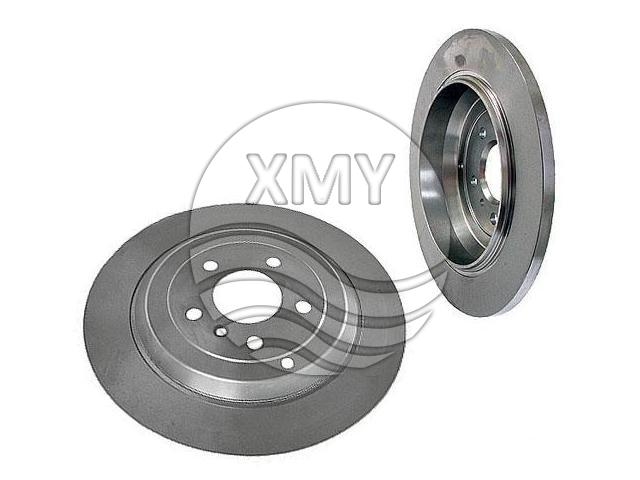

Ref.:164 423 05 12
Rear Axle
Height : 63 mm
Diameter : 330 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 14 mm
Minimum Thickness : 11.4 mm
Num. of holes : 5
Solid or Vented : S
Weight : 7.6 kg -
Ref.:60617106
Front Axle
Height : 44.7 mm
Diameter : 281 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 15.0 mm
Minimum Thickness : 13.2 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.9 kg -

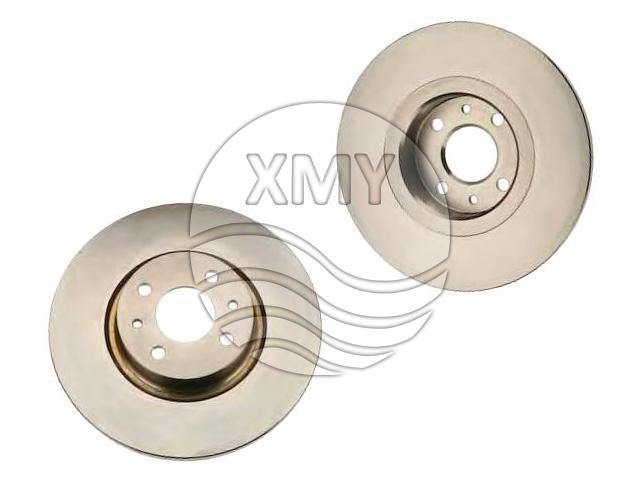

Ref.:46763837
Front Axle
Height : 44.7 mm
Diameter : 281 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 15.0 mm
Minimum Thickness : 13.2 mm
Num. of holes : 4
Solid or Vented : S
Weight : 5.9 kg -
Front Axle
Height : 41.6 mm
Diameter : 226 mm
Centering Diameter : 54 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 16.0 mm
Minimum Thickness : 15 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3 kg -
Ref.:4246.95
Front Axle
Height : 64.1 mm
Diameter : 256 mm
Centering Diameter : 73 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 16.1 mm
Minimum Thickness : 13.5 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.85 kg -

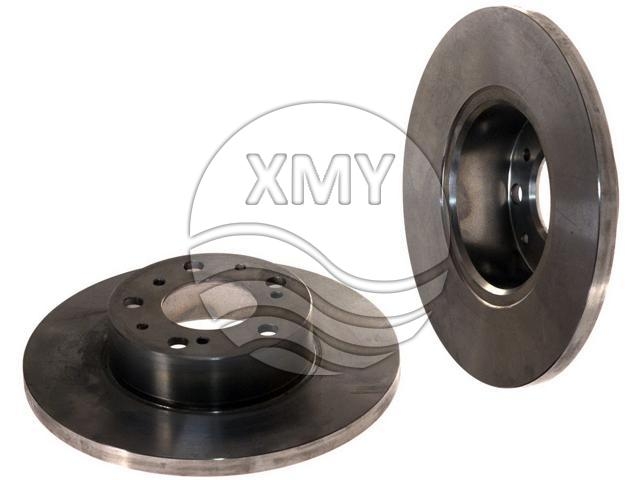

Ref.:4246.A0
Front Axle
Height : 61 mm
Diameter : 290 mm
Centering Diameter : 73 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 16.0 mm
Minimum Thickness : 14.8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 7.35 kg -

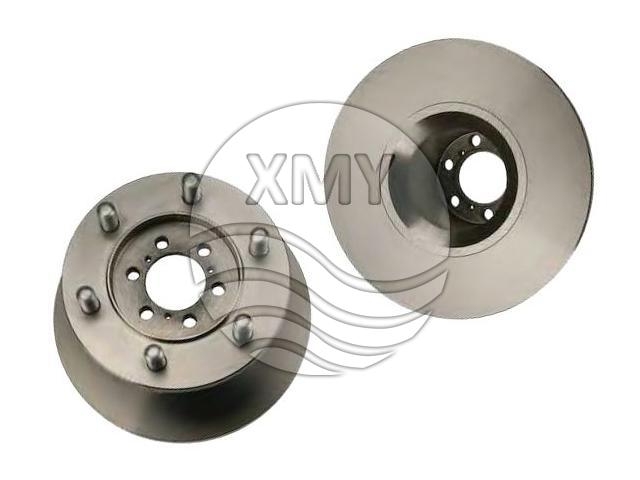

Ref.:8584182
Front Axle
Height : 142 mm
Diameter : 280 mm
Centering Diameter : 58.3 mm
Pitch Circle Diameter : 170 mm
Brake Disc Thickness : 16.0 mm
Minimum Thickness : 14.5 mm
Num. of holes : 6
Solid or Vented : S
Weight : 13.3 kg
