Rear Axle
Height : 42.4 mm
Diameter : 302 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Solid or Vented : S
Weight : 5.2 kg -
Rear Axle
Height : 39.7 mm
Diameter : 282 mm
Centering Diameter : 64.2 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S -
Ref.:60516371
Front Axle
Height : 68 mm
Diameter : 272 mm
Centering Diameter : 82 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 10.7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 5.87 kg -
Ref.:34 11 1 152 089
Front Axle
Height : 59.9 mm
Diameter : 271.5 mm
Centering Diameter : 74 mm
Pitch Circle Diameter : 92 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.1 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.36 kg -

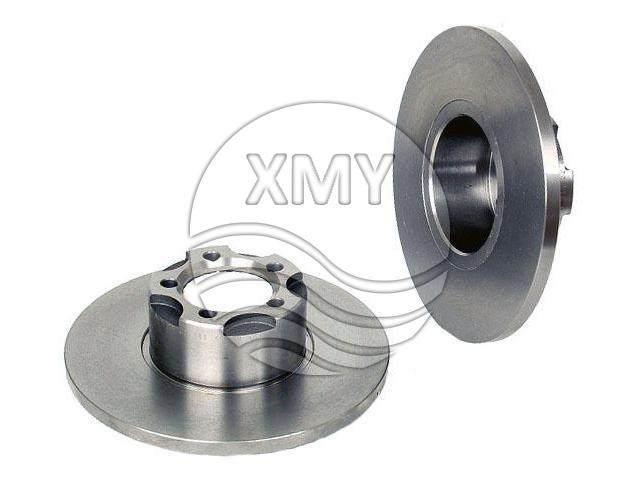

Ref.:110 421 01 12
Front Axle
Height : 67.5 mm
Diameter : 253 mm
Centering Diameter : 69.5 mm
Pitch Circle Diameter : 88.5 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.1 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.7 kg -

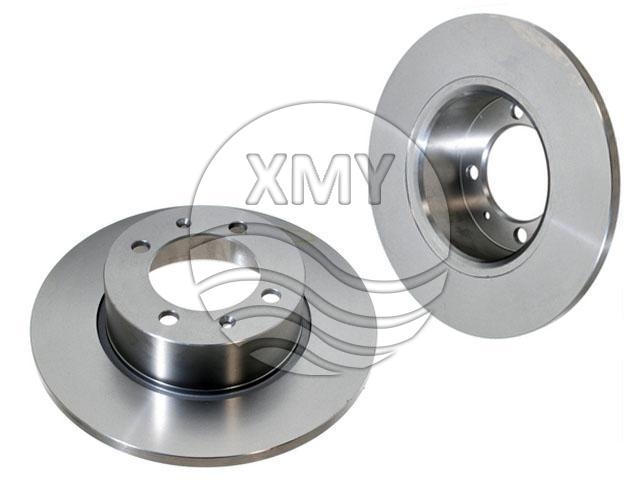

Ref.:32000298
Front Axle
Height : 65.4 mm
Diameter : 280 mm
Centering Diameter : 86.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 5.22 kg -

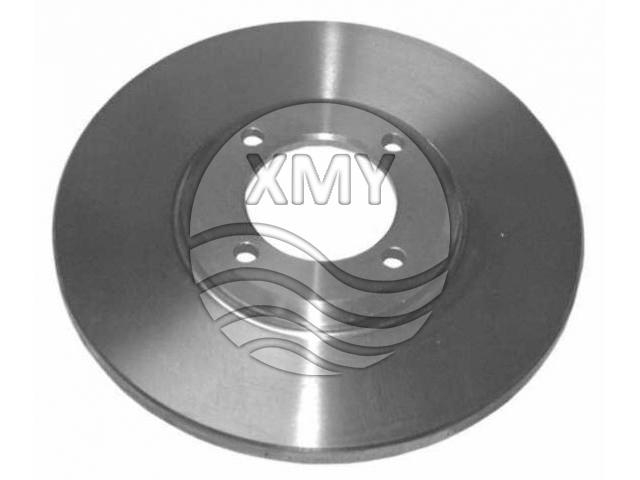

Ref.:5 022 253
Front Axle
Height : 27 mm
Diameter : 244.6 mm
Centering Diameter : 68.3 mm
Pitch Circle Diameter : 92.5 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.73 kg -
Ref.:5 69 015
Front Axle
Height : 55.5 mm
Diameter : 246 mm
Centering Diameter : 73 mm
Pitch Circle Diameter : 92 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 9.7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.2 kg -
Ref.:5 69 027
Front Axle
Height : 59.4 mm
Diameter : 271 mm
Centering Diameter : 88 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 9.7 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.2 kg -

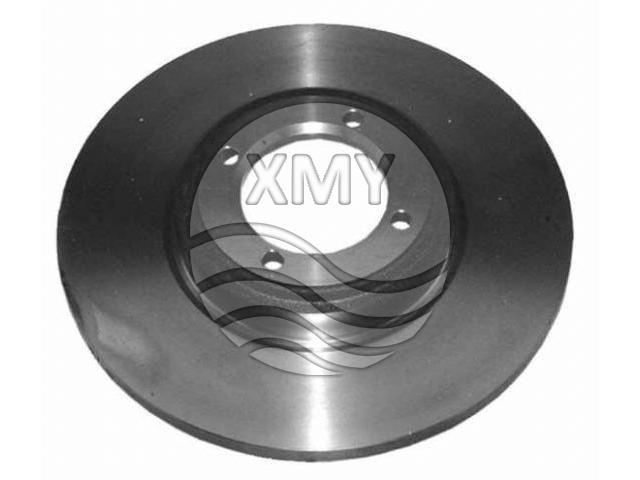

Ref.:4246 42
Front Axle
Height : 43 mm
Diameter : 273 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 13.0 mm
Minimum Thickness : 10.7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.95 kg
