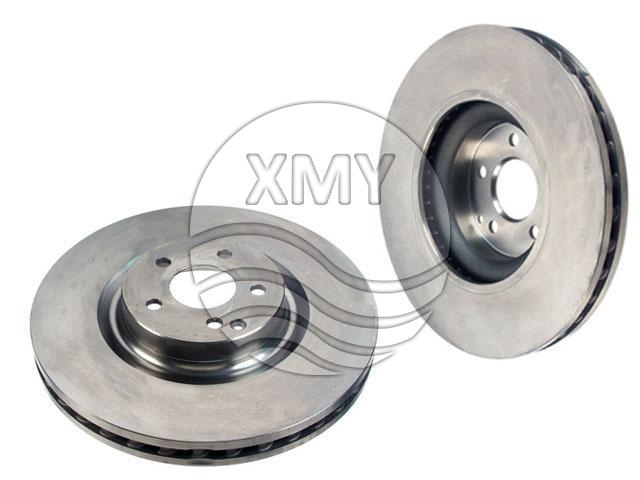

Front Axle, Right
Height : 72 mm
Diameter : 322 mm
Centering Diameter : 103 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 32.0 mm
Minimum Thickness : 30 mm
Num. of holes : 5
Solid or Vented : P/V -
Ref.:230 421 07 12
Front Axle
Height : 64.5 mm
Diameter : 360 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 36.0 mm
Minimum Thickness : 34 mm
Num. of holes : 5
Solid or Vented : P/V -

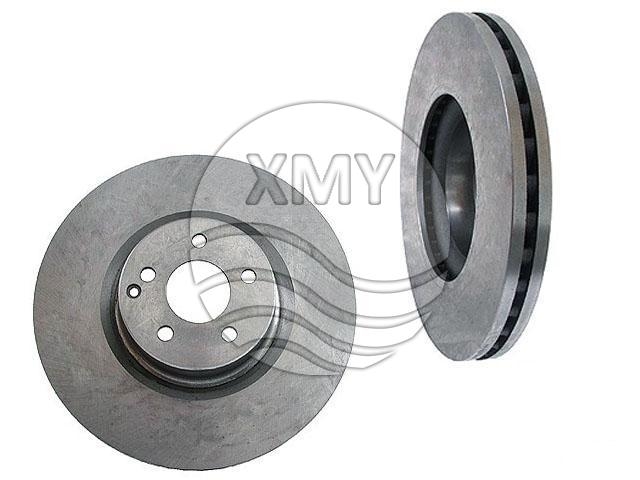

Front Axle
Height : 61.9 mm
Diameter : 356 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 36.0 mm
Minimum Thickness : 34.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 13.7 kg -
Ref.:220 421 19 12
Front Axle
Height : 76 mm
Diameter : 360 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 36.0 mm
Minimum Thickness : 34 mm
Num. of holes : 5
Solid or Vented : P/V
Weight : 16.5 kg -
Ref.:60578093

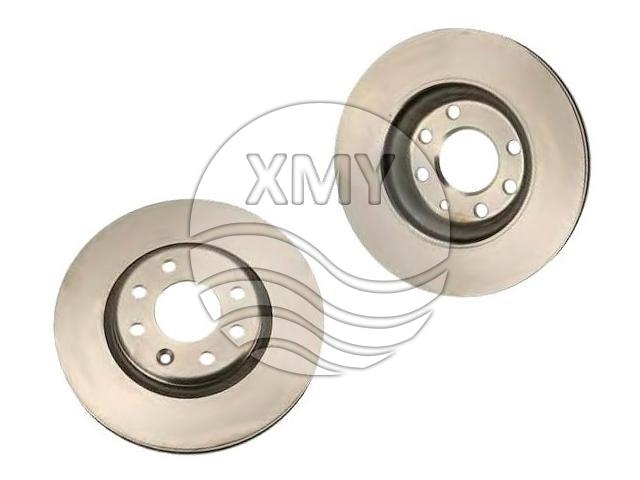

Front Axle
Height : 43.5 mm
Diameter : 284 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6 kg -
Ref.:6027481
Front Axle
Height : 40 mm
Diameter : 256 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 6
Solid or Vented : V
Weight : 4.8 kg -
Rear Axle
Height : 47.9 mm
Diameter : 269 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 10
Solid or Vented : V -
Ref.:7L6 615 601 E
Rear Axle
Height : 75.5 mm
Diameter : 314 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:8E0 615 601 R
Rear Axle
Height : 36.2 mm
Diameter : 300 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Solid or Vented : V
Weight : 6.1 kg -
Rear Axle
Height : 79.7 mm
Diameter : 320 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8 kg
