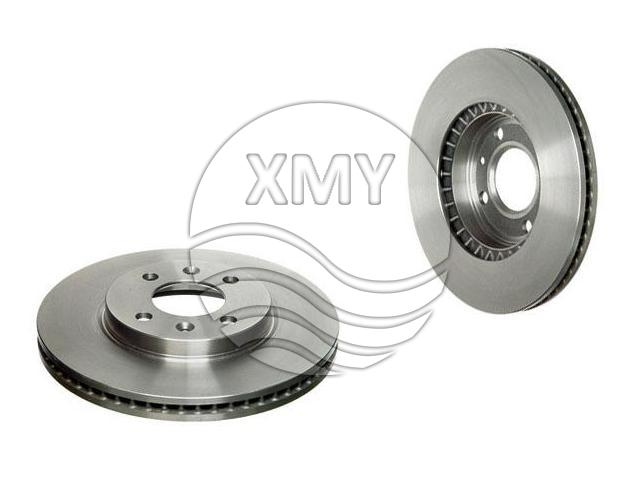

Ref.:8965980
Front Axle
Height : 44 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.75 kg -
Front Axle
Height : 64.7 mm
Diameter : 297 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : RV
Weight : 8.1 kg -
Ref.:60576811
Front Axle
Height : 43.7 mm
Diameter : 281 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 26.0 mm
Minimum Thickness : 24.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.8 kg -
Ref.:34 21 1 166 165
Rear Axle
Height : 60.5 mm
Diameter : 294 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 19.0 mm
Minimum Thickness : 17.4 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 100 mm
Diameter : 289 mm
Centering Diameter : 103 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.6 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:34 21 1 162 967
Rear Axle
Height : 68 mm
Diameter : 300 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.1 kg -

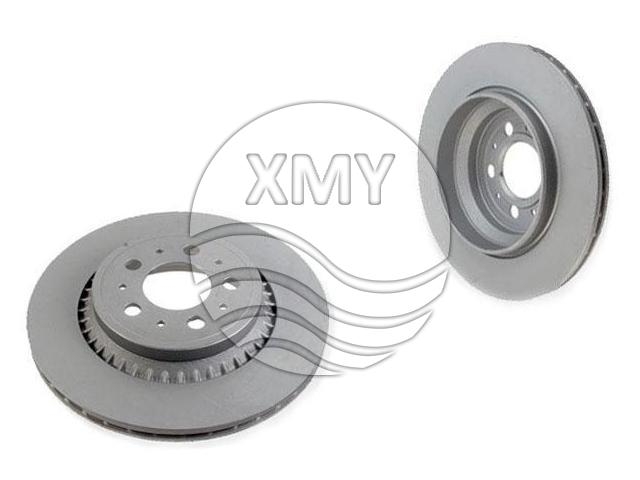

Ref.:86249260
Rear Axle
Height : 64.6 mm
Diameter : 308 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.1 kg -
Rear Axle
Height : 83 mm
Diameter : 290 mm
Centering Diameter : 90 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.7 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.9 kg -
Rear Axle
Height : 80.3 mm
Diameter : 324 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.7 kg -

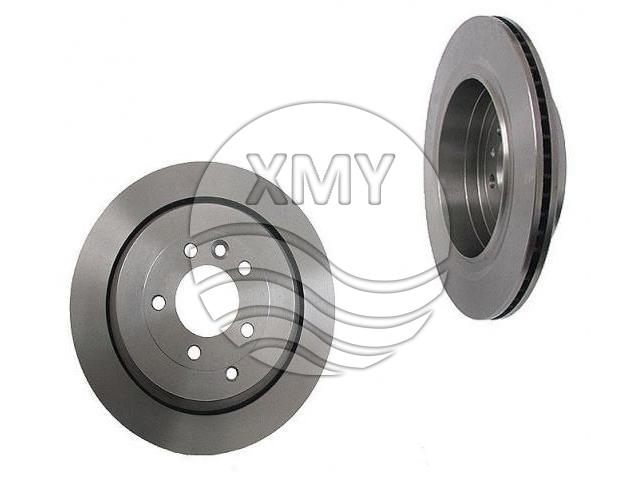

Ref.:SDB000644
Rear Axle
Height : 59 mm
Diameter : 350 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 17 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.9 kg
