Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-

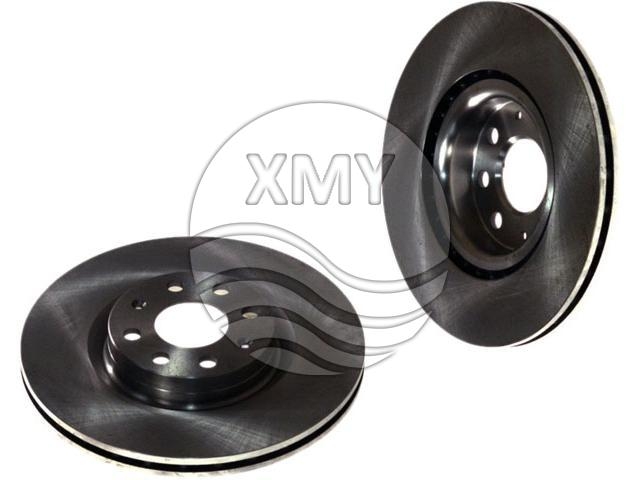

Ref.:55 69 025
Front Axle
Height : 43.5 mm
Diameter : 284 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 6
Solid or Vented : V
Weight : 6.1 kg -
Rear Axle
Height : 42.5 mm
Diameter : 330 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V -

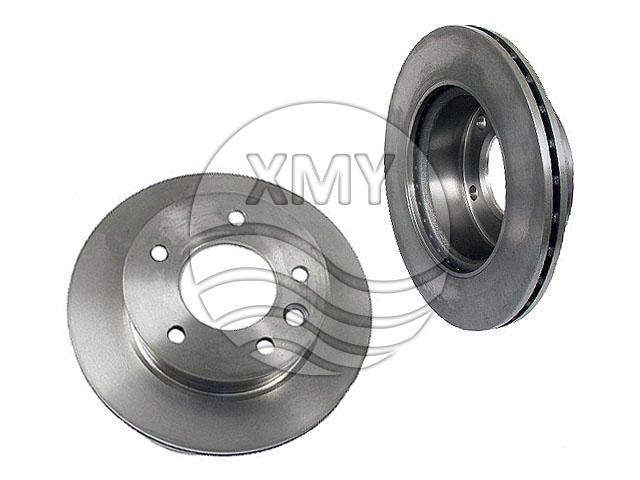

Ref.:903 421 00 12
Front Axle
Height : 72 mm
Diameter : 285 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V -

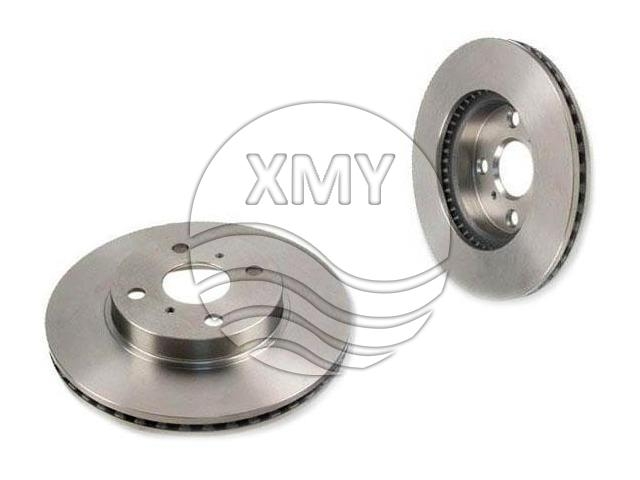

Ref.:43512-52120
Front Axle
Height : 46.3 mm
Diameter : 255 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.1 kg -

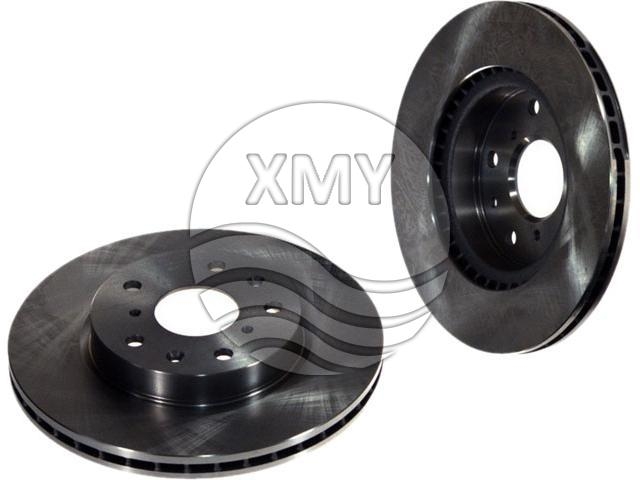

Ref.:71742850
Front Axle
Height : 47 mm
Diameter : 280 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.8 kg -

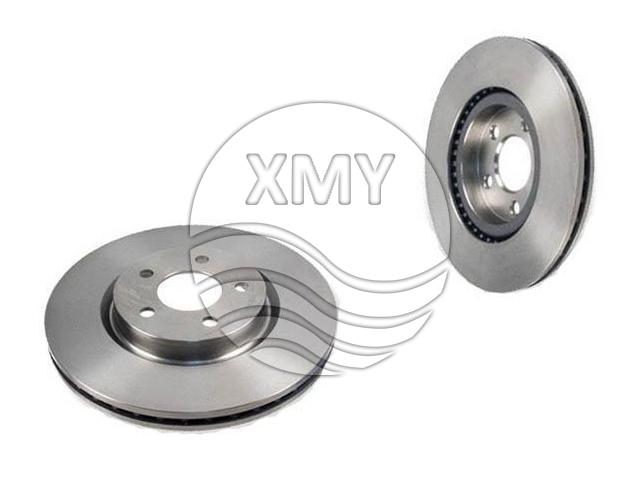

Ref.:4509 994AA
Front Axle
Height : 39.2 mm
Diameter : 280 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 23.0 mm
Minimum Thickness : 21.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.2 kg -
Front Axle
Height : 49.2 mm
Diameter : 242 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.7 kg -
Front Axle
Height : 90.5 mm
Diameter : 285 mm
Centering Diameter : 83 mm
Pitch Circle Diameter : 106 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 8
Solid or Vented : V
Weight : 6.94 kg -
Front Axle
Height : 45.8 mm
Diameter : 251 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.2 kg -
Ref.:0K20A-33-251A
Front Axle
Height : 42.5 mm
Diameter : 243 mm
Centering Diameter : 57 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.4 kg
