Ref.:GBD90800
Front Axle
Height : 51.2 mm
Diameter : 285 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.85 kg -
Ref.:77 00 793 047
Front Axle
Height : 32 mm
Diameter : 285 mm
Centering Diameter : 61 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.780 kg -
Ref.:77 00 801 213
Front Axle
Height : 31.8 mm
Diameter : 285 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6 kg -

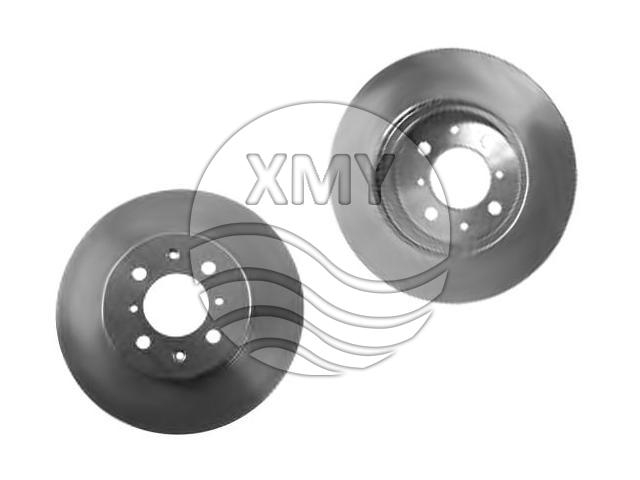

Ref.:GBD90830
Front Axle
Height : 47.2 mm
Diameter : 262 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5 kg -

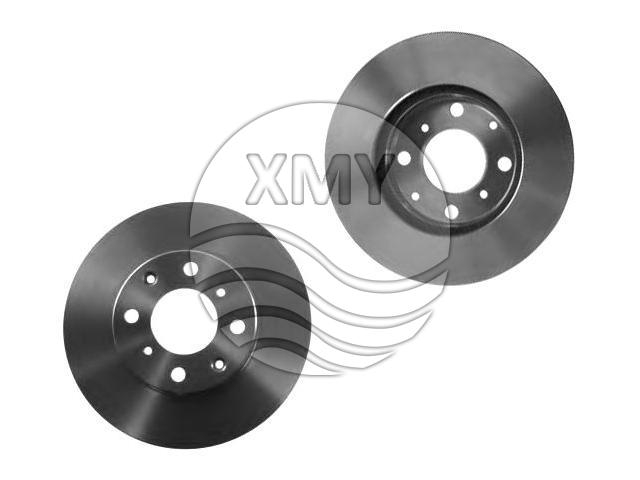

Ref.:45251-S50-G00
Front Axle
Height : 39.2 mm
Diameter : 240 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.2 kg -

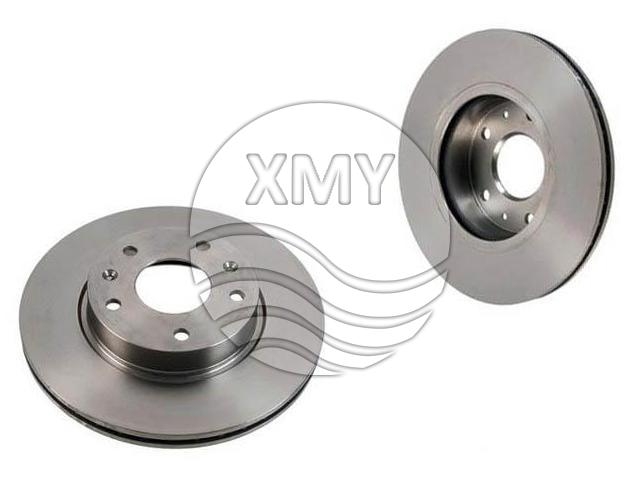

Ref.:SDB101070
Front Axle
Height : 51 mm
Diameter : 277 mm
Centering Diameter : 66.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.8 kg -
Ref.:5 69 029
Front Axle
Height : 59.4 mm
Diameter : 271 mm
Centering Diameter : 88 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.7 kg -
Ref.:5 69 022
Front Axle
Height : 59.4 mm
Diameter : 271 mm
Centering Diameter : 94 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.7 kg -
Ref.:60514881
Front Axle
Height : 46.1 mm
Diameter : 239.2 mm
Centering Diameter : 58.5 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20.2 mm
Num. of holes : 4
Solid or Vented : V -

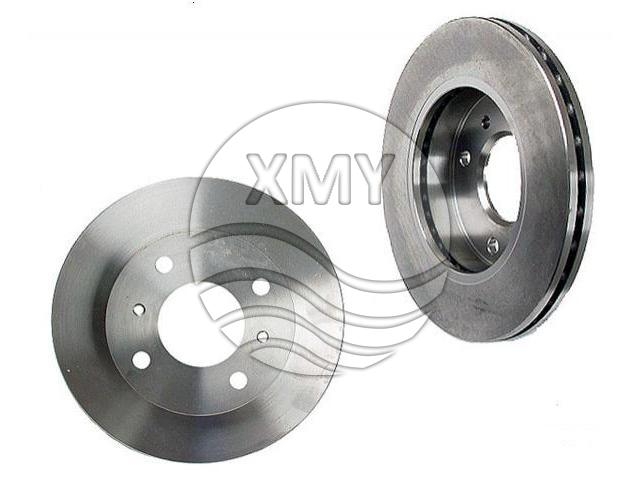

Ref.:40206-15E01
Front Axle
Height : 49.2 mm
Diameter : 250 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.25 kg
