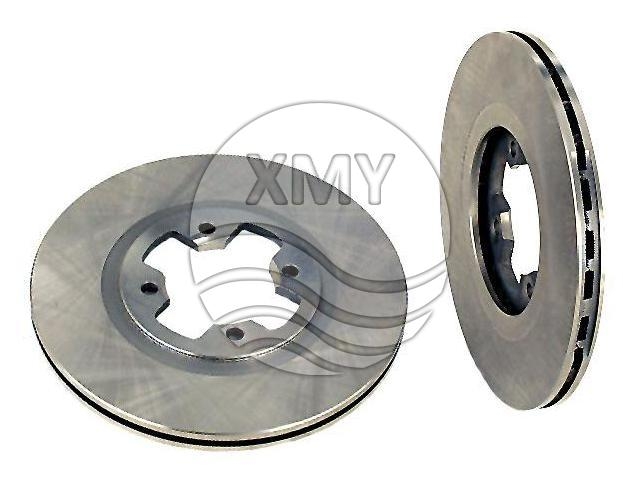

Ref.:40206-W1270
Front Axle
Height : 22 mm
Diameter : 250 mm
Centering Diameter : 73 mm
Pitch Circle Diameter : 95 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 16 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.13 kg -

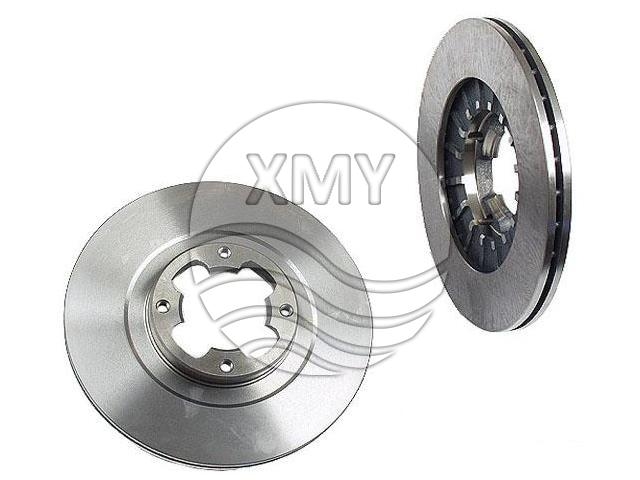

Ref.:7254-31321
Front Axle
Height : 36.5 mm
Diameter : 240 mm
Centering Diameter : 65.1 mm
Pitch Circle Diameter : 94 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 15.5 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.7 kg -

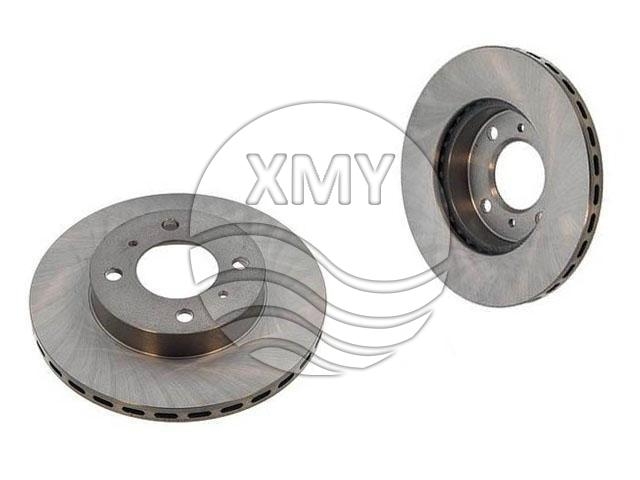

Ref.:MB699283
Front Axle
Height : 45 mm
Diameter : 236 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 16.4 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.9 kg -

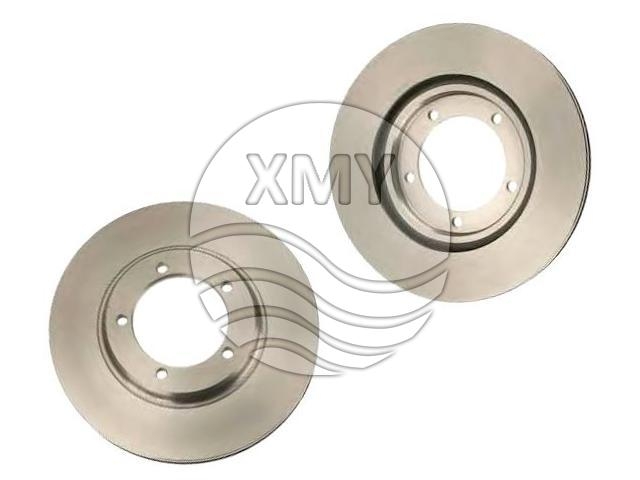

Ref.:43512-87604-000
Front Axle
Height : 32.5 mm
Diameter : 277 mm
Centering Diameter : 96 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 17 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5 kg -

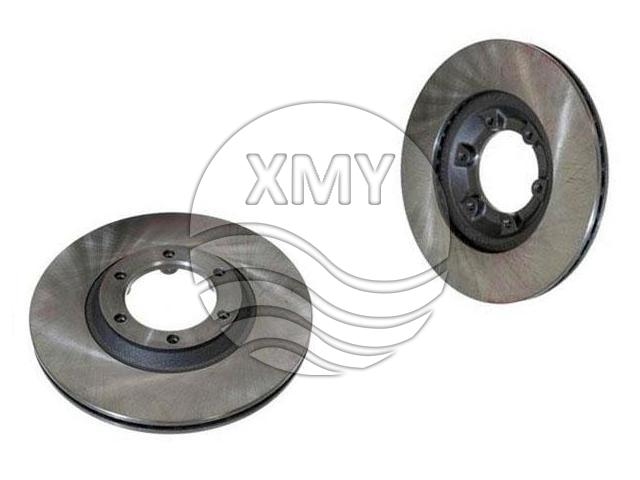

Ref.:8-94113-628-0
Front Axle
Height : 33.5 mm
Diameter : 251.5 mm
Centering Diameter : 80 mm
Pitch Circle Diameter : 102 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 16.6 mm
Num. of holes : 6
Solid or Vented : V
Weight : 4.13 kg -

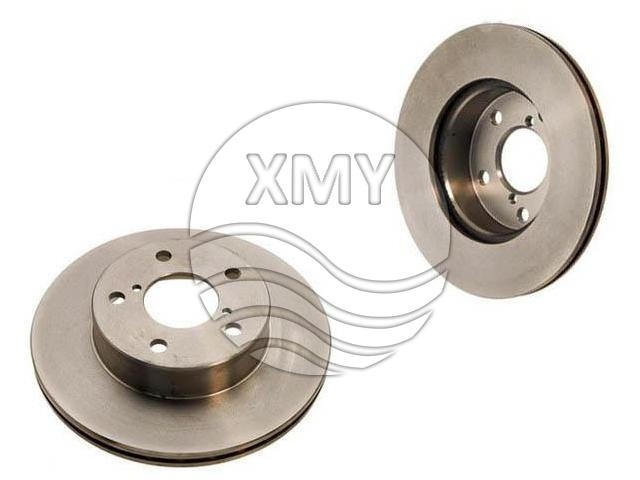

Ref.:26310-AA012
Front Axle
Height : 52.5 mm
Diameter : 242 mm
Centering Diameter : 58 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 16 mm
Num. of holes : 5
Solid or Vented : V
Weight : 4.2 kg -

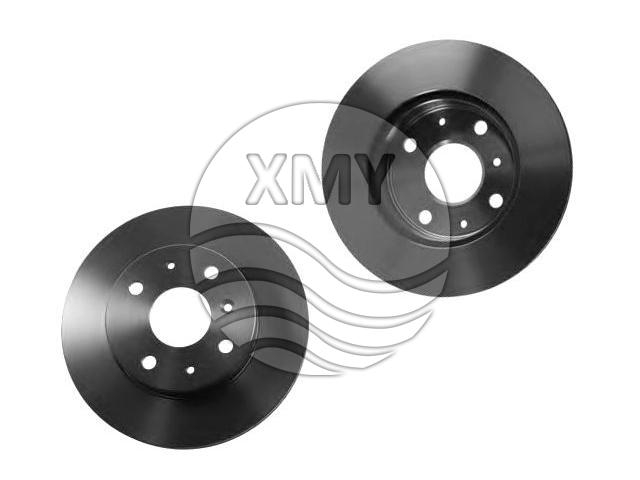

Ref.:43512-87710-000
Front Axle
Height : 47 mm
Diameter : 234.5 mm
Centering Diameter : 56 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.9 kg -

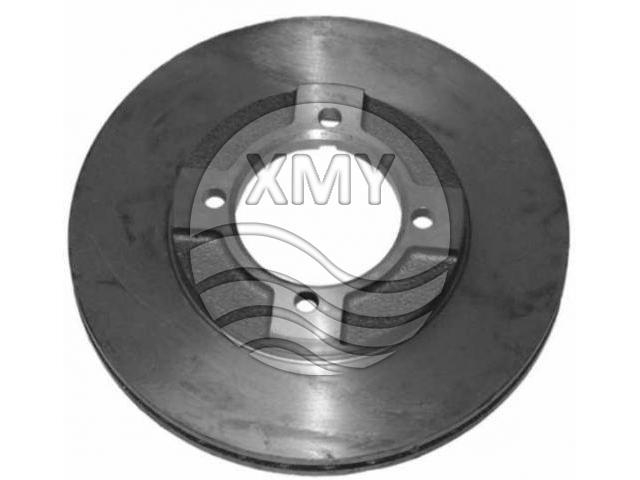

Ref.:40206-16R00
Front Axle
Height : 36.5 mm
Diameter : 232 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 96 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 16 mm
Num. of holes : 4
Solid or Vented : V -
Ref.:43206-05J03
Rear Axle
Height : 80 mm
Diameter : 316 mm
Centering Diameter : 111 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 16 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7.6 kg -

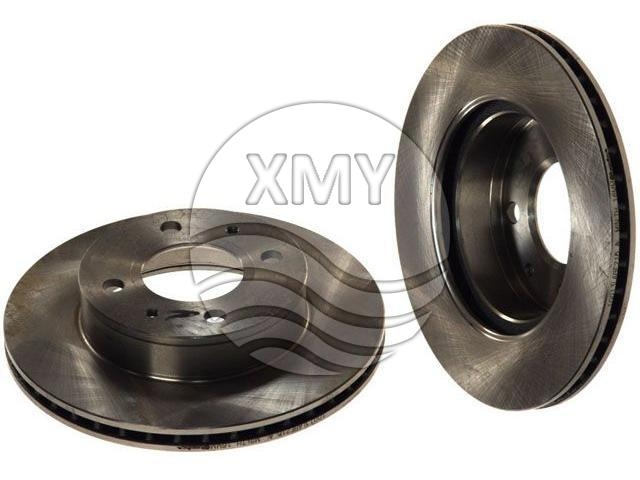

Ref.:51712-02551
Front Axle
Height : 50.7 mm
Diameter : 234 mm
Centering Diameter : 62.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 16 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.8 kg
