Front Axle
Height : 44 mm
Diameter : 229.75 mm
Centering Diameter : 74 mm
Pitch Circle Diameter : 94 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.6 kg -
Ref.:HF05-33-251A
Front Axle
Height : 72 mm
Diameter : 255 mm
Centering Diameter : 53 mm
Pitch Circle Diameter : 114 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.1 kg -
Ref.:FD01-33-25X
Front Axle
Height : 67 mm
Diameter : 294 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 114 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.9 kg -
Ref.:26310-AA111
Rear Axle
Height : 68 mm
Diameter : 266 mm
Centering Diameter : 58 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 16 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.1 kg -
Ref.:60670801
Front Axle
Height : 45 mm
Diameter : 305 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.2 kg -
Front Axle
Height : 39 mm
Diameter : 254 mm
Centering Diameter : 87 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 4.8 kg -
Ref.:26311-TA001
Front Axle
Height : 50.2 mm
Diameter : 221 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 17.9 mm
Minimum Thickness : 16 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.1 kg -
Front Axle, Right
Height : 54 mm
Diameter : 315 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30.5 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:58129-4A000
Front Axle
Height : 40 mm
Diameter : 254 mm
Centering Diameter : 87 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V -

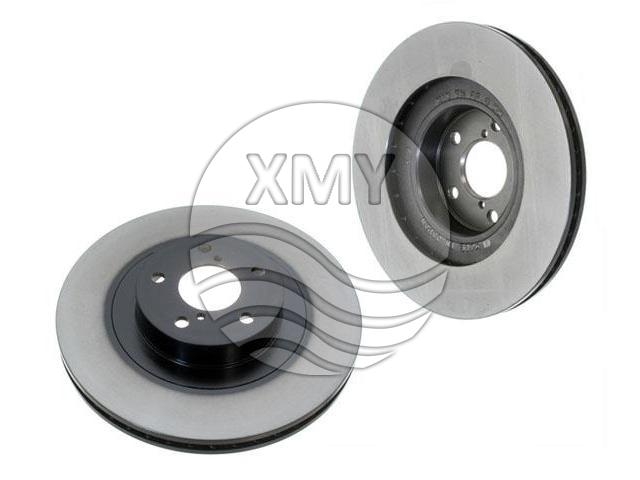

Ref.:26310-AC040
Front Axle
Height : 56.7 mm
Diameter : 294 mm
Centering Diameter : 58 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.4 kg
