Front Axle
Height : 43 mm
Diameter : 229 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 15.9 mm
Minimum Thickness : 15 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.3 kg -
Front Axle
Height : 45.2 mm
Diameter : 276 mm
Centering Diameter : 93 mm
Pitch Circle Diameter : 114 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.4 mm
Num. of holes : 6
Solid or Vented : V -
Rear Axle
Height : 65 mm
Diameter : 282 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10.4 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5 kg -
Ref.:43512-87402-000
Front Axle
Height : 37.5 mm
Diameter : 272 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 16 mm
Minimum Thickness : 15 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.4 kg -
Ref.:41441-05110

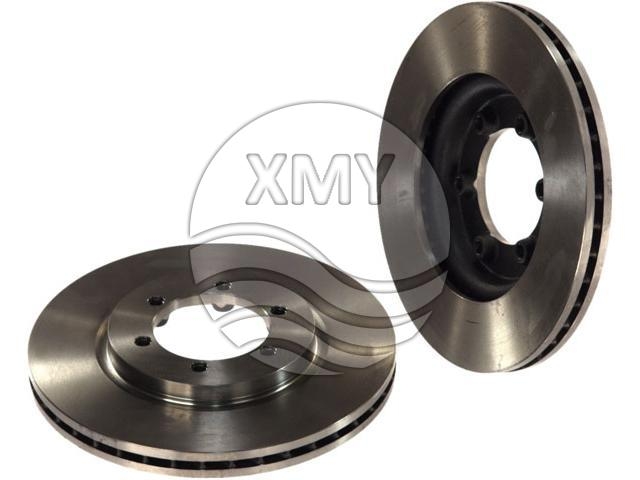

Front Axle
Height : 40 mm
Diameter : 278 mm
Centering Diameter : 87.5 mm
Pitch Circle Diameter : 109 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22 mm
Num. of holes : 6
Solid or Vented : V
Weight : 6.4 kg -
Ref.:43516-20010

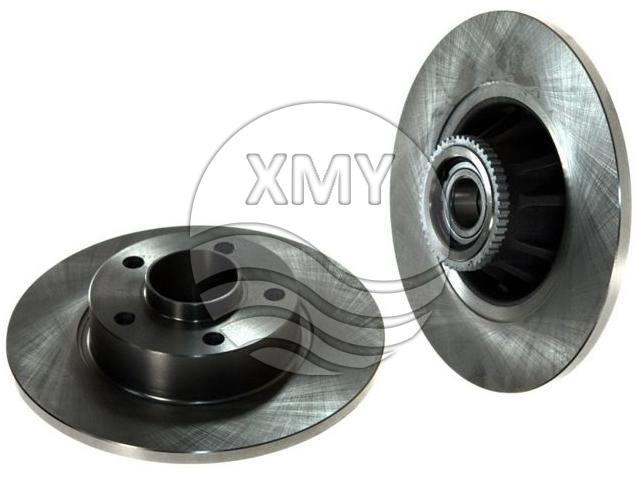

Front Axle, Left
Height : 54 mm
Diameter : 315 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30.5 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:60 92 8151
Rear Axle
Height : 102.2 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 9.1 kg -
Front Axle
Height : 52 mm
Diameter : 324 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Solid or Vented : V
Weight : 8.1 kg -
Rear Axle
Height : 42.5 mm
Diameter : 280 mm
Centering Diameter : 63.66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.9 mm
Solid or Vented : S -
Ref.:4605A180
Front Axle
Height : 46.5 mm
Diameter : 281 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.8 mm
Minimum Thickness : 23.5 mm
Num. of holes : 4
Solid or Vented : V
