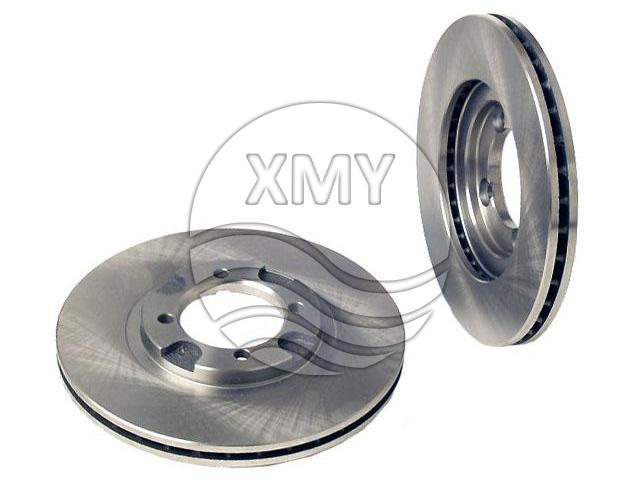

Ref.:G091-33-251B
Front Axle
Height : 35 mm
Diameter : 250 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 94 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18.5 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.3 kg -

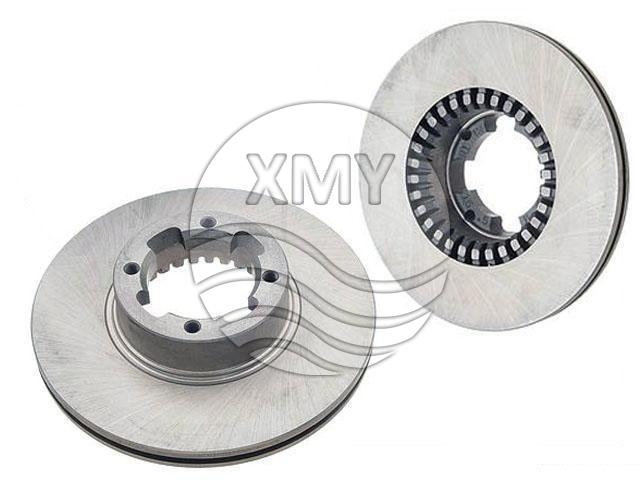

Ref.:725431090
Front Axle
Height : 52 mm
Diameter : 230 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 90 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 15.5 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.2 kg -

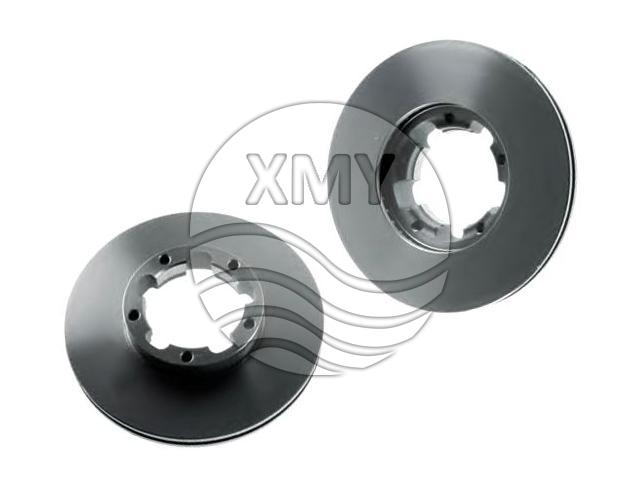

Ref.:40206-F3902
Front Axle
Height : 53 mm
Diameter : 263 mm
Centering Diameter : 96 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.3 kg -

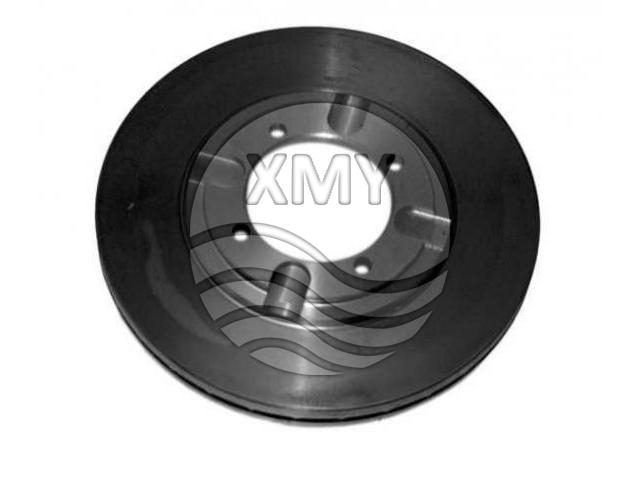

Ref.:MB534607
Front Axle
Height : 34 mm
Diameter : 266 mm
Centering Diameter : 86 mm
Pitch Circle Diameter : 104 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.4 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.5 kg -

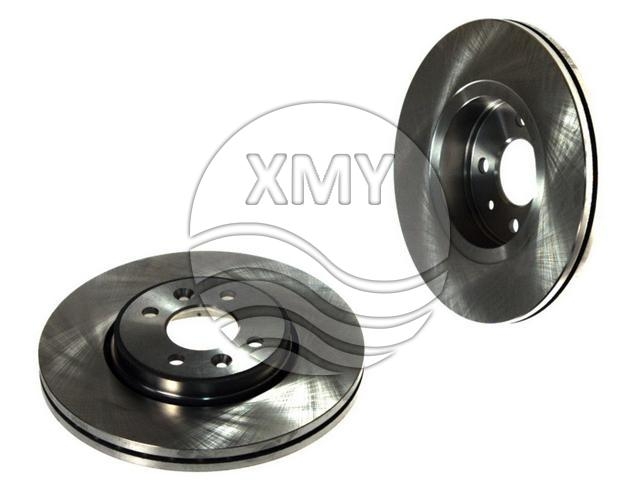

Ref.:77 00 426 389
Front Axle
Height : 44 mm
Diameter : 280 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 21.8 mm
Num. of holes : 4
Solid or Vented : V
Weight : 7.1 kg -

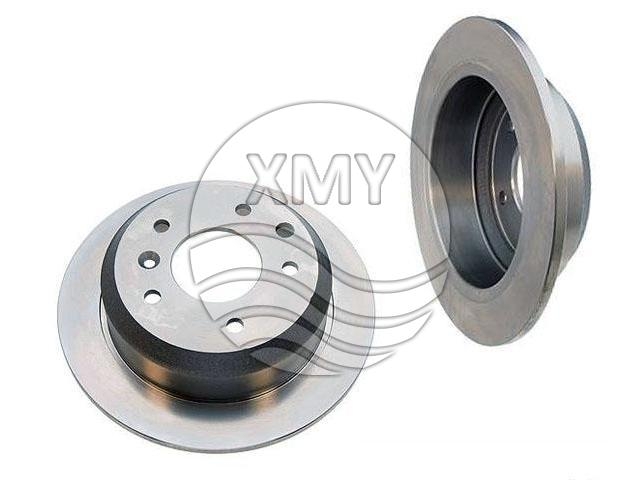

Ref.:JLM1450
Rear Axle
Height : 68 mm
Diameter : 278 mm
Centering Diameter : 74 mm
Pitch Circle Diameter : 121 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.75 kg -
Front Axle
Height : 43 mm
Diameter : 300 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.05 kg -
Ref.:G030-33-251B
Front Axle
Height : 35 mm
Diameter : 228 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 94 mm
Brake Disc Thickness : 14 mm
Minimum Thickness : 12.6 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.7 kg -

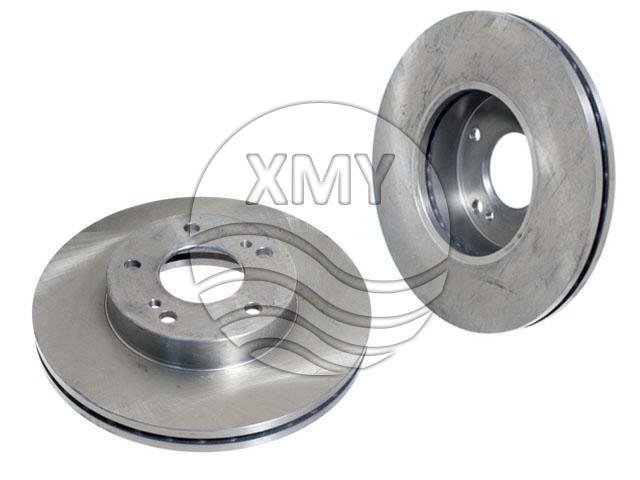

Ref.:40206-22P02
Front Axle
Height : 57 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 103 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24 mm
Num. of holes : 2
Solid or Vented : V
Weight : 8.4 kg -
Ref.:5 022 665
Front Axle
Height : 55 mm
Diameter : 283 mm
Centering Diameter : 63 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.5 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.3 kg
