Ref.:60811879
Front Axle, Rear Axle
Height : 40 mm
Diameter : 240.5 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 11.0 mm
Minimum Thickness : 9.2 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.5 kg -
Ref.:7663466
Front Axle
Height : 40.5 mm
Diameter : 257.5 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10.2 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.3 kg -

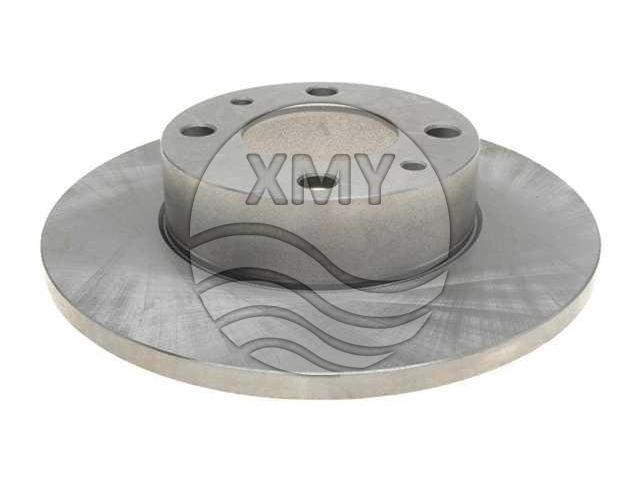

Ref.:16500253
Front Axle, Rear Axle
Height : 45.8 mm
Diameter : 227 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 10.8 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3 kg -

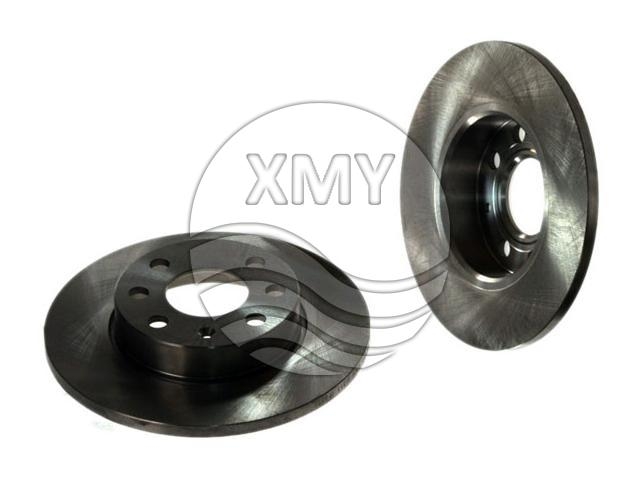

Ref.:9195981
Front Axle
Height : 41 mm
Diameter : 240 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 11.0 mm
Minimum Thickness : 8 mm
Num. of holes : 6
Solid or Vented : S
Weight : 3.3 kg -

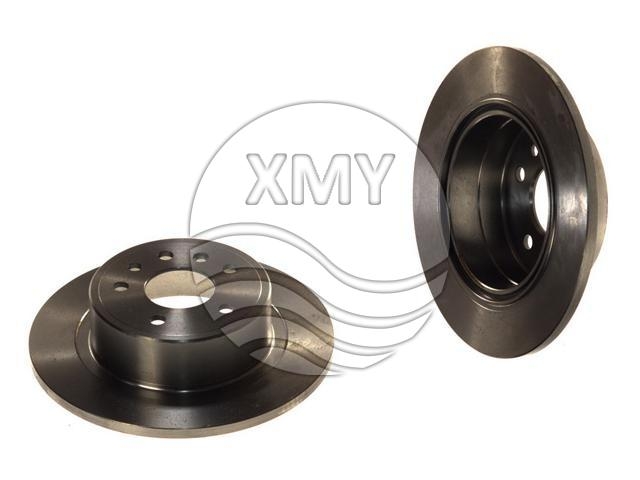

Ref.:90444513
Rear Axle
Height : 69.5 mm
Diameter : 286 mm
Centering Diameter : 65.5 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.3 kg -

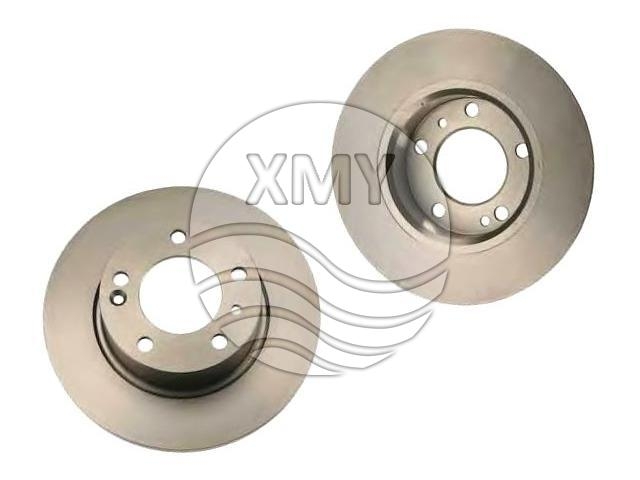

Ref.:95 661 796
Rear Axle
Height : 62.3 mm
Diameter : 251 mm
Centering Diameter : 71 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10.8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4 kg -

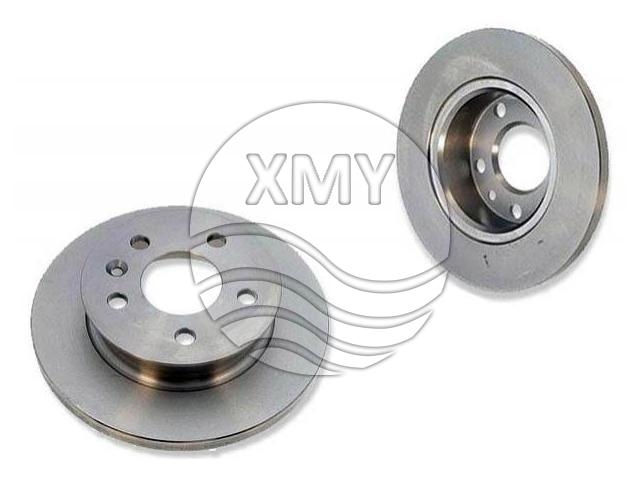

Ref.:251 407 615 Q
Front Axle
Height : 57.5 mm
Diameter : 258 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 16.0 mm
Minimum Thickness : 13 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.33 kg -

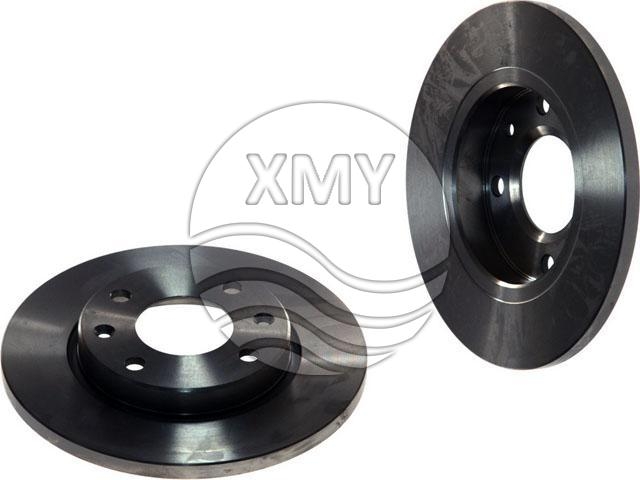

Ref.:4246.R8
Front Axle
Height : 34.2 mm
Diameter : 247.5 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 13.0 mm
Minimum Thickness : 11 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.8 kg -
Ref.:4246.69
Front Axle
Height : 55.5 mm
Diameter : 280 mm
Centering Diameter : 112 mm
Pitch Circle Diameter : 138 mm
Brake Disc Thickness : 14.0 mm
Minimum Thickness : 12.6 mm
Num. of holes : 5
Solid or Vented : S
Weight : 6.09 kg -
Front Axle
Height : 46.2 mm
Diameter : 214 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 15.0 mm
Minimum Thickness : 13 mm
Num. of holes : 4
Solid or Vented : V
Weight : 2.8 kg
