Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-

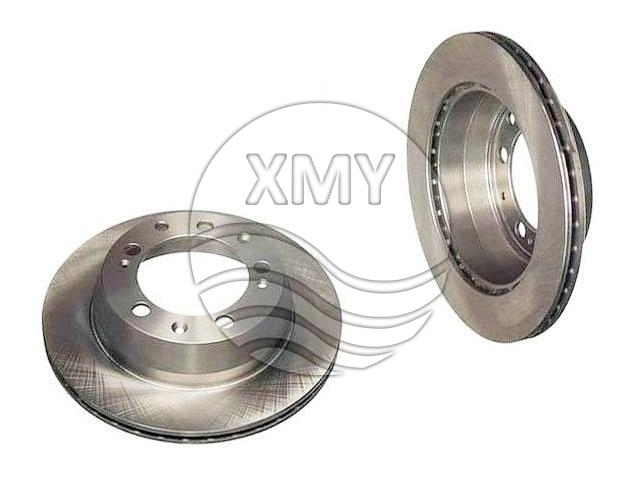

Ref.:928.351.041.02
Rear Axle
Height : 71.2 mm
Diameter : 289 mm
Centering Diameter : 102.8 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 19.9 mm
Minimum Thickness : 18.7 mm
Num. of holes : 5
Solid or Vented : V -

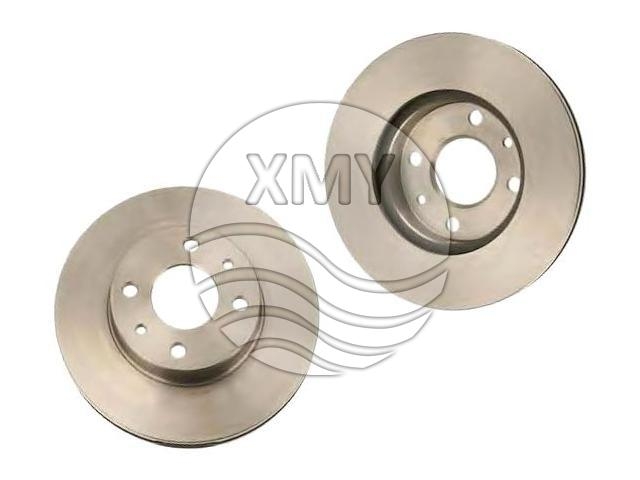

Ref.:7650707
Front Axle
Height : 46.5 mm
Diameter : 240 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.2 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.15 kg -

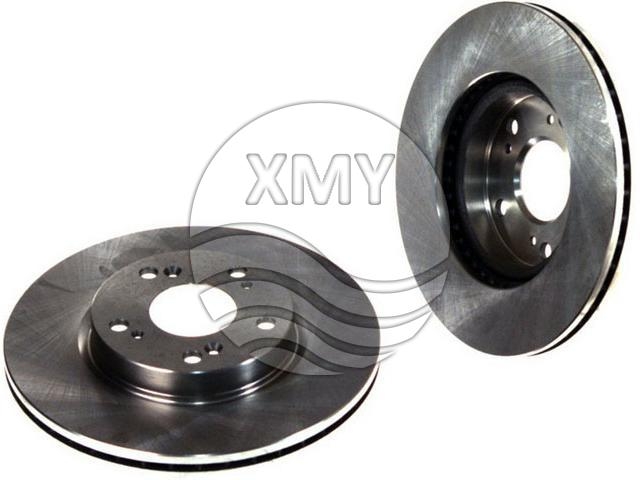

Ref.:45251-S7A-E10
Front Axle
Height : 47.2 mm
Diameter : 282 mm
Centering Diameter : 64.2 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 23 mm
Minimum Thickness : 21 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.4 kg -
Ref.:46758715
Rear Axle
Height : 50.7 mm
Diameter : 251.5 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.5 kg -
Ref.:96 017 878
Front Axle
Height : 29 mm
Diameter : 258 mm
Centering Diameter : 57 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 9 mm
Num. of holes : 3
Solid or Vented : S
Weight : 3.26 kg -

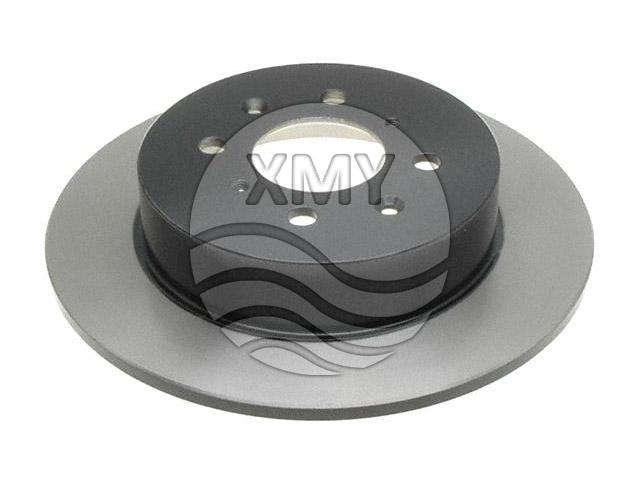

Ref.:42510-S5A-000
Rear Axle
Height : 48.2 mm
Diameter : 260 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.7 kg -

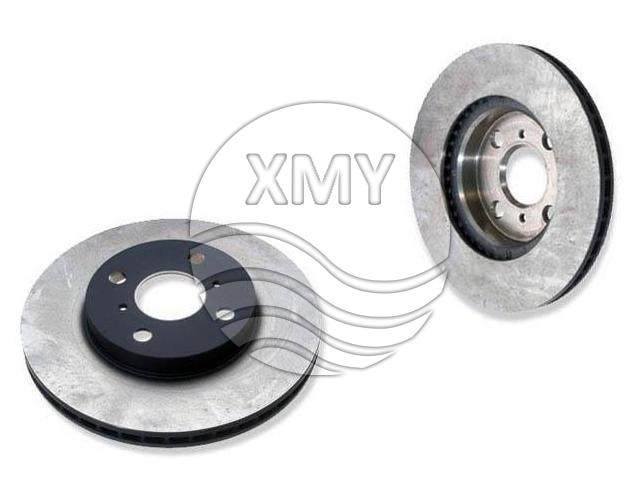

Ref.:43512-17120
Front Axle
Height : 43.1 mm
Diameter : 255 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.7 kg -
Ref.:55311-62G02
Front Axle
Height : 50 mm
Diameter : 246 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.7 kg -
Ref.:GBD90801
Front Axle
Height : 51 mm
Diameter : 262 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.20 kg -

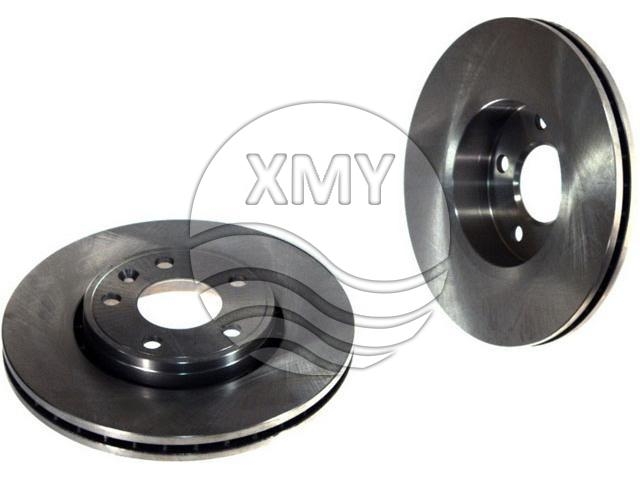

Ref.:77 01 206 845
Front Axle
Height : 49.7 mm
Diameter : 305 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 24 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9 kg
