Ref.:8D0 615 301 K
Front Axle
Height : 46.5 mm
Diameter : 321 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.9 kg -
Ref.:8D0 615 301 J
Front Axle
Height : 46.5 mm
Diameter : 312 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Solid or Vented : V
Weight : 8.8 kg -
Ref.:8D0 615 301 A
Front Axle
Height : 46.5 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 13.0 mm
Minimum Thickness : 11 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.8 kg -
Ref.:8A0 615 301 A
Front Axle
Height : 56.5 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.7 kg -
Ref.:8A0 615 301
Front Axle
Height : 56.5 mm
Diameter : 280 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 13.0 mm
Minimum Thickness : 11 mm
Num. of holes : 4
Solid or Vented : S
Weight : 5.1 kg -
Ref.:895 615 301 B
Front Axle
Height : 56.5 mm
Diameter : 276 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 4
Solid or Vented : V
Weight : 7 kg -
Front Axle
Height : 56.5 mm
Diameter : 256 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 13.0 mm
Minimum Thickness : 11 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.6 kg -
Rear Axle
Height : 59.5 mm
Diameter : 269 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 19.9 mm
Minimum Thickness : 18 mm
Num. of holes : 10
Solid or Vented : V
Weight : 5.3 kg -
Ref.:853 615 601
Rear Axle
Height : 40 mm
Diameter : 245 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.2 kg -

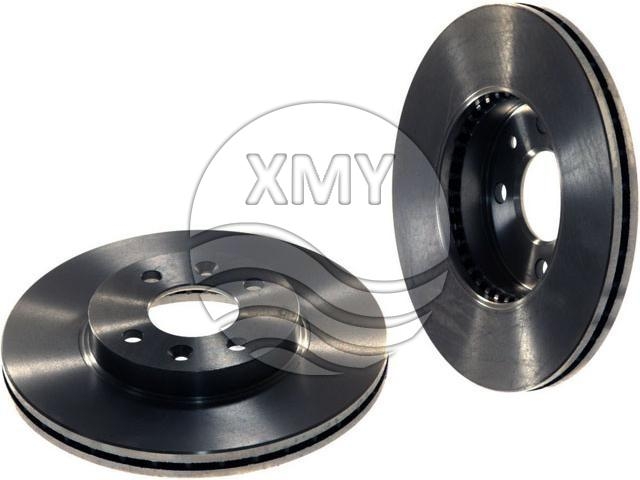

Ref.:8481 665
Front Axle
Height : 44 mm
Diameter : 262 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19.8 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.8 kg
