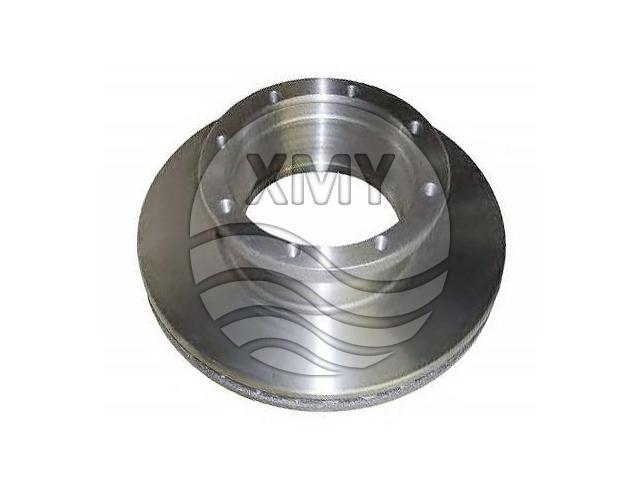

Ref.:975 423 00 12
Rear Axle
Height : 138 mm
Diameter : 377 mm
Centering Diameter : 176 mm
Pitch Circle Diameter : 201 mm
Brake Disc Thickness : 45.0 mm
Minimum Thickness : 37 mm
Solid or Vented : V
Weight : 26 kg -

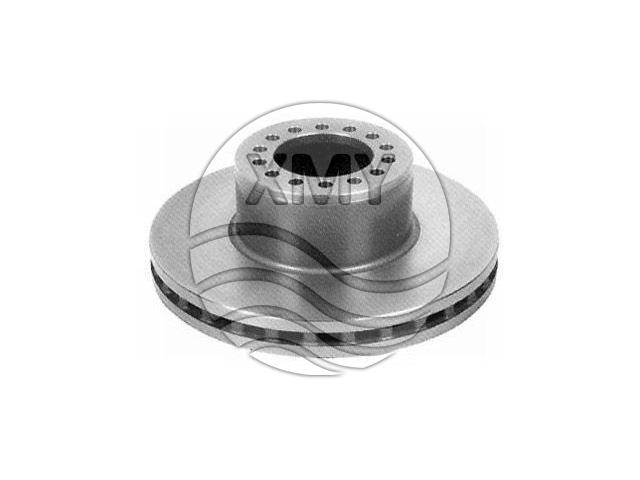

Ref.:975 421 02 12
Front Axle
Height : 134 mm
Diameter : 377 mm
Centering Diameter : 168 mm
Pitch Circle Diameter : 168 mm
Brake Disc Thickness : 45 mm
Minimum Thickness : 37 mm
Num. of holes : 14
Solid or Vented : V
Weight : 23.9 kg -
Ref.:970 423 07 12
Rear Axle
Height : 111 mm
Diameter : 335 mm
Centering Diameter : 152 mm
Pitch Circle Diameter : 152 mm
Brake Disc Thickness : 34 mm
Minimum Thickness : 28 mm
Num. of holes : 8
Solid or Vented : V
Weight : 14.8 kg -
Ref.:970 421 00 12
Front Axle
Height : 102 mm
Diameter : 335 mm
Centering Diameter : 91.6 mm
Pitch Circle Diameter : 146 mm
Brake Disc Thickness : 34 mm
Minimum Thickness : 31 mm
Num. of holes : 10
Solid or Vented : V
Weight : 14.9 kg -
Rear Axle
Height : 57.5 mm
Diameter : 224 mm
Centering Diameter : 71.1 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 7 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.6 kg -

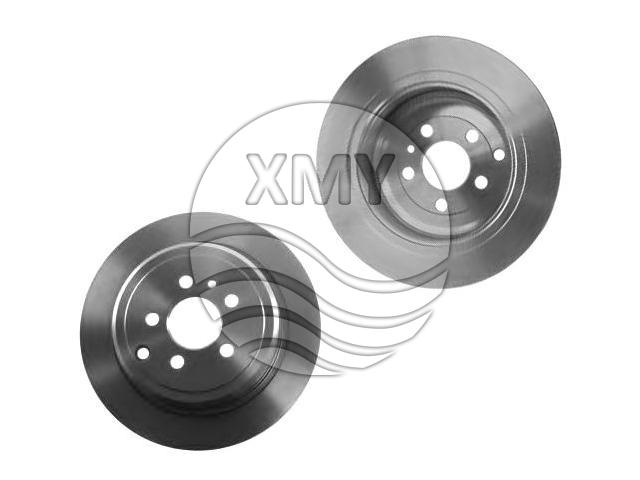

Ref.:956 692 8380
Rear Axle
Height : 56 mm
Diameter : 295 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5 kg -

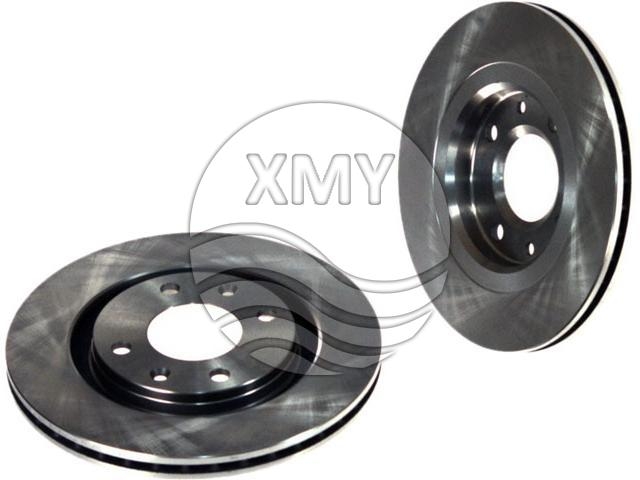

Ref.:95 632 048
Front Axle
Height : 27.4 mm
Diameter : 265.5 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 20.1 mm
Minimum Thickness : 18.5 mm
Num. of holes : 4
Solid or Vented : RV
Weight : 4.7 kg -

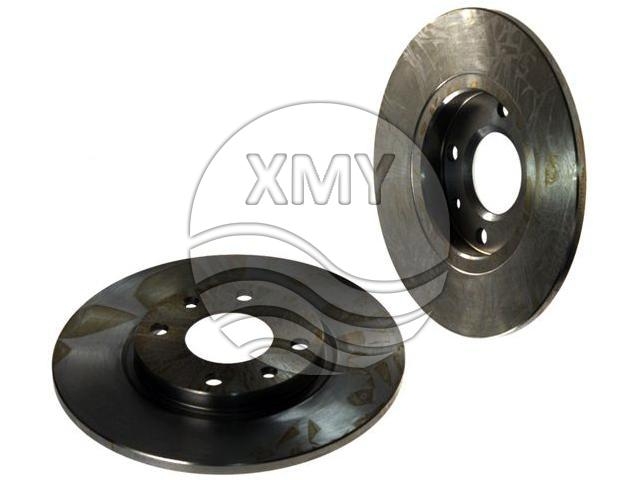

Ref.:95 575 080
Front Axle
Height : 27 mm
Diameter : 266 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.5 kg -

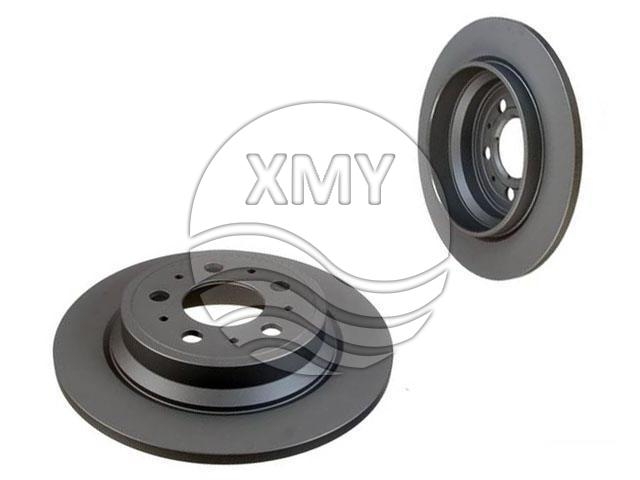

Ref.:9434 167
Rear Axle
Height : 64.8 mm
Diameter : 288 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11.9 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.4 kg -

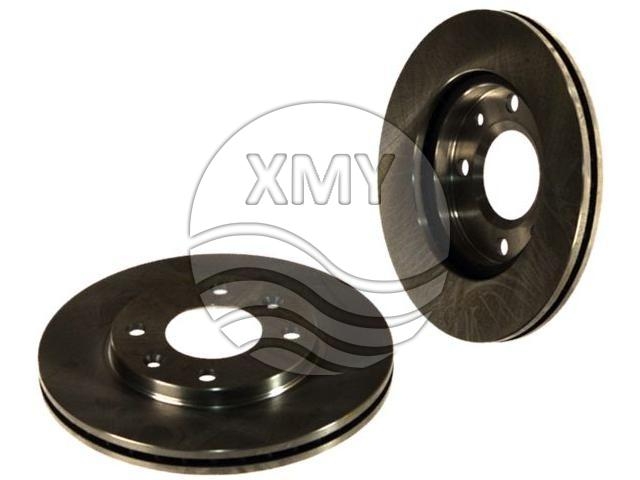

Ref.:91 517 695
Front Axle
Height : 34.2 mm
Diameter : 247 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 20.4 mm
Minimum Thickness : 18.5 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.15 kg
