Ref.:91 508 338
Front Axle
Height : 34.2 mm
Diameter : 247 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.1 kg -
Ref.:904 423 03 12
Rear Axle
Height : 93 mm
Diameter : 285 mm
Centering Diameter : 120 mm
Pitch Circle Diameter : 145 mm
Brake Disc Thickness : 21.9 mm
Minimum Thickness : 19 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7.3 kg -
Ref.:901 423 06 12
Rear Axle
Height : 96.7 mm
Diameter : 258 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 6.2 kg -
Ref.:901 421 03 12
Front Axle
Height : 77 mm
Diameter : 275.6 mm
Centering Diameter : 85.1 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 22.1 mm
Minimum Thickness : 19 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.5 kg -
Ref.:9 196 592
Rear Axle
Height : 40.5 mm
Diameter : 240 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.2 mm
Minimum Thickness : 8.2 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.1 kg -
Ref.:9 196 587
Rear Axle
Height : 42 mm
Diameter : 240 mm
Centering Diameter : 57 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9.8 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.8 kg -
Ref.:9 194 477
Front Axle
Height : 42 mm
Diameter : 308 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.3 kg -
Ref.:9 160 398
Front Axle
Height : 61.5 mm
Diameter : 280 mm
Centering Diameter : 79.5 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 21 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7.3 kg -

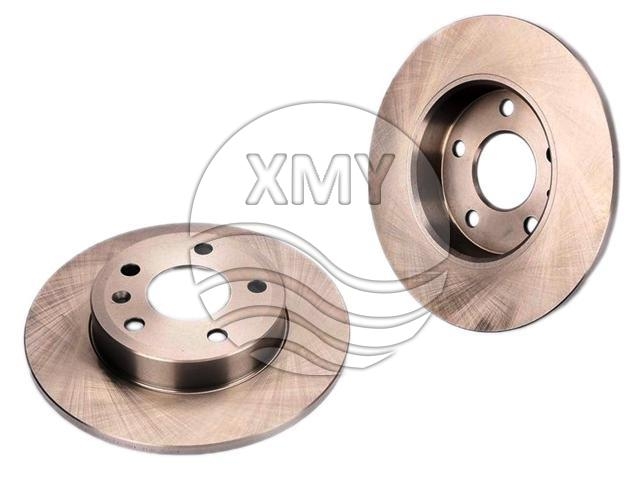

Ref.:9 117 772
Rear Axle
Height : 42 mm
Diameter : 264 mm
Centering Diameter : 65.5 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 9.8 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 3.65 kg -

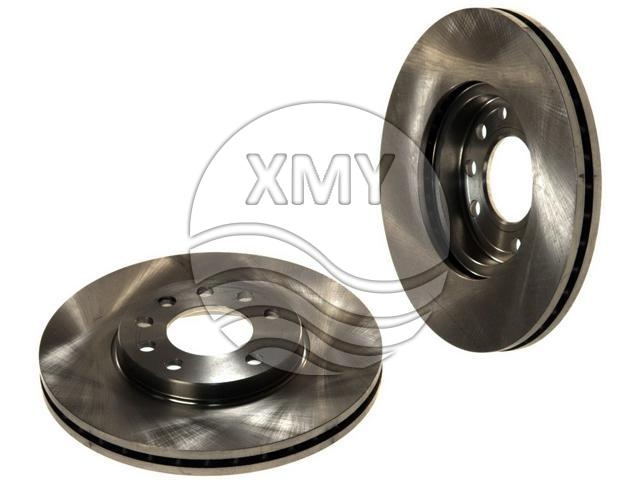

Ref.:9 117 678
Front Axle
Height : 42 mm
Diameter : 280 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 24.8 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.5 kg
