Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-

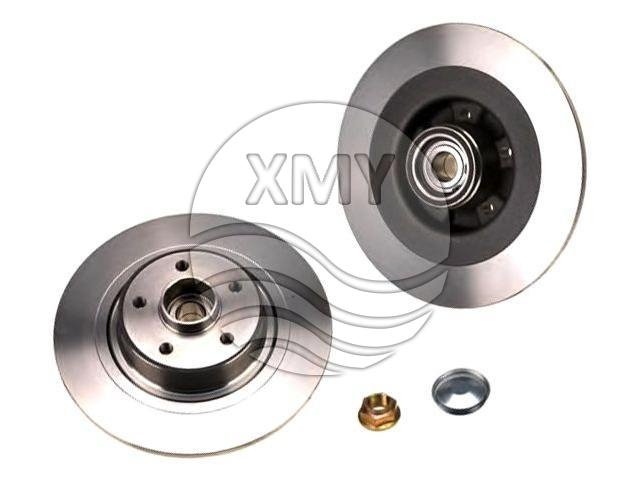

Ref.:82 00 663 193
Rear Axle
Height : 84.7 mm
Diameter : 300 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9.5 mm
Num. of holes : 5
Solid or Vented : S
Weight : 8.3 kg -

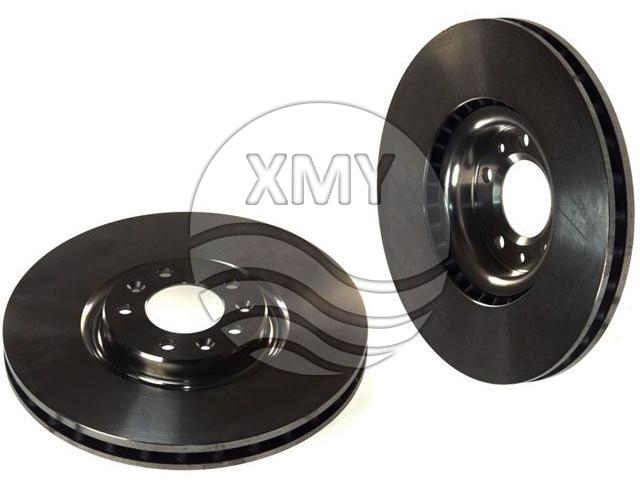

Ref.:4249.77
Front Axle
Height : 48 mm
Diameter : 330 mm
Centering Diameter : 71.1 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10 kg -

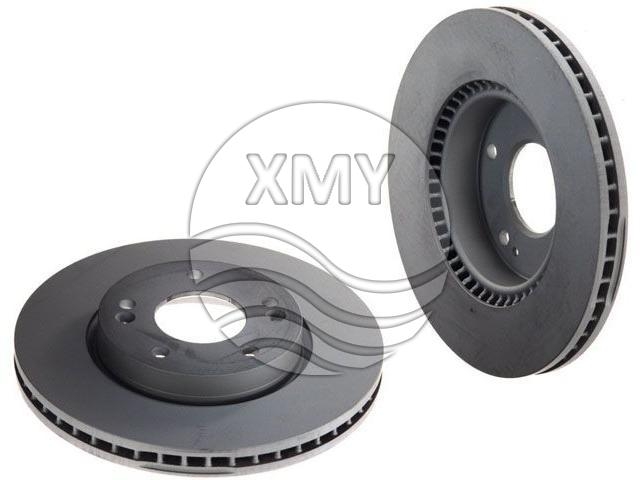

Ref.:51712-2K100
Front Axle
Height : 47.2 mm
Diameter : 280 mm
Centering Diameter : 69 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 26.0 mm
Minimum Thickness : 24.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.1 kg -
Ref.:58411-2K300
Rear Axle
Height : 64 mm
Diameter : 262 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.3 kg -
Ref.:219 421 01 12
Front Axle
Height : 64.5 mm
Diameter : 350 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30 mm
Num. of holes : 5
Solid or Vented : V
Weight : 12.9 kg -
Ref.:45251-TL0-G50
Front Axle
Height : 47.2 mm
Diameter : 320 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30 mm
Num. of holes : 5
Solid or Vented : V
Weight : 10.2 kg -
Rear Axle
Height : 60 mm
Diameter : 305 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.77 kg -
Ref.:45251-TL1-G00
Front Axle
Height : 47.2 mm
Diameter : 296 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8 kg -
Front Axle
Height : 104 mm
Diameter : 330 mm
Centering Diameter : 135 mm
Pitch Circle Diameter : 158 mm
Brake Disc Thickness : 34 mm
Minimum Thickness : 26 mm
Num. of holes : 10
Solid or Vented : V
Weight : 16.5 kg -

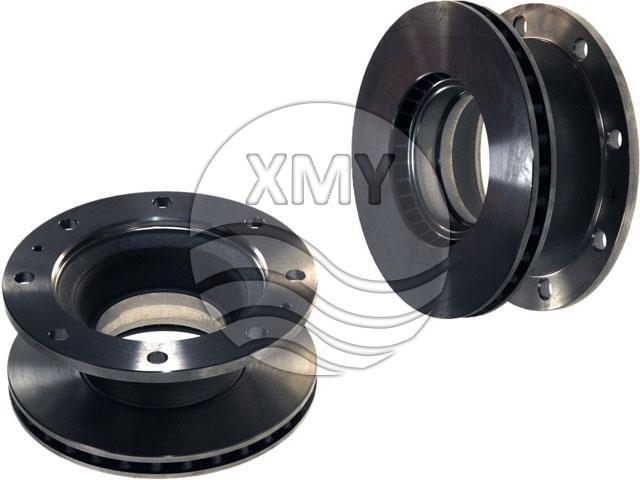

Ref.:1907530
Rear Axle
Height : 134 mm
Diameter : 322 mm
Centering Diameter : 215 mm
Pitch Circle Diameter : 275 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 27.75 mm
Num. of holes : 8
Solid or Vented : V
Weight : 17.4 kg
