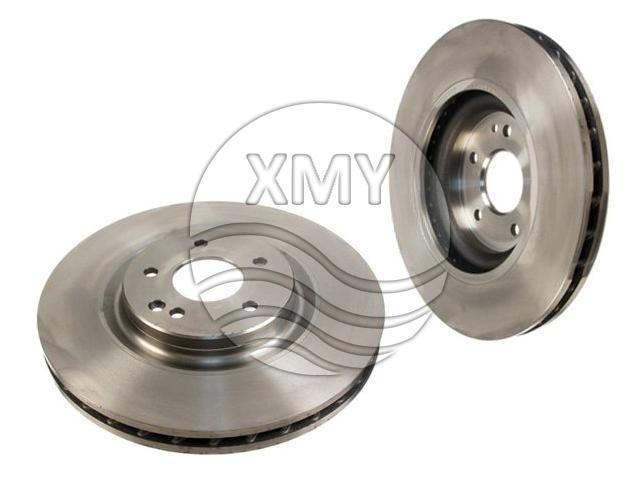

Ref.:129 421 21 12
Front Axle
Height : 51.5 mm
Diameter : 334 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30 mm
Num. of holes : 5
Solid or Vented : V
Weight : 11.3 kg -
Rear Axle
Height : 76.8 mm
Diameter : 310 mm
Centering Diameter : 67 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V -

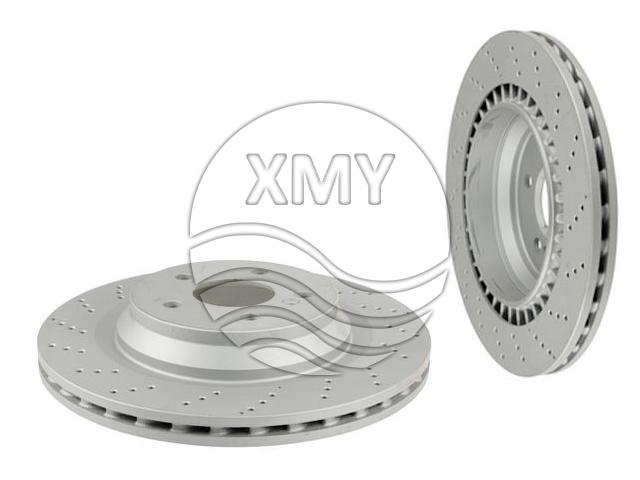

Ref.:230 423 15 12
Rear Axle
Height : 58.2 mm
Diameter : 320 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented :P/ V
Weight : 8.1 kg -
Front Axle
Height : 47 mm
Diameter : 282 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:34 11 6 767 353
Front Axle
Height : 81 mm
Diameter : 348 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 36 mm
Minimum Thickness : 34.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 13.5 kg -
Ref.:43512-50191
Front Axle
Height : 50.5 mm
Diameter : 315 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 30.00 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:42431-50060
Rear Axle
Height : 67.5 mm
Diameter : 310 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 16 mm
Minimum Thickness : 14.5 mm
Num. of holes : 5
Solid or Vented : V -

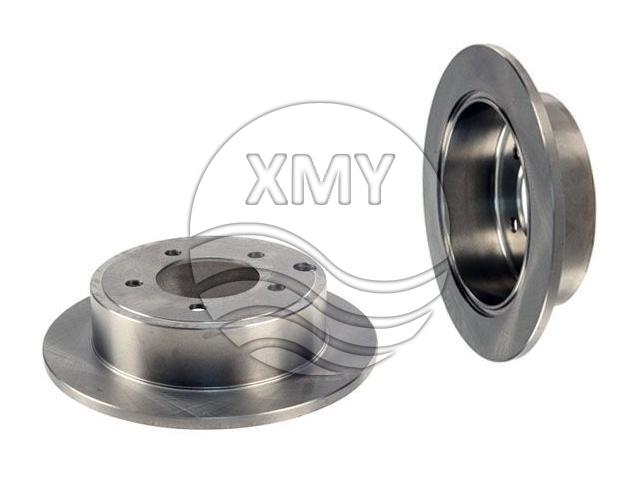

Ref.:MN116332
Rear Axle
Height : 60.2 mm
Diameter : 262 mm
Centering Diameter : 80 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.4 mm
Num. of holes : 5
Solid or Vented : S -
Ref.:EH14-33-25XA
Front Axle
Height : 48.2 mm
Diameter : 320 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : S -
Rear Axle
Height : 102 mm
Diameter : 300 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9.5 mm
Num. of holes : 5
Solid or Vented : S
