Ref.:668 423 05 12
Rear Axle
Height : 121 mm
Diameter : 324 mm
Centering Diameter : 119 mm
Pitch Circle Diameter : 192 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 27 mm
Num. of holes : 6
Solid or Vented : V
Weight : 15 kg -
Front Axle
Height : 47 mm
Diameter : 260 mm
Centering Diameter : 64 mm
Brake Disc Thickness : 23 mm
Minimum Thickness : 21 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5 kg -
Ref.:81.50803.0042
Front Axle
Height : 93 mm
Diameter : 335 mm
Centering Diameter : 90 mm
Pitch Circle Diameter : 122 mm
Brake Disc Thickness : 34 mm
Minimum Thickness : 26 mm
Num. of holes : 10
Solid or Vented : V
Weight : 16.6 kg -
Ref.:81.50803.0063
Rear Axle
Height : 118 mm
Diameter : 335 mm
Centering Diameter : 125 mm
Pitch Circle Diameter : 176 mm
Brake Disc Thickness : 34 mm
Minimum Thickness : 26 mm
Num. of holes : 10
Solid or Vented : V
Weight : 17.5 kg -
Ref.:42510-TG5-H00
Rear Axle
Height : 33.2 mm
Diameter : 239 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.7 kg -
Ref.:51815312
Front Axle
Height : 39.7 mm
Diameter : 281 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 26 mm
Minimum Thickness : 24.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.5 kg -
Ref.:42431-21010
Rear Axle
Height : 55.7 mm
Diameter : 288 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.7 kg -
Ref.:43512-68011
Front Axle
Height : 49.3 mm
Diameter : 275 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.5 kg -
Ref.:1 569 253
Front Axle
Height : 52 mm
Diameter : 336 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 11.5 kg -

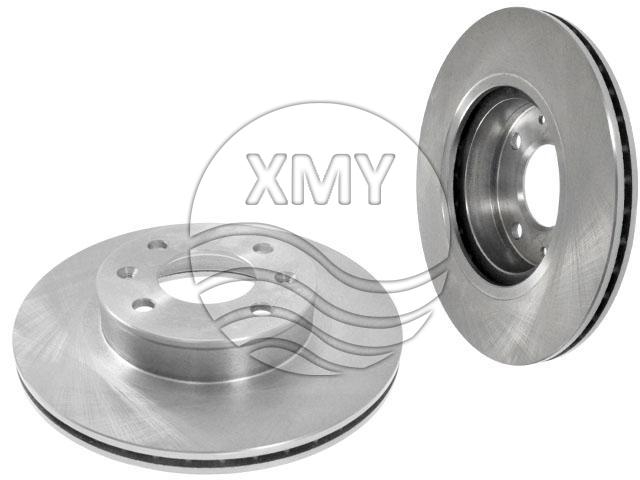

Ref.:51712-07700
Front Axle
Height : 49
Diameter : 252 mm
Centering Diameter : 62.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18.0 mm
Minimum Thickness : 16 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.5 kg
