Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-

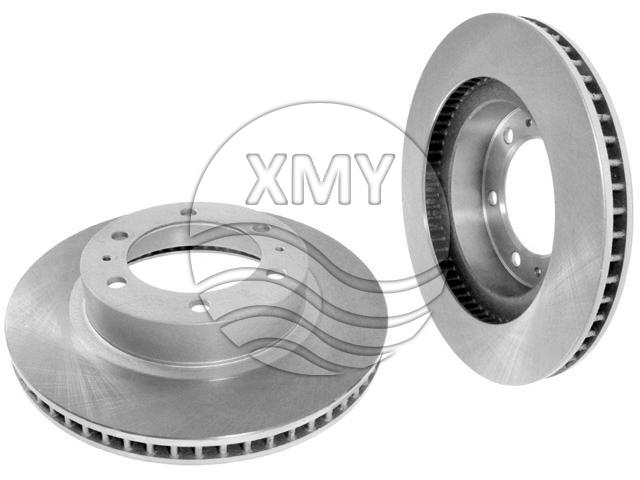

Ref.:43512-0K090
Front Axle
Height : 67.2 mm
Diameter : 319 mm
Centering Diameter : 108 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Number Of Holes : 6
Solid Or Vented : V
Weight : 8.4 kg -
Front Axle
Height : 46.3 mm
Diameter : 249 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Number Of Holes : 4
Solid Or Vented : V
Weight : 4.8 kg -

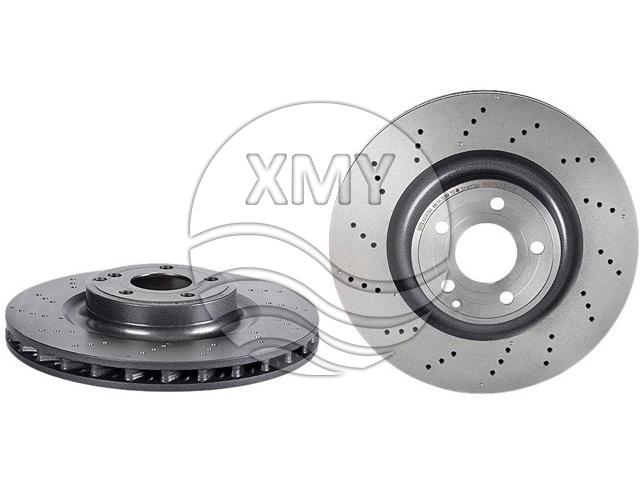

Ref.:172 421 02 12
Front Axle
Height : 64.5 mm
Diameter : 344 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 32 mm
Minimum Thickness : 30 mm
Number Of Holes : 5
Solid Or Vented : P/V
Weight : 11.6 kg -

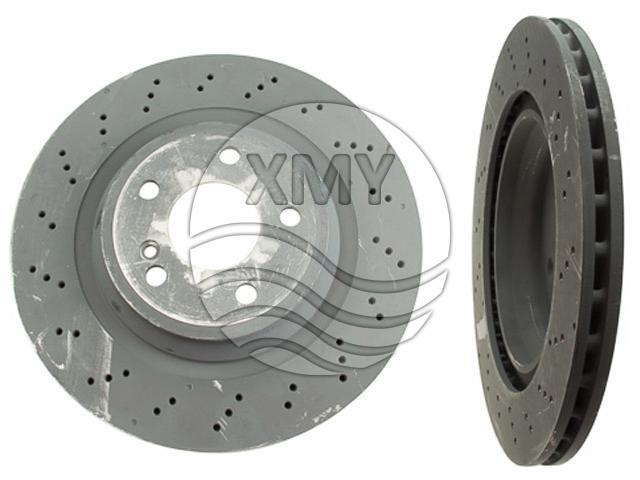

Ref.:231 423 05 12
Rear Axle
Height : 50.5 mm
Diameter : 320 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Number Of Holes : 5
Solid Or Vented : P/V
Weight : 7.3 kg -
Ref.:231 423 04 12
Rear Axle
Height : 50.5 mm
Diameter : 320 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 21.4 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 7.3 kg -
Front Axle
Height : 58.3 mm
Diameter : 275 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 26 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 7.1 kg -

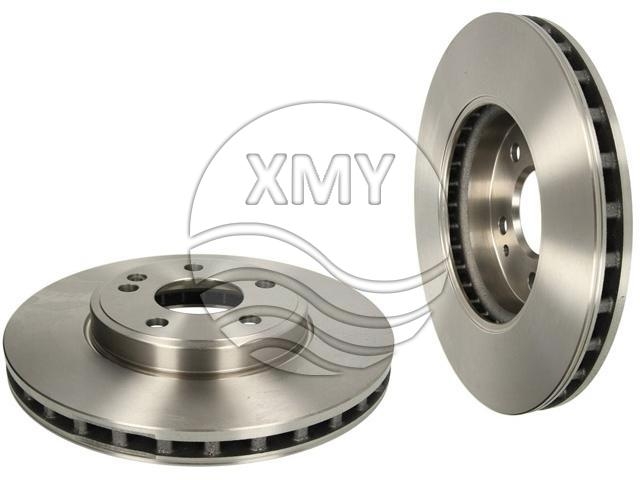

Ref.:246 421 01 12
Front Axle
Height : 51.1 mm
Diameter : 295 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 28 mm
Minimum Thickness : 25.4 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 7.4 kg -
Rear Axle
Height : 69 mm
Diameter : 330 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18.4 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 8.1 kg -

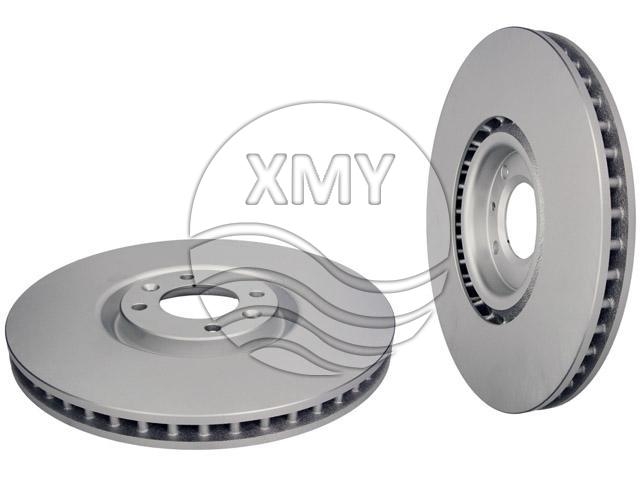

Ref.:4249F6
Front Axle
Height : 30 mm
Diameter : 340 mm
Centering Diameter : 71 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28 mm
Number Of Holes : 4
Solid Or Vented : V
Weight : 10.4 kg -
Front Axle
Height : 66.1 mm
Diameter : 348 mm
Centering Diameter : 75 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 28.4 mm
Number Of Holes : 5
Solid Or Vented : V
Weight : 11.7 kg
