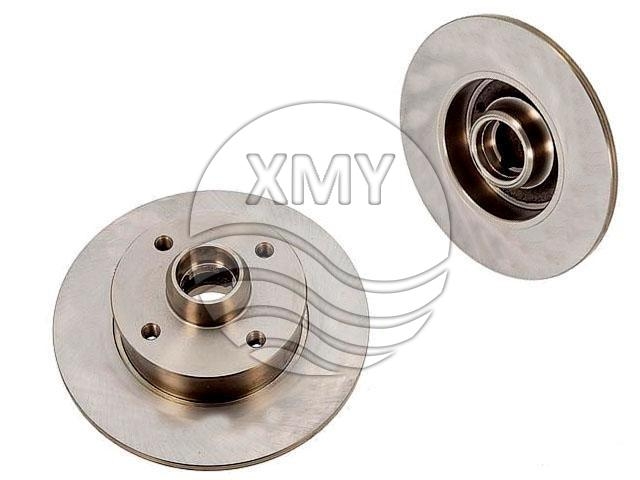

Ref.:191 615 601 B
Rear Axle
Height : 71.2 mm
Diameter : 226 mm
Centering Diameter : 39.8 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.4 kg -

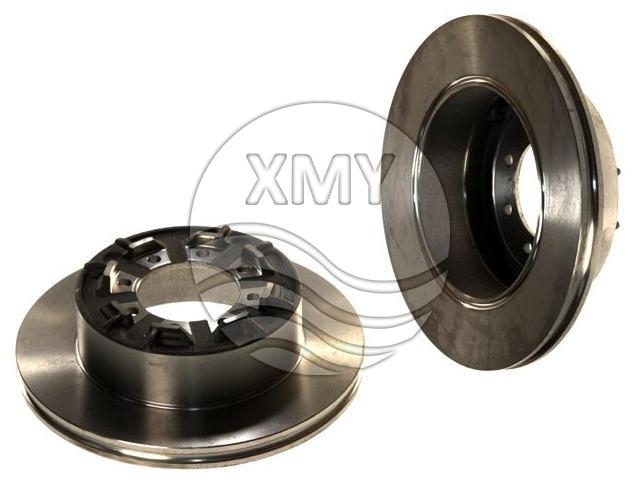

Ref.:1908773
Rear Axle
Height : 85 mm
Diameter : 289 mm
Centering Diameter : 84 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 19 mm
Num. of holes : 8
Solid or Vented : S
Weight : 9.5 kg -

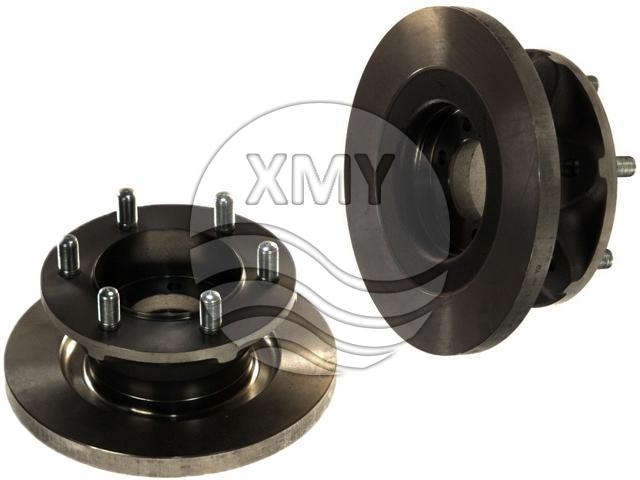

Ref.:1908772
Front Axle
Height : 111 mm
Diameter : 290 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 170 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 19 mm
Num. of holes : 6
Solid or Vented : S
Weight : 14.5 kg -
Ref.:1908729
Front Axle
Height : 101 mm
Diameter : 430 mm
Centering Diameter : 170 mm
Pitch Circle Diameter : 195 mm
Brake Disc Thickness : 50 mm
Minimum Thickness : 46 mm
Solid or Vented : V
Weight : 37.6 kg -

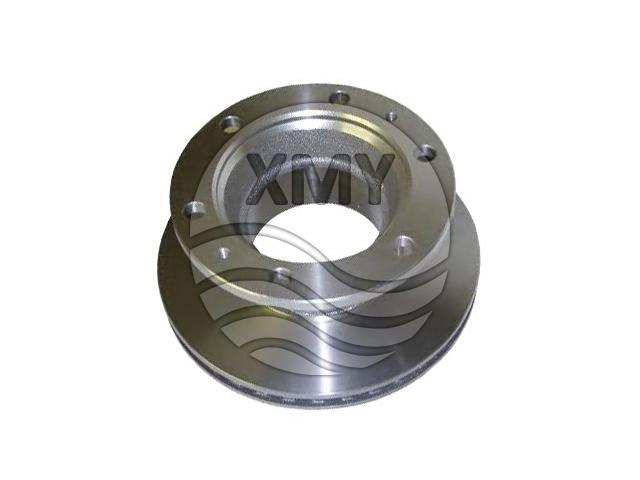

Ref.:1907725
Front Axle
Height : 129 mm
Diameter : 304 mm
Centering Diameter : 165 mm
Pitch Circle Diameter : 205 mm
Brake Disc Thickness : 30 mm
Minimum Thickness : 27.8 mm
Num. of holes : 6
Solid or Vented : V
Weight : 13.8 kg -
Ref.:1906461
Front Axle, Rear Axle
Height : 138 mm
Diameter : 436 mm
Centering Diameter : 210 mm
Pitch Circle Diameter : 240 mm
Brake Disc Thickness : 45 mm
Minimum Thickness : 37 mm
Solid or Vented : V
Weight : 38.1 kg -

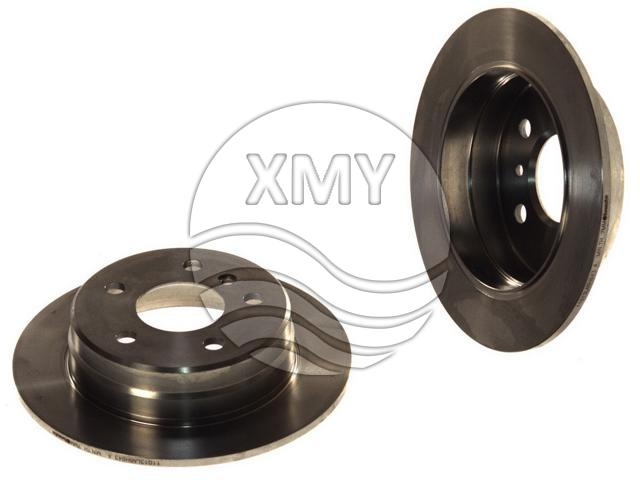

Ref.:169 423 03 12
Rear Axle
Height : 57.3 mm
Diameter : 258 mm
Centering Diameter : 67.1 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 8.0 mm
Minimum Thickness : 7 mm
Num. of holes : 5
Solid or Vented : S
Weight : 3.3 kg -

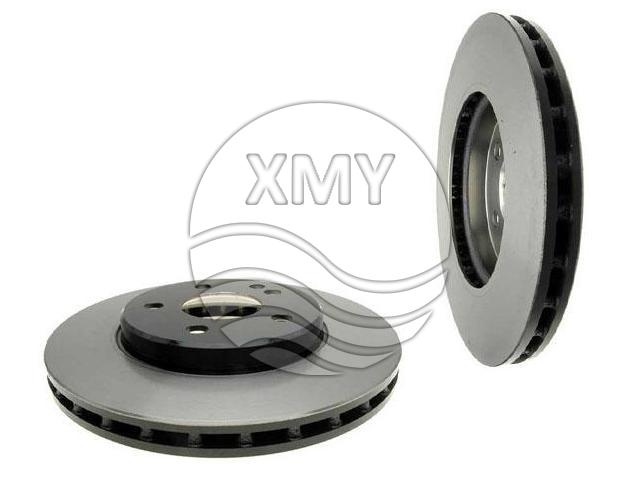

Ref.:169 421 02 12
Front Axle
Height : 44.2 mm
Diameter : 288 mm
Centering Diameter : 67.1 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 22.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.1 kg -

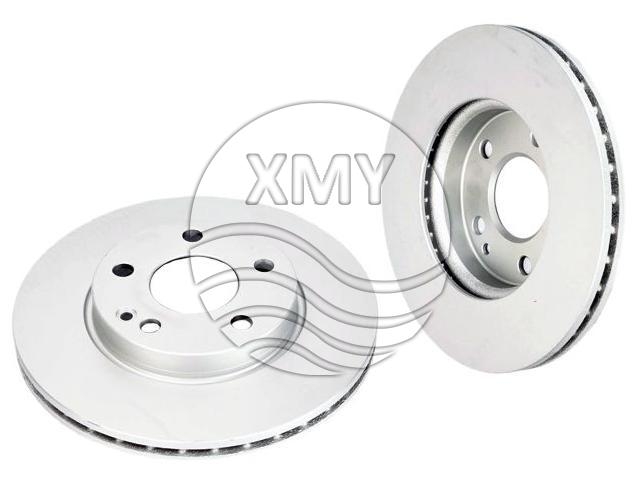

Ref.:169 421 01 12
Front Axle
Height : 44.5 mm
Diameter : 276 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 19.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.6 kg -
Front Axle
Height : 44.5 mm
Diameter : 276 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.6 kg
