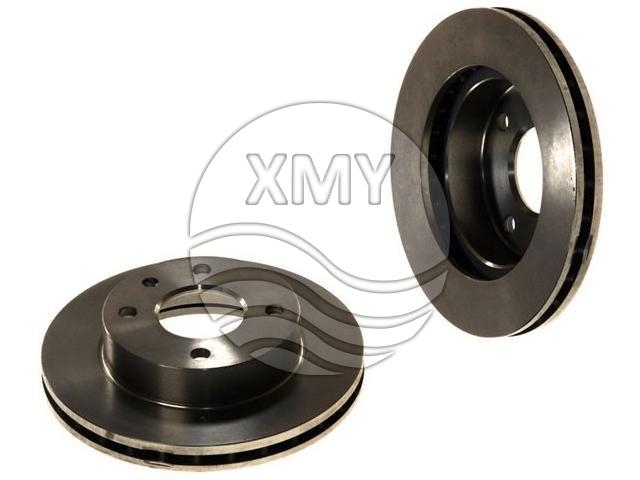

Ref.:1 595 875
Front Axle
Height : 58.1 mm
Diameter : 239.5 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24.2 mm
Minimum Thickness : 22.2 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.3 kg -

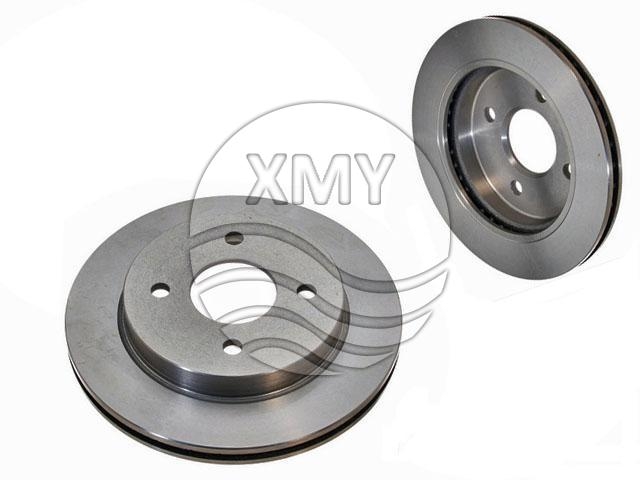

Ref.:1 025 911
Rear Axle
Height : 43.7 mm
Diameter : 253 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.17 kg -

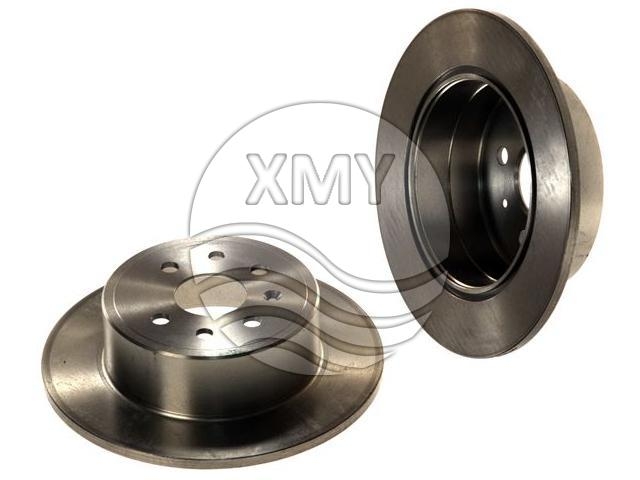

Ref.:0569 209
Rear Axle
Height : 69.3 mm
Diameter : 270 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.4 kg -

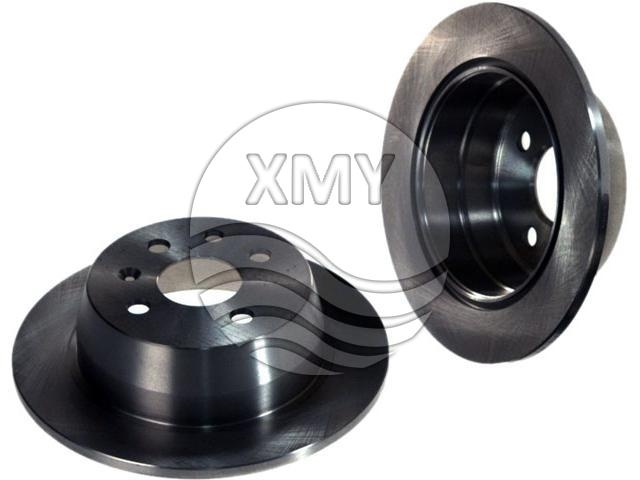

Ref.:0569 206
Rear Axle
Height : 69.2 mm
Diameter : 260 mm
Centering Diameter : 57 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.75 kg -

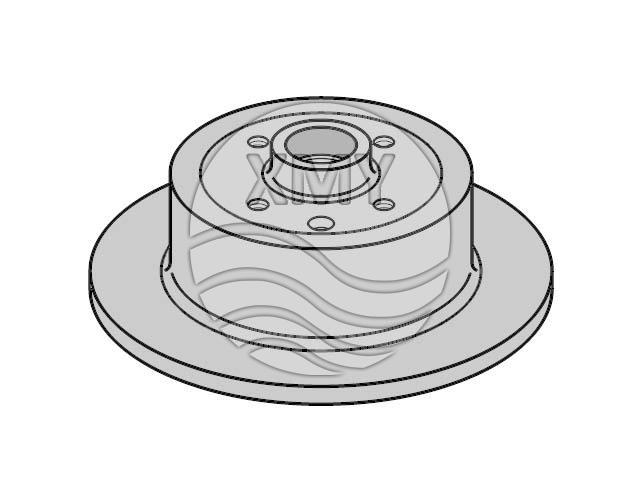

Ref.:0569 204
Rear Axle
Height : 80.1 mm
Diameter : 261 mm
Centering Diameter : 39.8 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 5.95 kg -

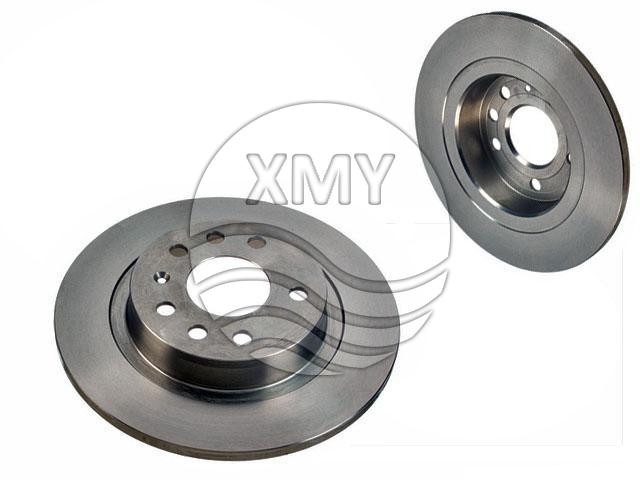

Ref.:0569 115
Rear Axle
Height : 42 mm
Diameter : 278 mm
Centering Diameter : 65.5 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.4 kg -

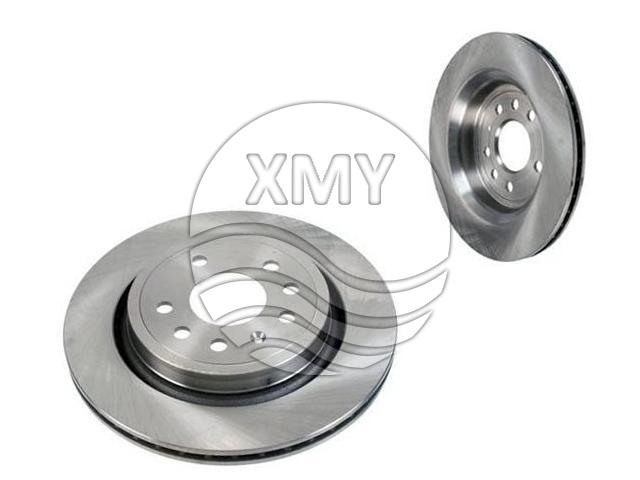

Ref.:0569 114
Rear Axle
Height : 41.5 mm
Diameter : 292 mm
Centering Diameter : 65.5 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 20 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.1 kg -

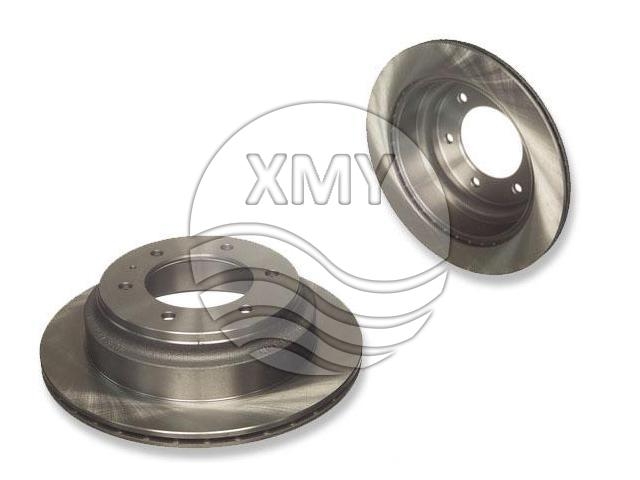

Ref.:0569 104
Rear Axle
Height : 80.2 mm
Diameter : 313.5 mm
Centering Diameter : 101 mm
Pitch Circle Diameter : 139.6 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 16.6 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7 kg -

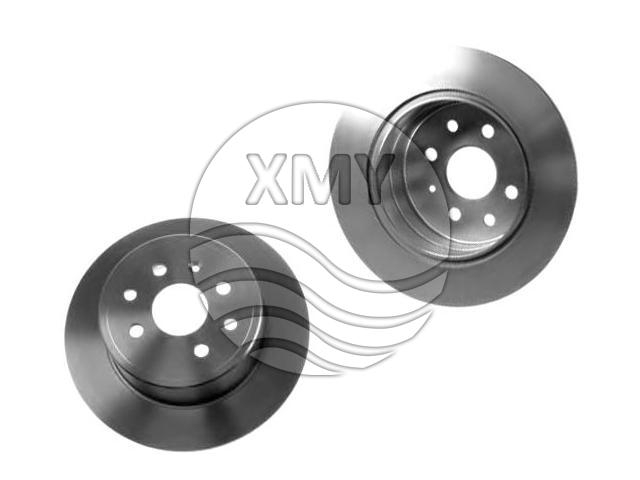

Ref.:0569 102
Rear Axle
Height : 77 mm
Diameter : 270 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9.9 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.7 kg -

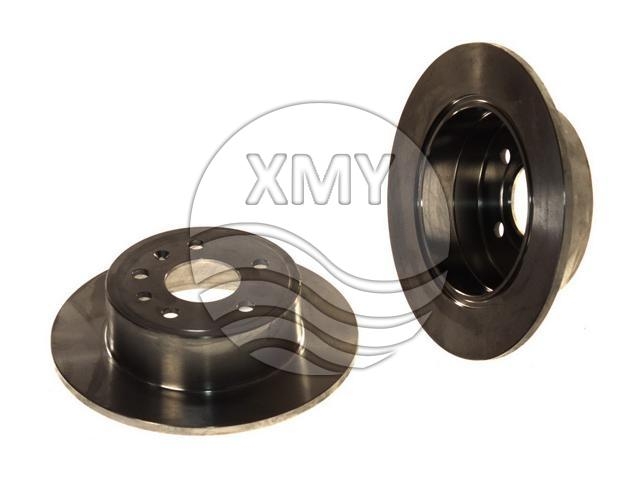

Ref.:0569 101
Rear Axle
Height : 67 mm
Diameter : 270 mm
Centering Diameter : 65.5 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.35 kg
