Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-

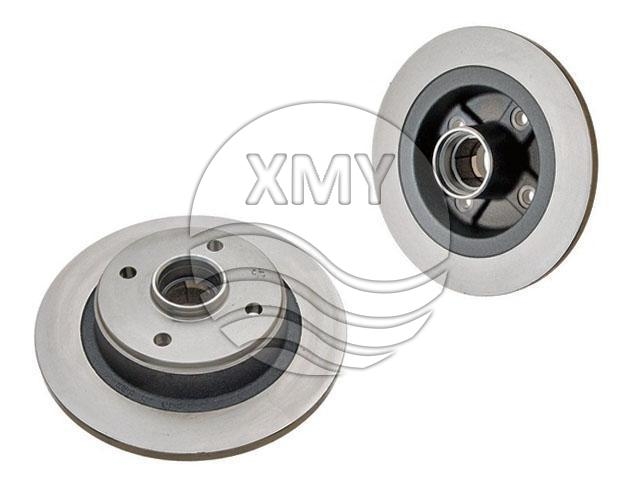

Ref.:42510-SA5-950
Rear Axle
Height : 72 mm
Diameter : 239 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4 kg -

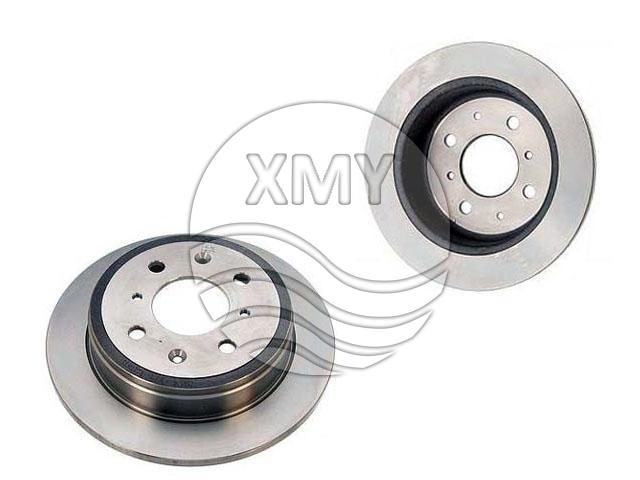

Ref.:42510-SE0-010
Rear Axle
Height : 48.1 mm
Diameter : 238.5 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.2 kg -

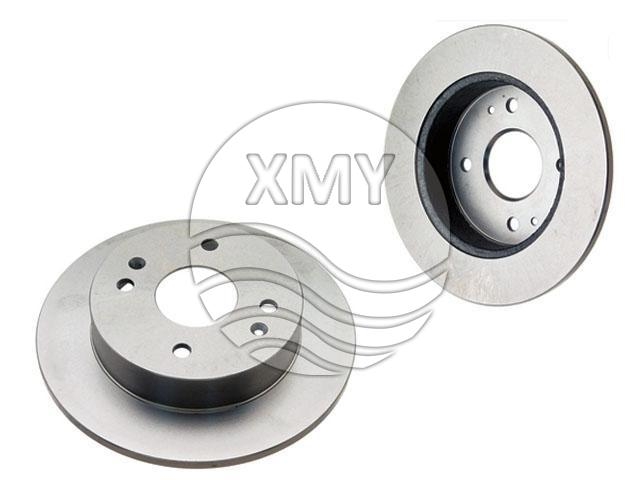

Ref.:42510-SM4-950
Rear Axle
Height : 48.7 mm
Diameter : 260 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.7 kg -

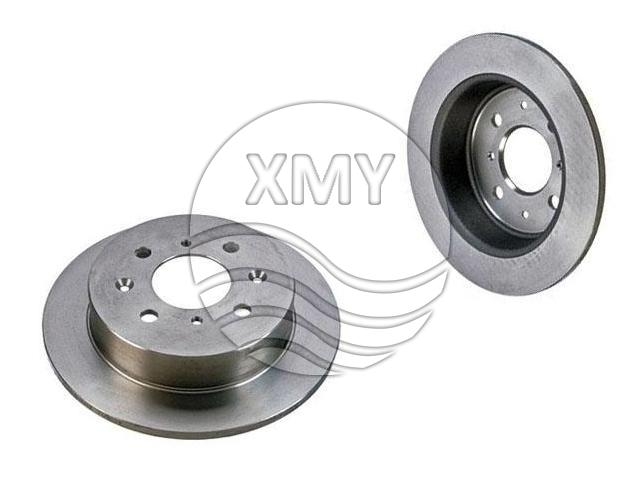

Ref.:42510-SR3-G00
Rear Axle
Height : 47.6 mm
Diameter : 239 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.9 kg -

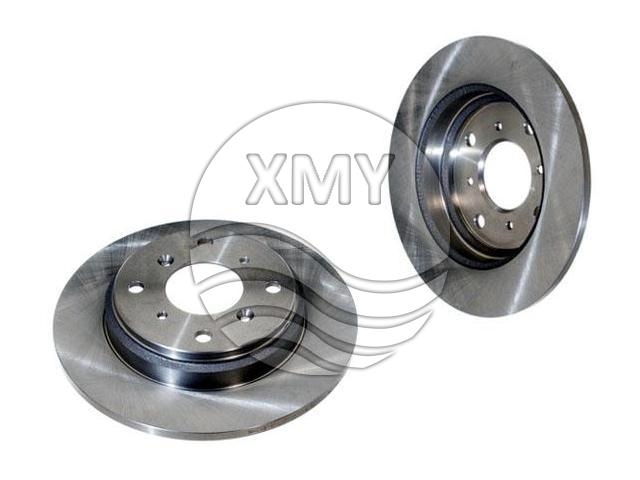

Ref.:42510-SS0-000
Rear Axle
Height : 43.2 mm
Diameter : 260 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.5 kg -

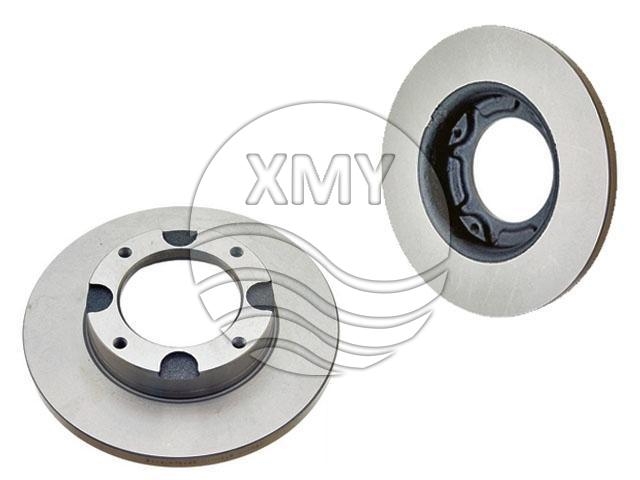

Ref.:45251-671-671
Front Axle
Height : 41.1 mm
Diameter : 231.1 mm
Centering Diameter : 86.1 mm
Pitch Circle Diameter : 116 mm
Brake Disc Thickness : 11.9 mm
Minimum Thickness : 10.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.3 kg -

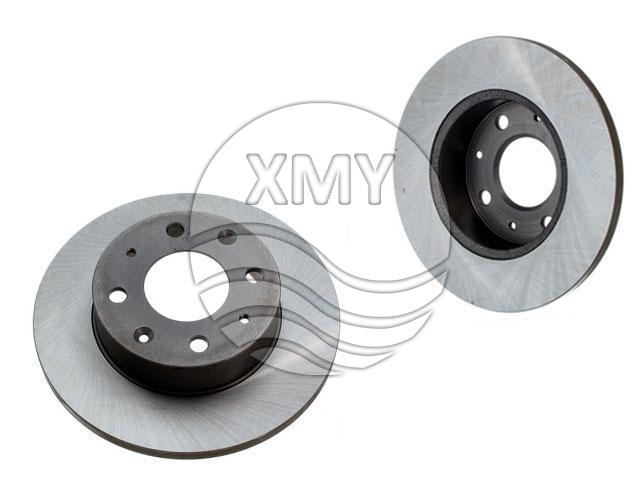

Ref.:45251-SA5-000
Front Axle
Height : 49 mm
Diameter : 230.9 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 11.9 mm
Minimum Thickness : 10.2 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.32 kg -

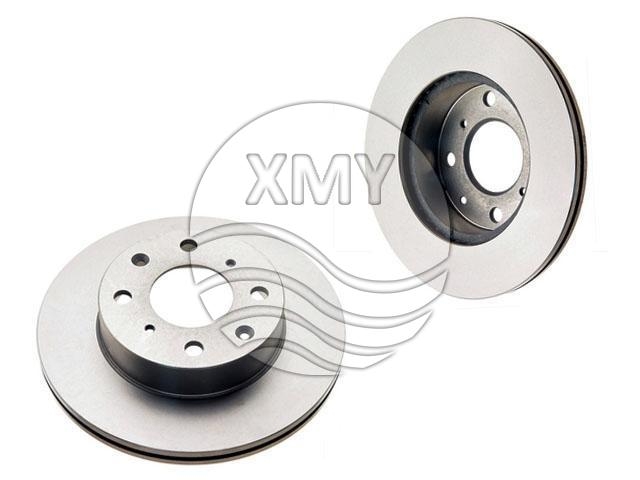

Ref.:45251-SA5-740
Front Axle
Height : 49.6 mm
Diameter : 231 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 17 mm
Minimum Thickness : 15 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.5 kg -

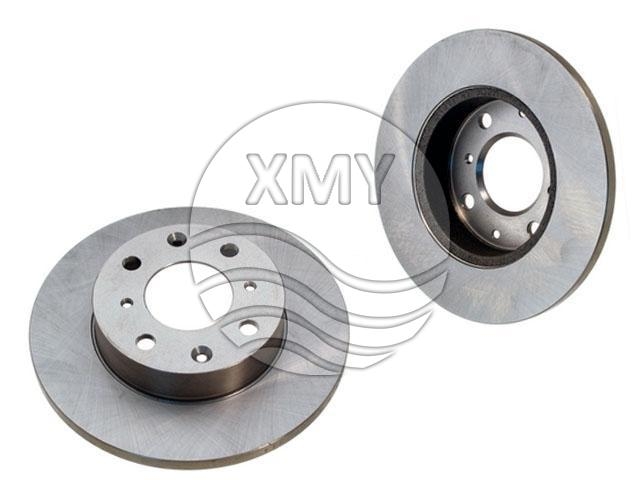

Ref.:45251-SB2-732
Front Axle
Height : 44 mm
Diameter : 231 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.3 kg -

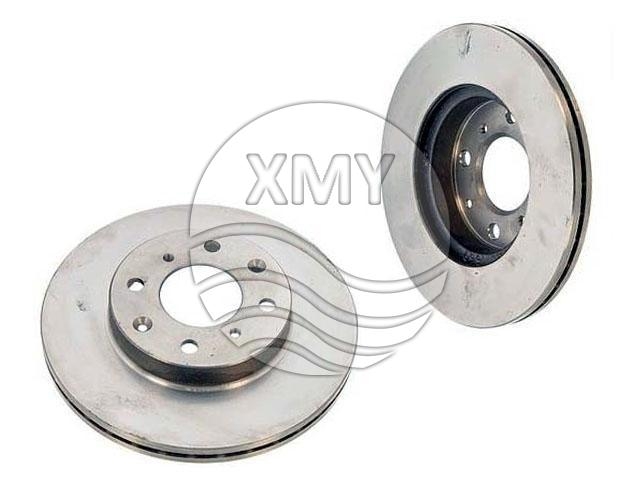

Ref.:45251-SB2-782
Front Axle
Height : 44.1 mm
Diameter : 242 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 19.0 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.2 kg
