Ref.:45251-SB2-932
Front Axle
Height : 44 mm
Diameter : 231 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 17.0 mm
Minimum Thickness : 15 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.45 kg -
Ref.:45251-SBO-000
Front Axle
Height : 49.5 mm
Diameter : 231 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 19.0 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.9 kg -
Ref.:45251-SEO-010
Front Axle
Height : 49.6 mm
Diameter : 242 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 19.0 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4 kg -

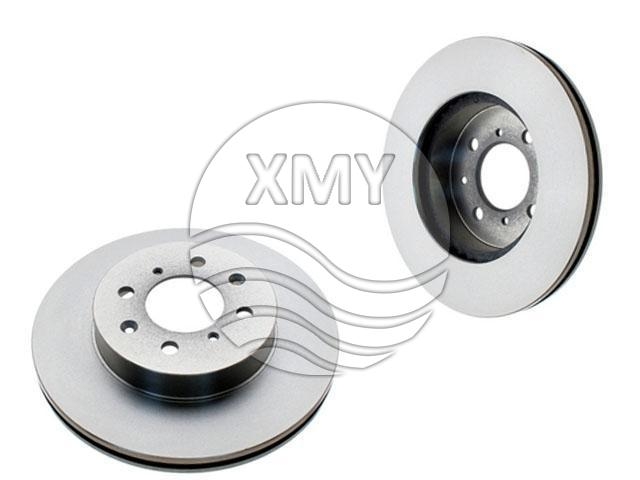

Ref.:45251-SF0-000
Front Axle
Height : 51.2 mm
Diameter : 262 mm
Centering Diameter : 64.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.2 kg -

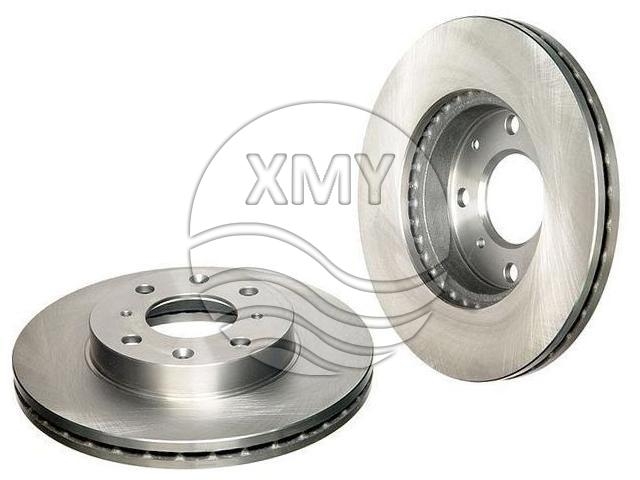

Ref.:45251-SH3-A00
Front Axle
Height : 44.8 mm
Diameter : 240 mm
Centering Diameter : 61 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.35 kg -

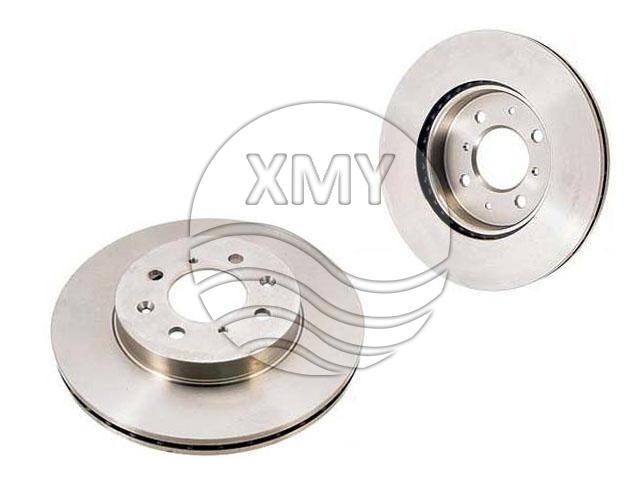

Ref.:45251-SK7-A00
Front Axle
Height : 44.7 mm
Diameter : 262 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 21.0 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5 kg -

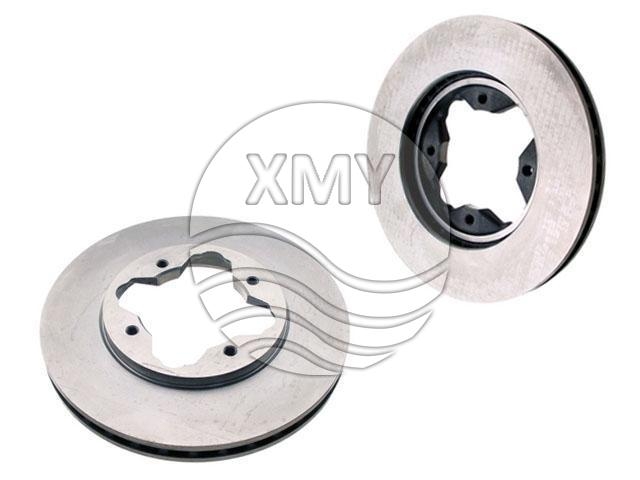

Ref.:45251-SM4-020
Front Axle
Height : 34 mm
Diameter : 260 mm
Centering Diameter : 92 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 23.0 mm
Minimum Thickness : 21 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.8 kg -

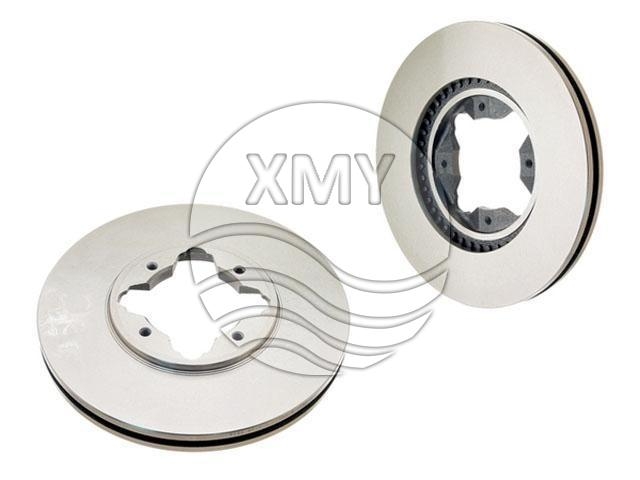

Front Axle
Height : 34.5 mm
Diameter : 282 mm
Centering Diameter : 92 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.5 kg -

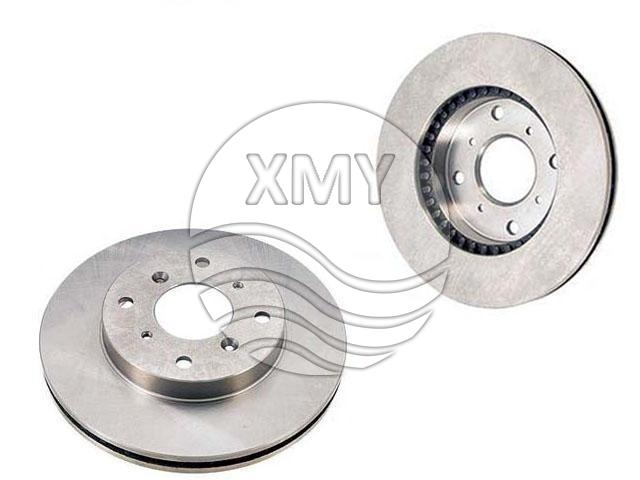

Ref.:45251-SSO-000
Front Axle
Height : 47.2 mm
Diameter : 260 mm
Centering Diameter : 64.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 23.0 mm
Minimum Thickness : 21 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.1 kg -

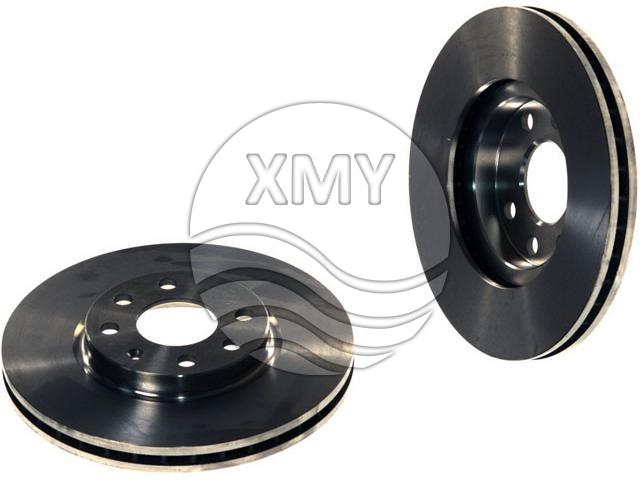

Ref.:05 69 000
Front Axle
Height : 41 mm
Diameter : 260 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 21 mm
Num. of holes : 6
Solid or Vented : V
Weight : 5 kg
