Catalog Search：
-

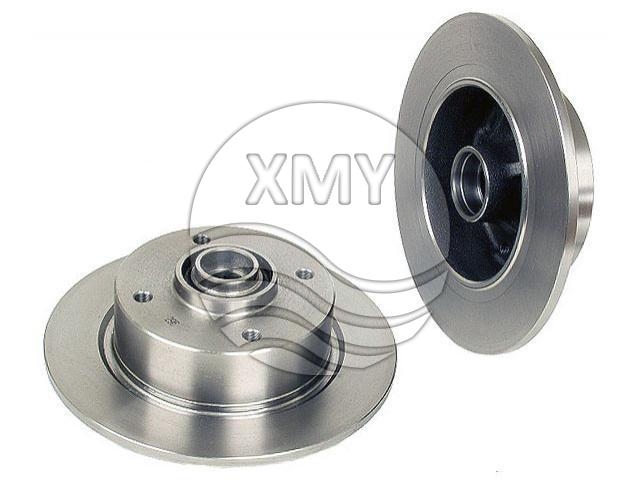

Ref.:113 407 075
Front Axle
Height : 83.8 mm
Diameter : 278 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 9.5 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 6.5 kg -

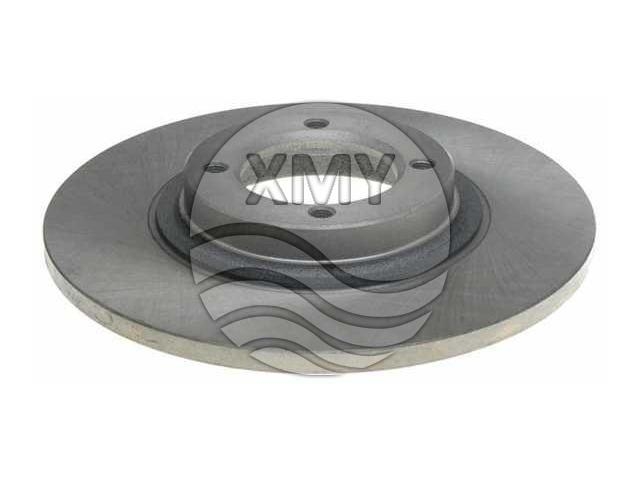

Ref.:43512-10040
Front Axle
Height : 31 mm
Diameter : 226 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 84 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 9 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.03 kg -
Front Axle
Height : 35.5 mm
Diameter : 245 mm
Centering Diameter : 73 mm
Pitch Circle Diameter : 95 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.5 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.46 kg -

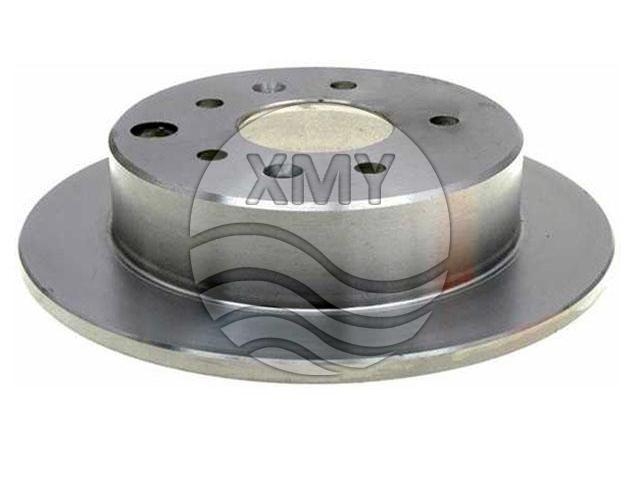

Ref.:HE17-26-251
Rear Axle
Height : 56.6 mm
Diameter : 266 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 10.2 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.1 kg -

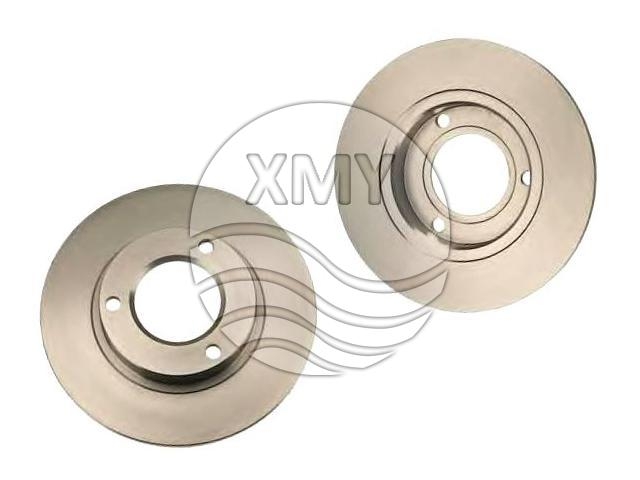

Ref.:4246.77
Front Axle
Height : 37 mm
Diameter : 263.5 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 9 mm
Num. of holes : 3
Solid or Vented : S
Weight : 3.84 kg -
Ref.:60701786
Rear Axle
Height : 21 mm
Diameter : 250 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 80 mm
Brake Disc Thickness : 9.9 mm
Minimum Thickness : 8 mm
Num. of holes : 6
Solid or Vented : S
Weight : 3.2 kg -
Ref.:60533971
Rear Axle
Height : 21 mm
Diameter : 250 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 80 mm
Brake Disc Thickness : 9.9 mm
Minimum Thickness : 8 mm
Num. of holes : 6
Solid or Vented : S
Weight : 3.2 kg -
Ref.:95 638 635
Front Axle
Height : 29 mm
Diameter : 238 mm
Centering Diameter : 57 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 9 mm
Num. of holes : 3
Solid or Vented : S -

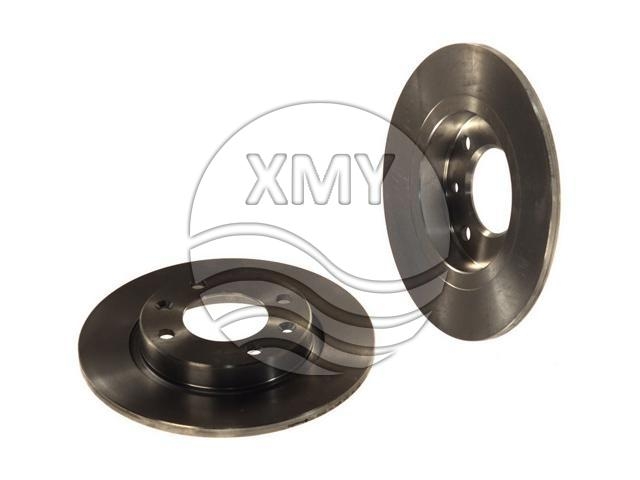

Ref.:4246.A2
Rear Axle
Height : 34.3 mm
Diameter : 247 mm
Centering Diameter : 71 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.1 kg -

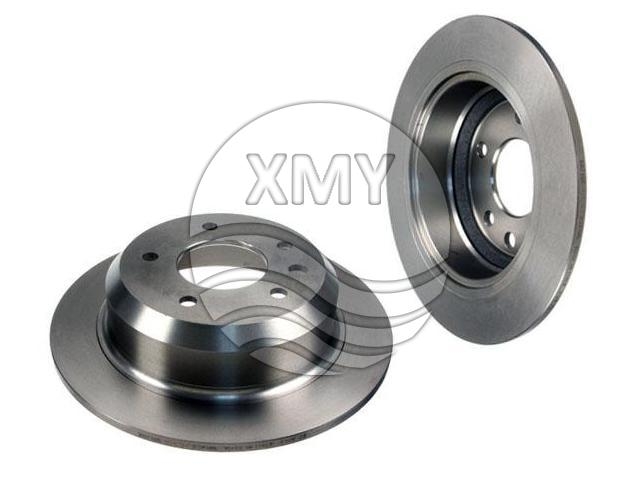

Ref.:JLM12424
Rear Axle
Height : 68 mm
Diameter : 295 mm
Centering Diameter : 73.8 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.3 kg
