Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-

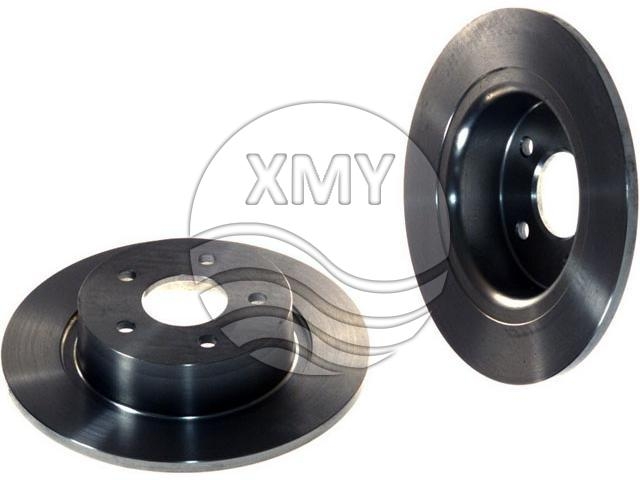

Ref.:4 367 107
Rear Axle
Height : 53.7 mm
Diameter : 278 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11.0 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.9 kg -

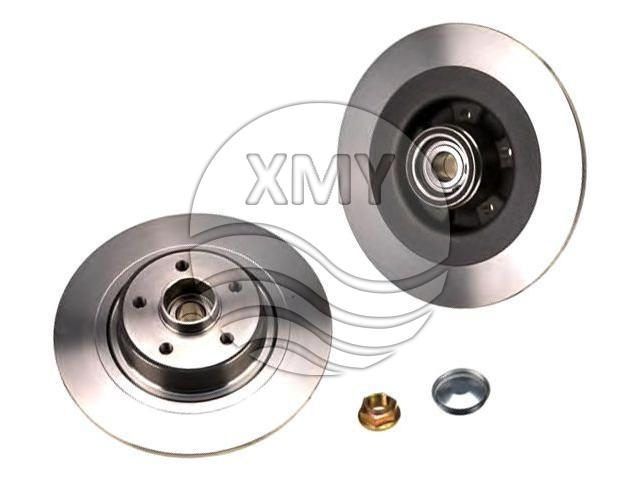

Ref.:82 00 244 108
Rear Axle
Height : 84.7 mm
Diameter : 300 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9.5 mm
Num. of holes : 5
Solid or Vented : S
Weight : 8.3 kg -

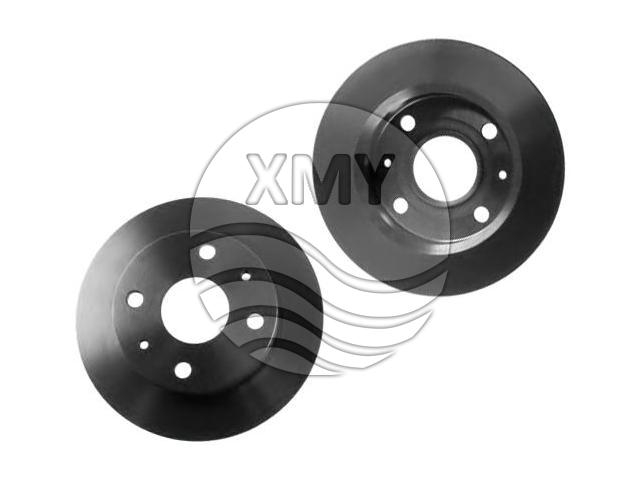

Ref.:43512-97207-000
Front Axle
Height : 40.9 mm
Diameter : 211 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 11.0 mm
Minimum Thickness : 10 mm
Num. of holes : 4
Solid or Vented : S
Weight : 2.6 kg -

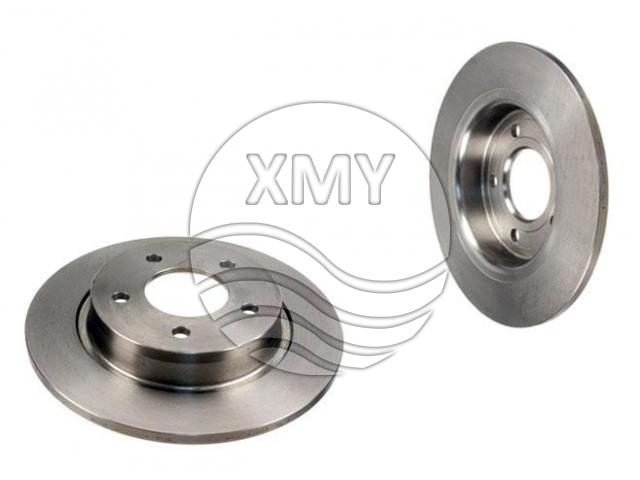

Ref.:BP6Y-26-251C
Rear Axle
Height : 40.8 mm
Diameter : 280 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 11.0 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.4 kg -

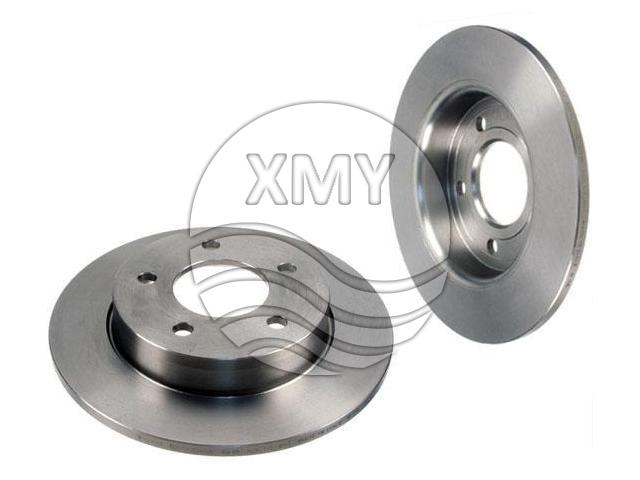

Ref.:BP4Y-26-251C
Rear Axle
Height : 40.7 mm
Diameter : 265 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 11 mm
Minimum Thickness : 9 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4 kg -
Rear Axle
Height : 82.2 mm
Diameter : 274 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 10.9 mm
Minimum Thickness : 9.5 mm
Num. of holes : 4
Solid or Vented : S
Weight : 7.1 kg -
Ref.:77 00 572 631
Front Axle, Rear Axle
Height : 40 mm
Diameter : 254 mm
Pitch Circle Diameter : 104 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 11 mm
Num. of holes : 3
Solid or Vented : S
Weight : 3.94 kg -

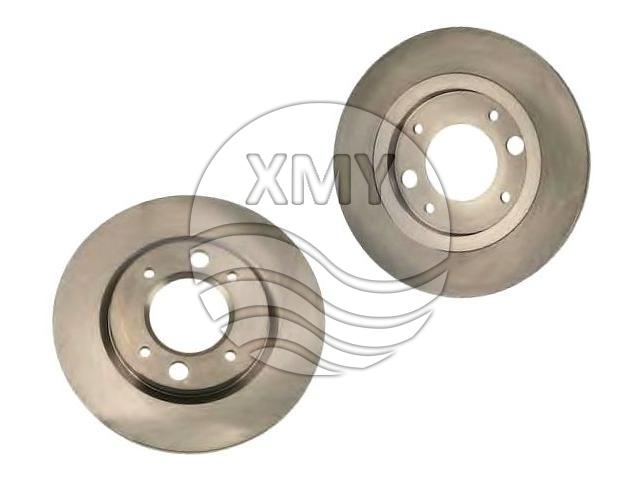

Ref.:79100073 78
Rear Axle
Height : 24.5 mm
Diameter : 273 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 118 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10.5 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.1 kg -
Front Axle
Height : 51.5 mm
Diameter : 257 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10.8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 5.0 kg -

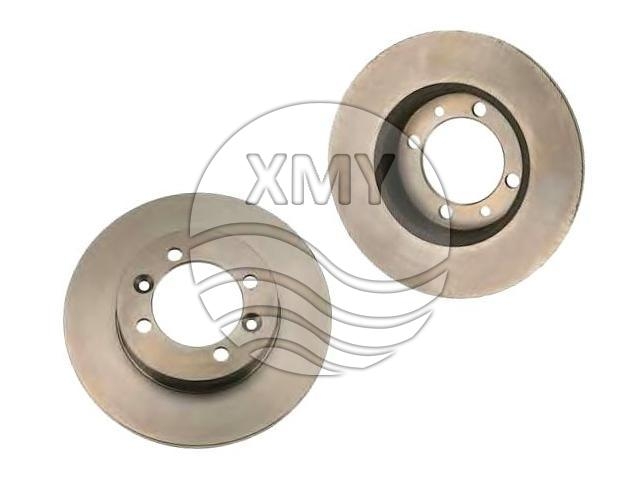

Ref.:77 00 677 045
Front Axle
Height : 41 mm
Diameter : 238 mm
Centering Diameter : 78 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10.5 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.52 kg
