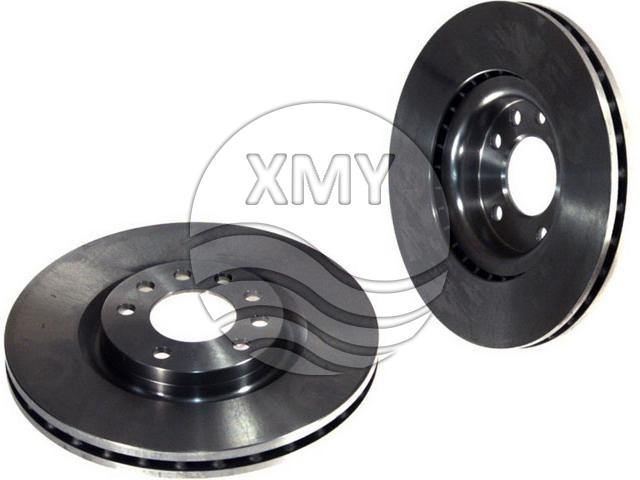

Ref.:51757229
Front Axle
Height : 44.7 mm
Diameter : 305 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 7
Solid or Vented : V
Weight : 8.4 kg -

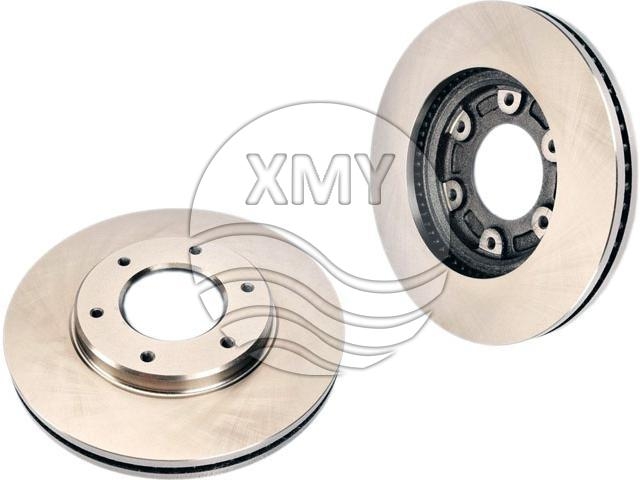

Ref.:43512-26160
Front Axle
Height : 45.5 mm
Diameter : 285 mm
Centering Diameter : 84 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7.5 kg -
Ref.:51760622
Front Axle
Height : 39.7 mm
Diameter : 330 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.8 kg -
Ref.:51767382
Front Axle
Height : 39.7 mm
Diameter : 305 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.5 kg -

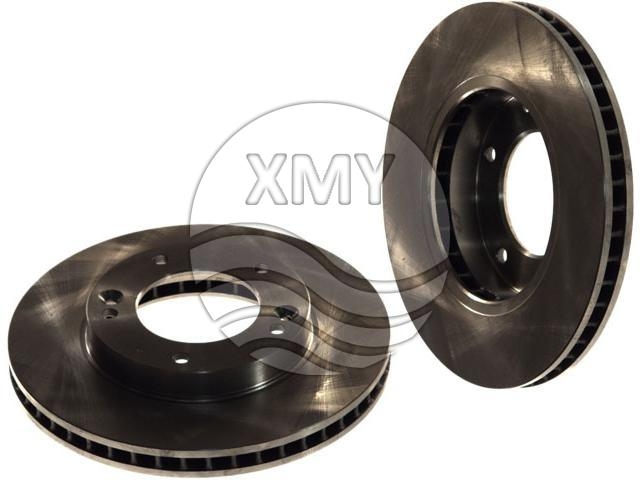

Ref.:51712-3E000
Front Axle
Height : 54 mm
Diameter : 302 mm
Centering Diameter : 96.3 mm
Pitch Circle Diameter : 139.6 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.4 kg -

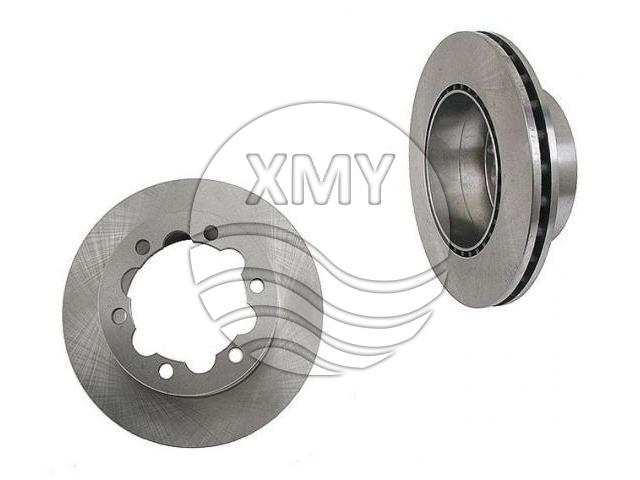

Ref.:906 423 01 12
Rear Axle
Height : 93 mm
Diameter : 303 mm
Centering Diameter : 120 mm
Pitch Circle Diameter : 145 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 25 mm
Num. of holes : 6
Solid or Vented : V
Weight : 9.6 kg -

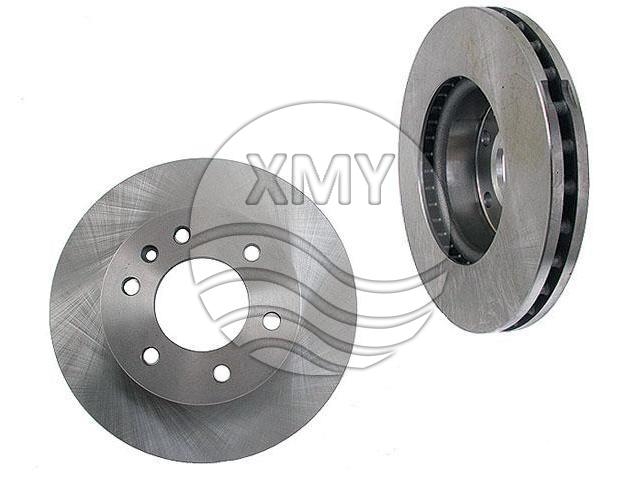

Ref.:906 421 00 12
Front Axle
Height : 68.5 mm
Diameter : 300 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 25 mm
Num. of holes : 6
Solid or Vented : V
Weight : 9.2 kg -
Front Axle, Left
Height : 52.5 mm
Diameter : 345 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26.4 mm
Num. of holes : 5
Solid or Vented : P/V -
Front Axle, Right
Height : 52.5 mm
Diameter : 345 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26.4 mm
Num. of holes : 5
Solid or Vented : P/V -
Front Axle
Height : 64.8 mm
Diameter : 288 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.5 kg
