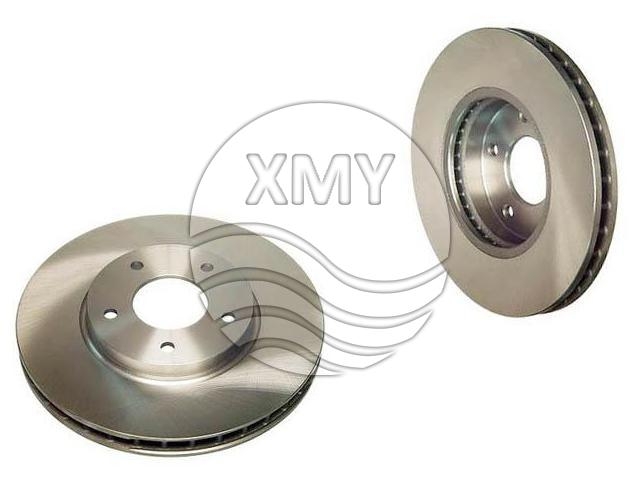

Ref.:JLM 20150
Front Axle
Height : 49.5 mm
Diameter : 305 mm
Centering Diameter : 73.8 mm
Pitch Circle Diameter : 120.7 mm
Brake Disc Thickness : 28.5 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.6 kg -
Front Axle
Height : 126 mm
Diameter : 322 mm
Centering Diameter : 148 mm
Pitch Circle Diameter : 205 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 27.4 mm
Num. of holes : 6
Solid or Vented : V
Weight : 15.9 kg -

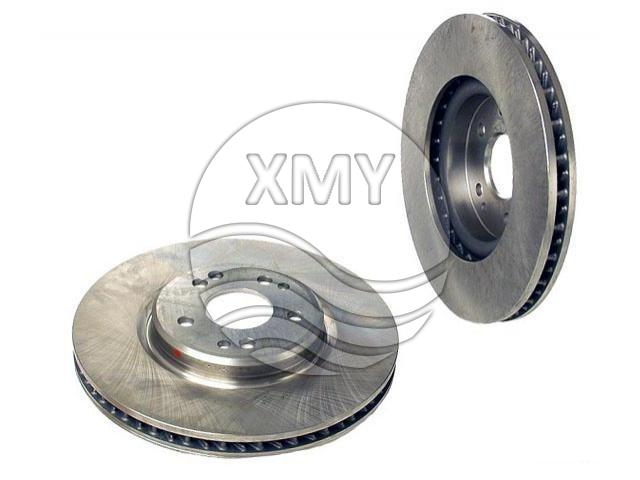

Ref.:129 421 17 12
Front Axle, Left
Height : 50.5 mm
Diameter : 320 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V -

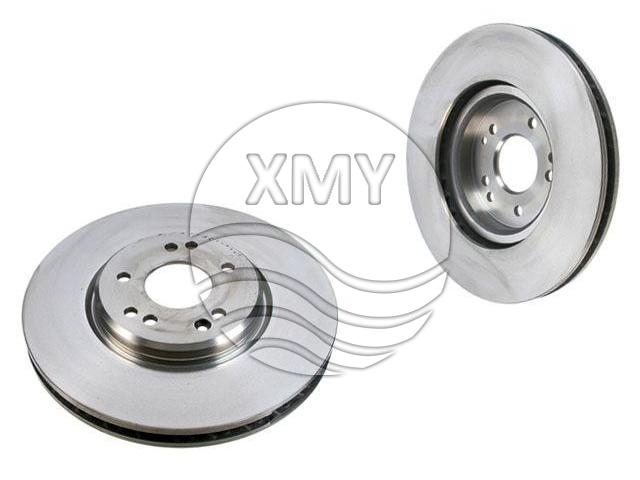

Ref.:129 421 18 12
Front Axle, Right
Height : 50.5 mm
Diameter : 320 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 28 mm
Num. of holes : 5
Solid or Vented : V -
Ref.:4D0 615 301 E
Front Axle
Height : 59.7 mm
Diameter : 345 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 28 mm
Num. of holes : 10
Solid or Vented : V
Weight : 12.1 kg -

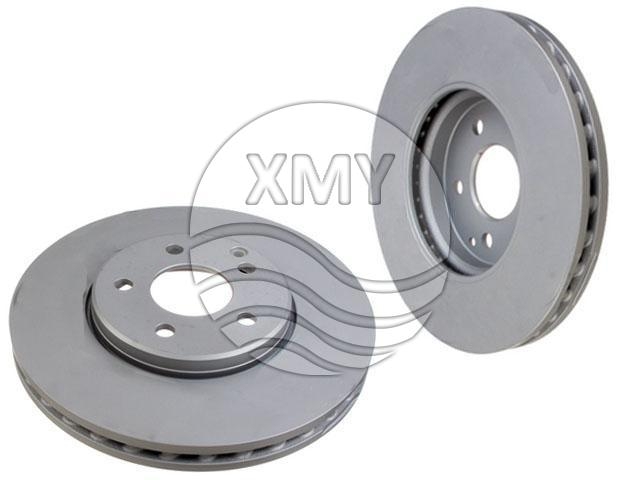

Ref.:211 421 12 12
Front Axle
Height : 47.7 mm
Diameter : 304 mm
Centering Diameter : 67 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 30.0 mm
Minimum Thickness : 27.4 mm
Num. of holes : 5
Solid or Vented : V
Weight : 9.4 kg -

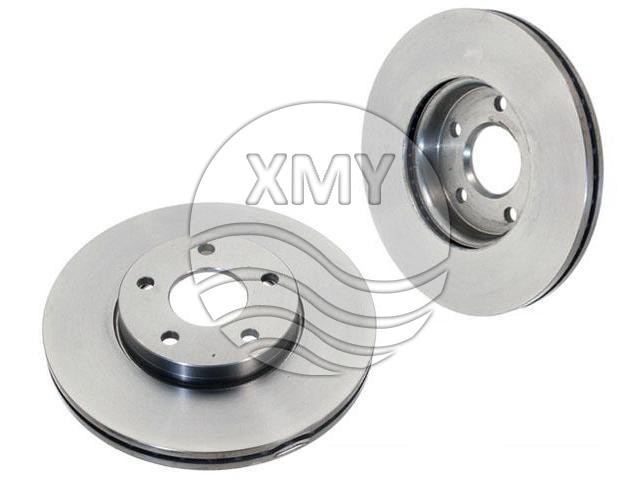

Ref.:274509
Front Axle
Height : 48.5 mm
Diameter : 278 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7 kg -

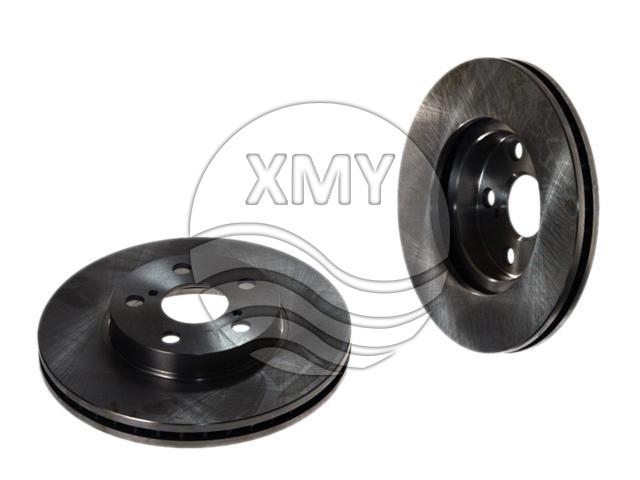

Ref.:43512-05030
Front Axle
Height : 49.2 mm
Diameter : 260 mm
Centering Diameter : 55 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.4 kg -
Front Axle
Height : 47 mm
Diameter : 282 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 4
Solid or Vented : V
Weight : 7 kg -

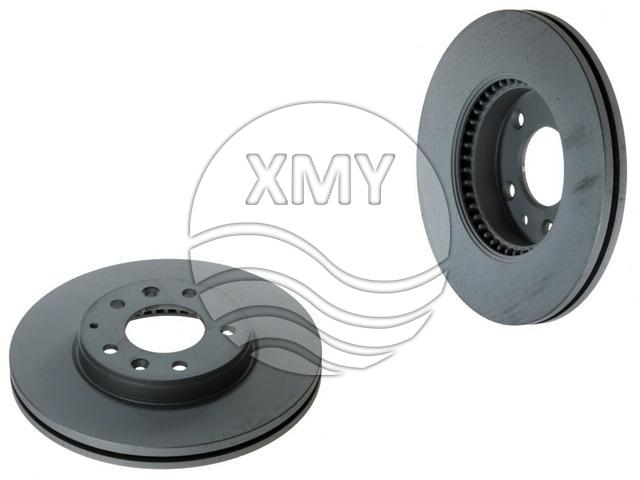

Ref.:GJ6Y-33-25XA
Front Axle
Height : 48.5 mm
Diameter : 282.5 mm
Centering Diameter : 72 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.6 kg
