Ref.:KAM2108
Front Axle
Height : 53 mm
Diameter : 276 mm
Centering Diameter : 83 mm
Pitch Circle Diameter : 105 mm
Brake Disc Thickness : 14 mm
Minimum Thickness : 12.8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 6.1 kg -
Front Axle
Height : 63 mm
Diameter : 275 mm
Centering Diameter : 82.5 mm
Pitch Circle Diameter : 104 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22 mm
Num. of holes : 5
Solid or Vented : V -

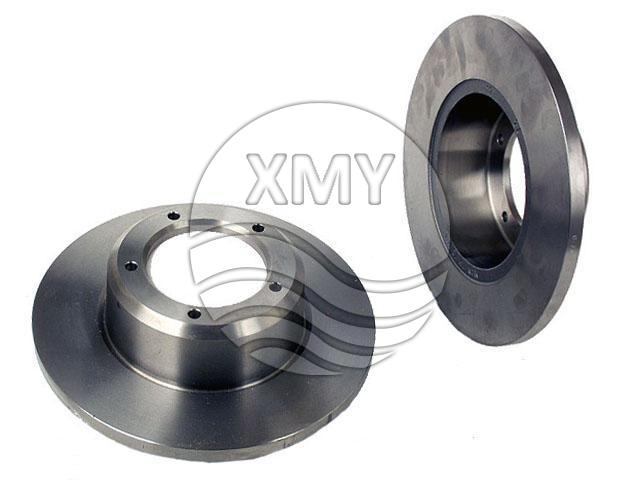

Ref.:R571762
Front Axle
Height : 70 mm
Diameter : 298 mm
Centering Diameter : 102 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 14 mm
Minimum Thickness : 13 mm
Num. of holes : 5
Solid or Vented : S
Weight : 6.85 kg -

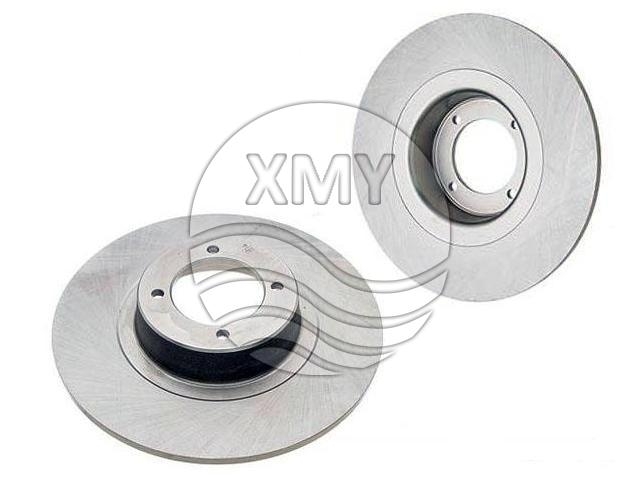

Ref.:GBD156
Front Axle
Height : 45 mm
Diameter : 273 mm
Centering Diameter : 73 mm
Pitch Circle Diameter : 96 mm
Brake Disc Thickness : 9 mm
Minimum Thickness : 7.6 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.74 kg -
Ref.:NAM5529
Front Axle
Height : 66 mm
Diameter : 213 mm
Centering Diameter : 56 mm
Pitch Circle Diameter : 73 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.6 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.06 kg -

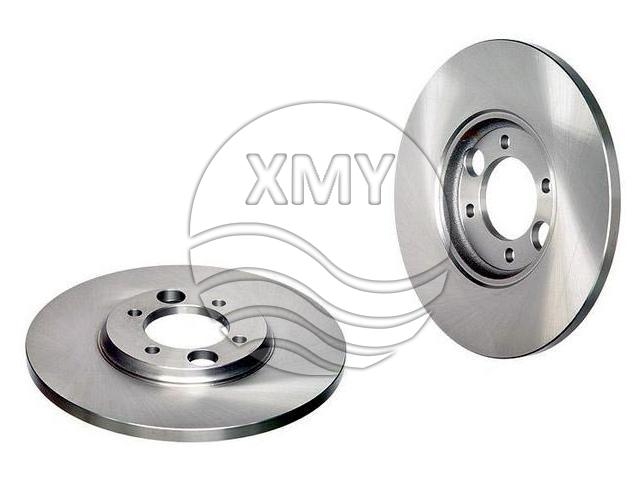

Ref.:C20326
Rear Axle
Height : 25.5 mm
Diameter : 264 mm
Centering Diameter : 69.9 mm
Pitch Circle Diameter : 95.25 mm
Brake Disc Thickness : 12.7 mm
Minimum Thickness : 11.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.38 kg -
Rear Axle
Height : 26 mm
Diameter : 264 mm
Centering Diameter : 70 mm
Pitch Circle Diameter : 95.4 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 11.4 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.4 kg -

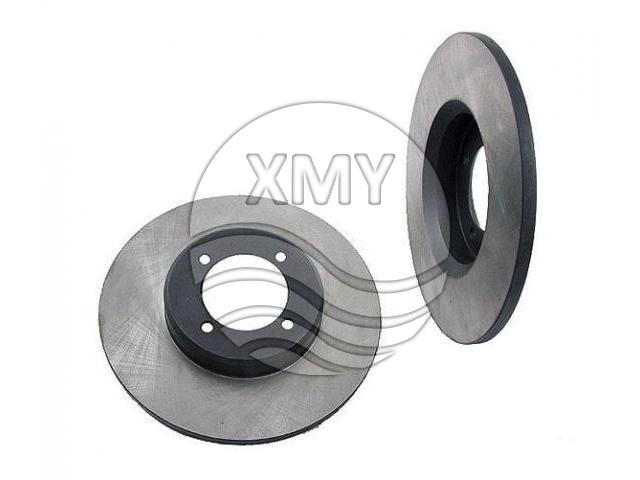

Ref.:43512-22030
Front Axle
Height : 42 mm
Diameter : 266 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 13 mm
Minimum Thickness : 11.5 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.64 kg -

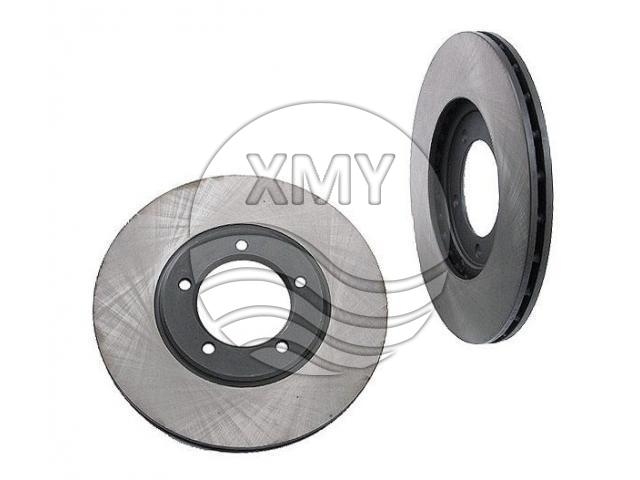

Ref.:43512-26031
Front Axle
Height : 25.9 mm
Diameter : 252 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 104 mm
Brake Disc Thickness : 20.1 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V
Weight : 4.5 kg -
Front Axle
Height : 39 mm
Diameter : 239 mm
Centering Diameter : 64 mm
Pitch Circle Diameter : 96 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8.6 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.07 kg
