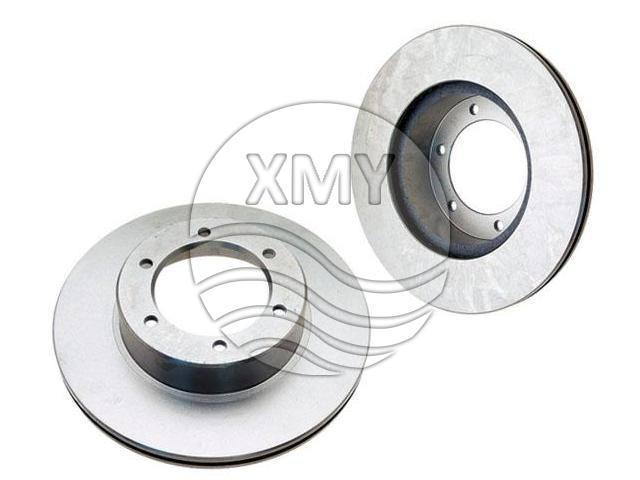

Ref.:43512-35190
Front Axle
Height : 64.2 mm
Diameter : 289 mm
Centering Diameter : 100 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 6
Solid or Vented : V
Weight : 6.3 kg -

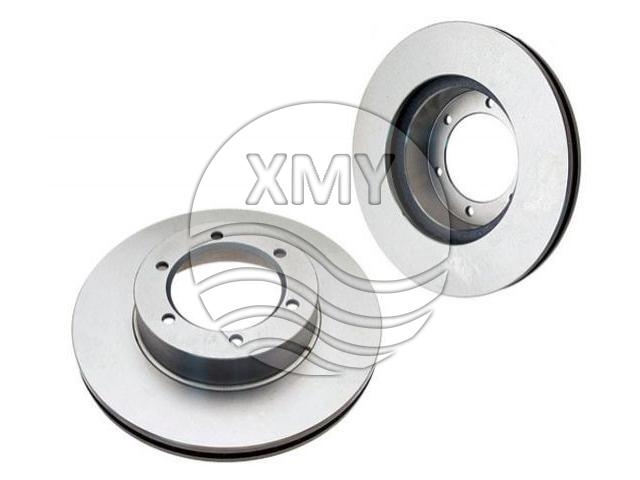

Ref.:43512-35200
Front Axle
Height : 65.8 mm
Diameter : 291 mm
Centering Diameter : 100 mm
Pitch Circle Diameter : 127 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7 kg -
Front Axle
Height : 48 mm
Diameter : 275 mm
Centering Diameter : 60 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 24 mm
Num. of holes : 5
Solid or Vented : V -

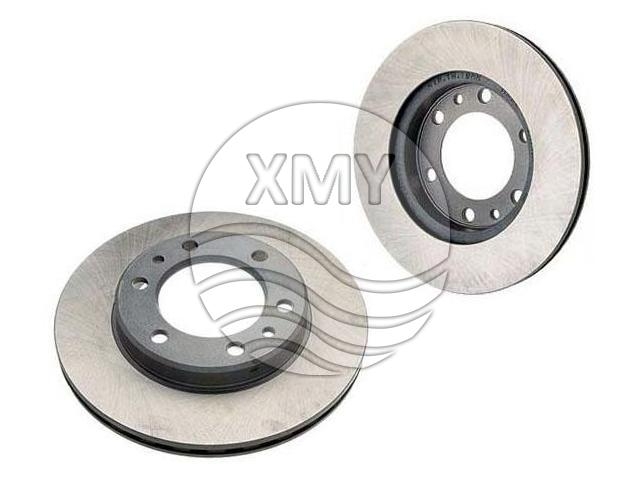

Ref.:43512-60040
Front Axle
Height : 48 mm
Diameter : 302 mm
Centering Diameter : 100 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 19 mm
Num. of holes : 6
Solid or Vented : V
Weight : 6.6 kg -
Front Axle
Height : 58 mm
Diameter : 286 mm
Centering Diameter : 105 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 6
Solid or Vented : V
Weight : 7 kg -
Ref.:321 615 301 C
Front Axle
Height : 39 mm
Diameter : 239 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.8 kg -

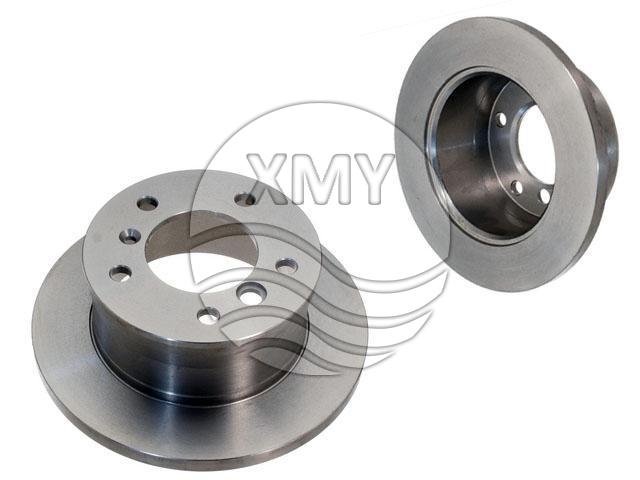

Ref.:902 423 01 12
Rear Axle
Height : 96.7 mm
Diameter : 272 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 16.0 mm
Minimum Thickness : 14 mm
Num. of holes : 5
Solid or Vented : S
Weight : 7 kg -
Ref.:34 11 1 151 632
Front Axle
Height : 76 mm
Diameter : 284 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 120 mm
Brake Disc Thickness : 12.0 mm
Minimum Thickness : 10.4 mm
Num. of holes : 5
Solid or Vented : S
Weight : 5.4 kg -

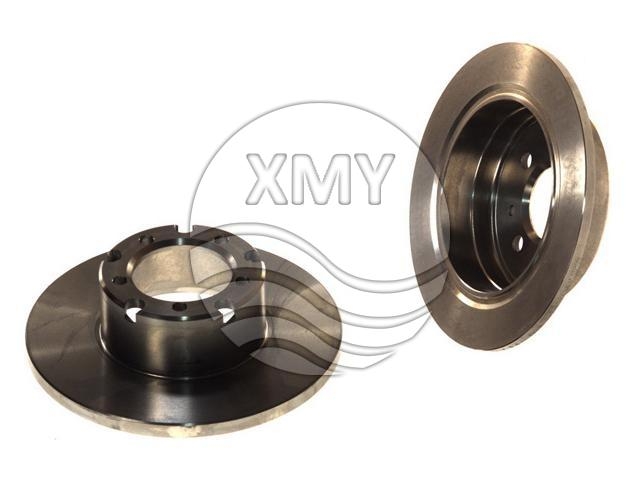

Ref.:601 420 00 72
Front Axle
Height : 78.6 mm
Diameter : 280 mm
Centering Diameter : 88 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 16.0 mm
Minimum Thickness : 13 mm
Num. of holes : 5
Solid or Vented : S
Weight : 7.04 kg -

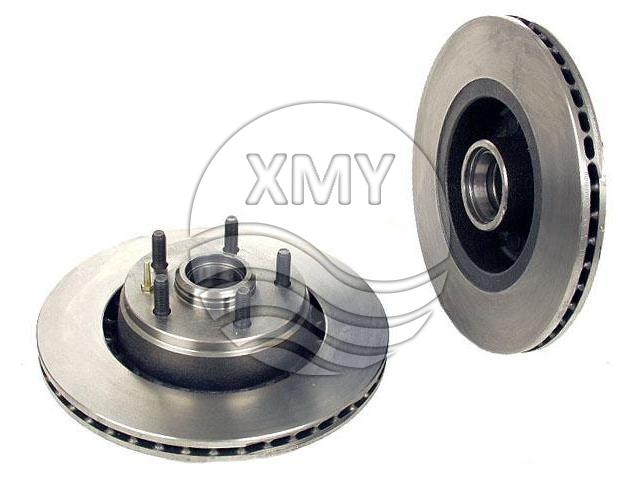

Ref.:1330 835
Front Axle
Height : 70 mm
Diameter : 287 mm
Centering Diameter : 65 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
