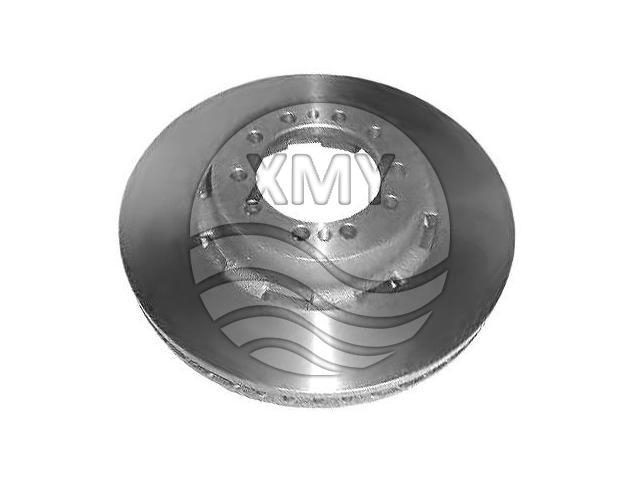

Ref.:50 10 216 548
Front Axle
Height : 100 mm
Diameter : 440 mm
Centering Diameter : 131 mm
Pitch Circle Diameter : 165 mm
Brake Disc Thickness : 44.5 mm
Minimum Thickness : 39.4 mm
Num. of holes : 10
Solid or Vented : V
Weight : 29 kg -
Front Axle
Height : 96.6 mm
Diameter : 438 mm
Centering Diameter : 194 mm
Pitch Circle Diameter : 194 mm
Brake Disc Thickness : 45 mm
Minimum Thickness : 41 mm
Num. of holes : 10
Solid or Vented : V
Weight : 32.4 kg -

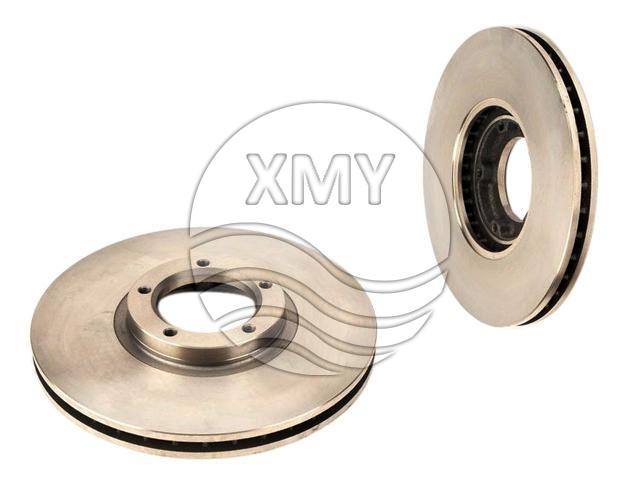

Ref.:5 029 816
Front Axle
Height : 43 mm
Diameter : 270 mm
Centering Diameter : 78.5 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24 mm
Minimum Thickness : 22.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.5 kg -

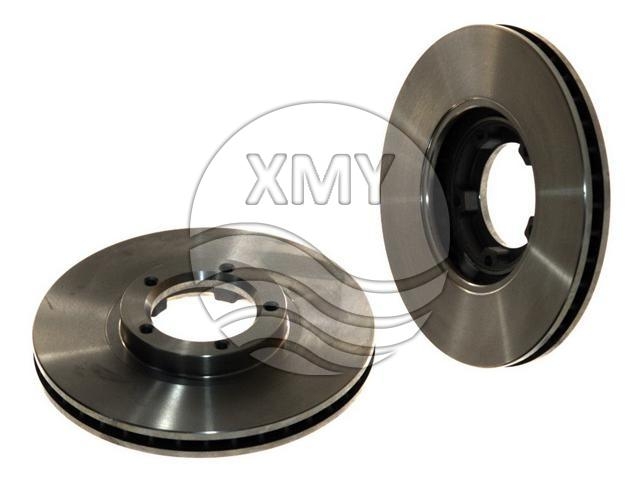

Ref.:5 029 815
Front Axle
Height : 43 mm
Diameter : 254 mm
Centering Diameter : 78.5 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24.2 mm
Minimum Thickness : 22.2 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.6 kg -

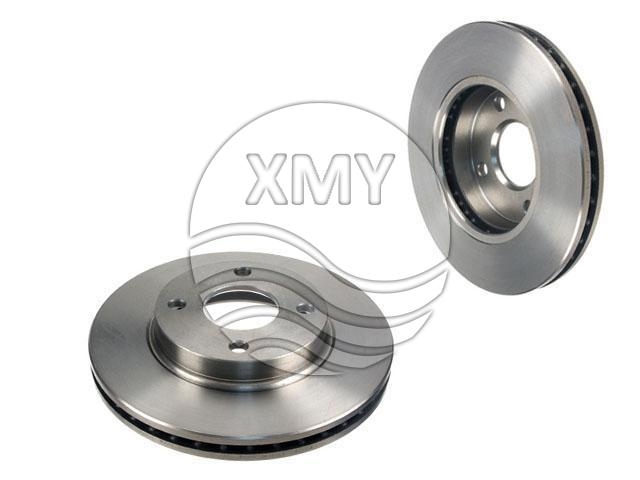

Ref.:5 026 784
Front Axle
Height : 47 mm
Diameter : 260 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24.0 mm
Minimum Thickness : 22.2 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.3 kg -

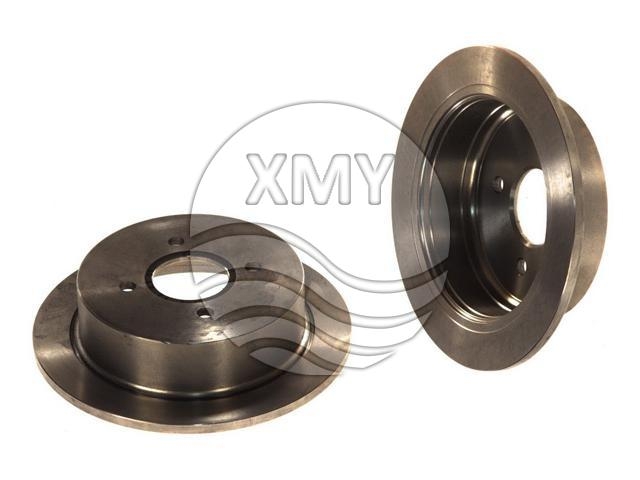

Ref.:5 025 951
Rear Axle
Height : 62.6 mm
Diameter : 270 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8.6 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.6 kg -

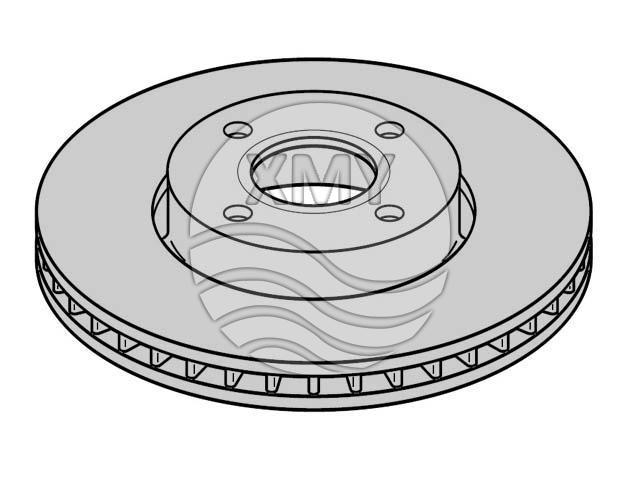

Ref.:5 025 950
Front Axle
Height : 44 mm
Diameter : 260 mm
Centering Diameter : 63.5 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 24.2 mm
Minimum Thickness : 22.2 mm
Num. of holes : 4
Solid or Vented : V -

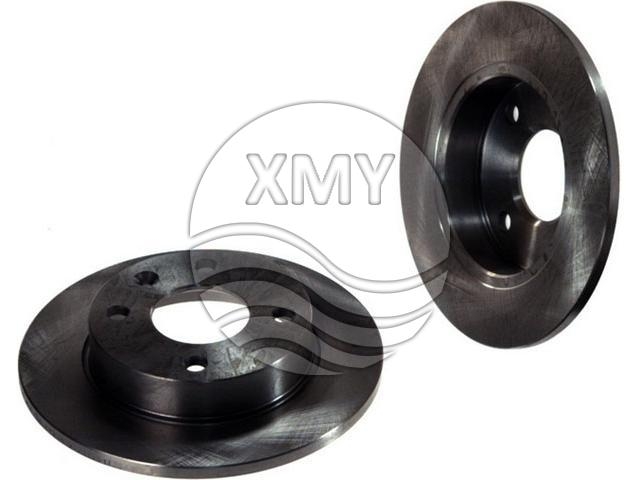

Ref.:5 022 652
Front Axle
Height : 43 mm
Diameter : 239.7 mm
Centering Diameter : 63.6 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.3 kg -
Rear Axle
Height : 49.4 mm
Diameter : 330 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.6 kg -
Rear Axle
Height : 49.4 mm
Diameter : 302 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 12 mm
Minimum Thickness : 10 mm
Solid or Vented : S
Weight : 5.3 kg
