Professional and precise product catalogs will surely provide long-term, robust support for the sustained growth of your business performance.
Please contact us if you require the complete product catalog.
Catalog Search：
-

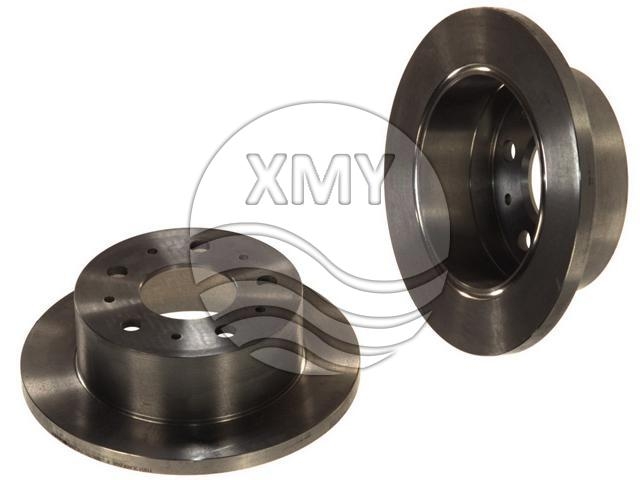

Ref.:46833807
Rear Axle
Height : 82 mm
Diameter : 280 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 16.0 mm
Minimum Thickness : 14.2 mm
Num. of holes : 5
Solid or Vented : S
Weight : 7.5 kg -
Front Axle
Height : 46.5 mm
Diameter : 240 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 20.0 mm
Minimum Thickness : 18.2 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.4 kg -
Ref.:46403088
Front Axle
Height : 43.5 mm
Diameter : 284 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20.2 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6 kg -

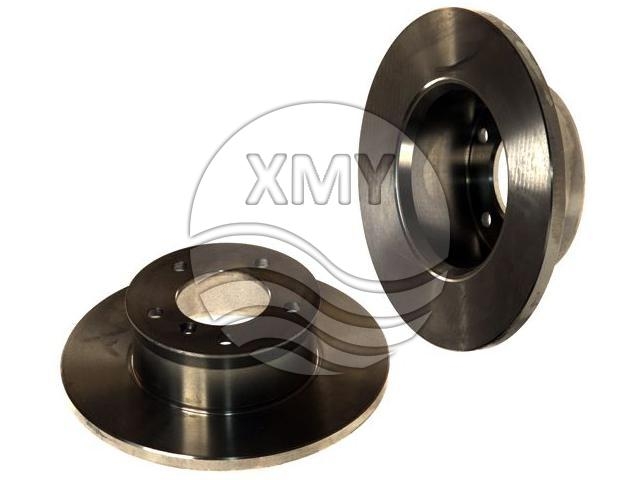

Ref.:460 421 00 12
Front Axle
Height : 83 mm
Diameter : 303 mm
Centering Diameter : 85 mm
Pitch Circle Diameter : 130 mm
Brake Disc Thickness : 16 mm
Minimum Thickness : 13 mm
Num. of holes : 5
Solid or Vented : V
Weight : 8.16 kg -

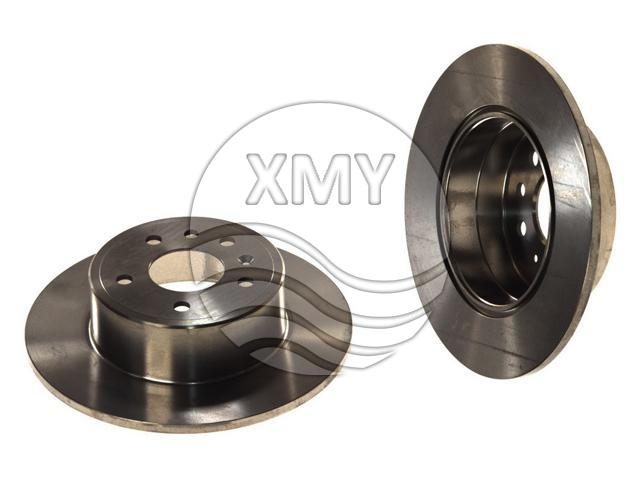

Ref.:45 65 693
Rear Axle
Height : 69.3 mm
Diameter : 286 mm
Centering Diameter : 65.5 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.8 kg -
Ref.:447 615 601 A
Rear Axle
Height : 46 mm
Diameter : 269 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 19.9 mm
Minimum Thickness : 18 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 65.5 mm
Diameter : 245 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.63 kg -
Ref.:443 615 601 B
Rear Axle
Height : 46.5 mm
Diameter : 245 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 10 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 3.4 kg -
Rear Axle
Height : 59.5 mm
Diameter : 245 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3.5 kg -
Ref.:443 615 301
Front Axle
Height : 46.5 mm
Diameter : 256 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 13.0 mm
Minimum Thickness : 11 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.5 kg
