Front Axle
Height : 59.4 mm
Diameter : 276 mm
Centering Diameter : 68.1 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V -
Rear Axle
Height : 59.5 mm
Diameter : 245 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 10.0 mm
Minimum Thickness : 8 mm
Num. of holes : 5
Solid or Vented : S
Weight : 3.5 kg -
Ref.:437 615 301 A
Front Axle
Height : 46.4 mm
Diameter : 279.8 mm
Pitch Circle Diameter : 112 mm
Brake Disc Thickness : 21.8 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.9 kg -
Ref.:443 615 301 B

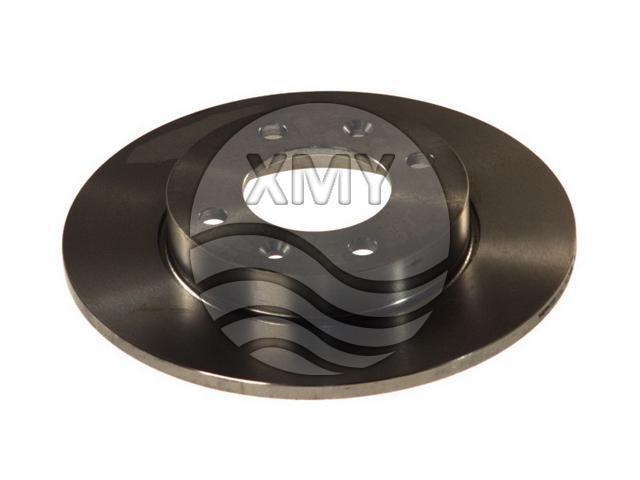

Front Axle
Height : 46.5 mm
Diameter : 256 mm
Centering Diameter : 68 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.9 kg -
Ref.:4246.X8

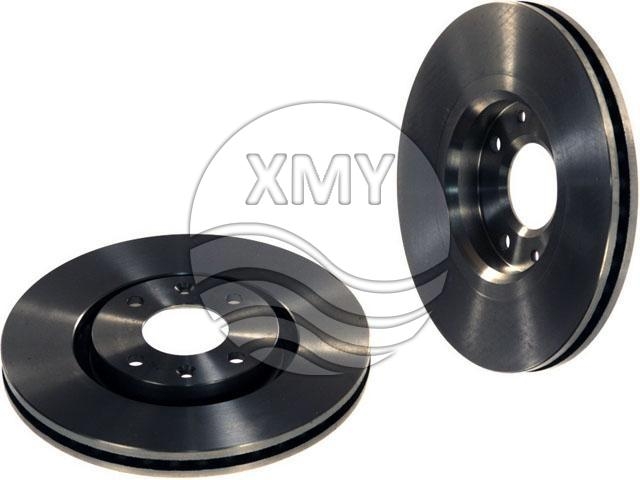

Rear Axle
Height : 35 mm
Diameter : 247 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 9.0 mm
Minimum Thickness : 8 mm
Num. of holes : 4
Solid or Vented : S
Weight : 3 kg -
Ref.:4246.W2

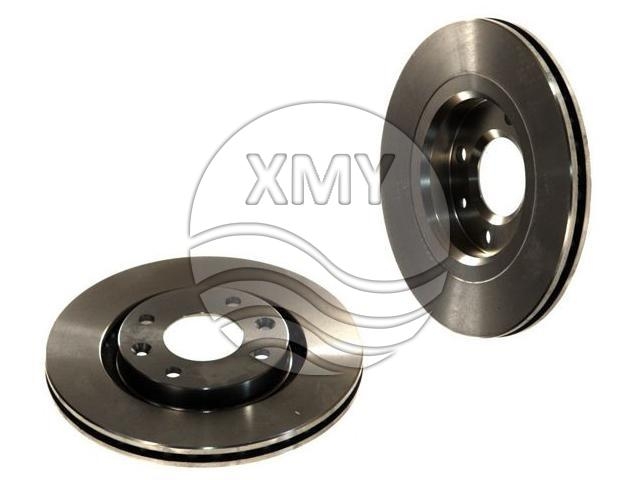

Front Axle
Height : 34.2 mm
Diameter : 283 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 26.0 mm
Minimum Thickness : 24 mm
Num. of holes : 4
Solid or Vented : V
Weight : 6.8 kg -
Ref.:4246.W1

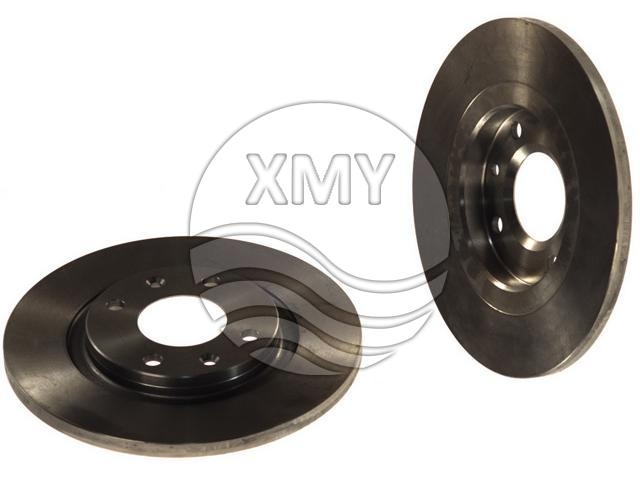

Front Axle
Height : 34.2 mm
Diameter : 266 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5 kg -
Ref.:4246.R2

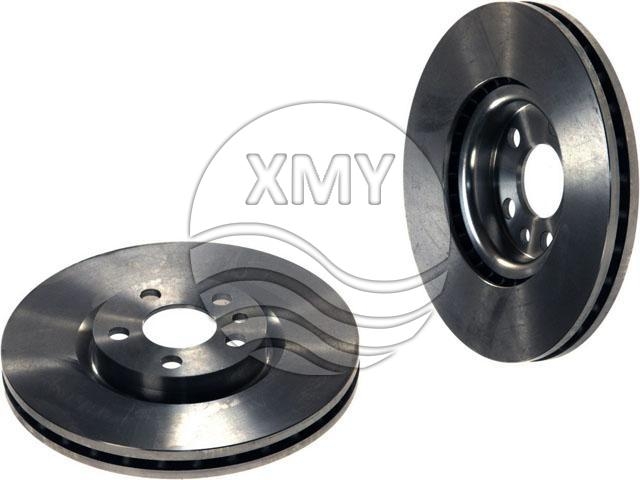

Front Axle
Height : 27.2 mm
Diameter : 266 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 13.0 mm
Minimum Thickness : 11 mm
Num. of holes : 4
Solid or Vented : S
Weight : 4.1 kg -
Ref.:4246.P2
Front Axle
Height : 43.7 mm
Diameter : 285 mm
Centering Diameter : 59 mm
Pitch Circle Diameter : 98 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 7.9 kg -
Ref.:4246.N0

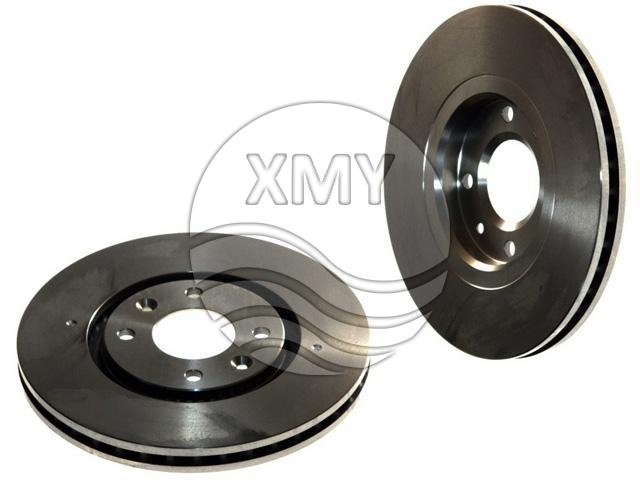

Front Axle
Height : 28.2 mm
Diameter : 283 mm
Centering Diameter : 66 mm
Pitch Circle Diameter : 108 mm
Brake Disc Thickness : 26.0 mm
Minimum Thickness : 24.2 mm
Num. of holes : 4
Solid or Vented : V
Weight : 7 kg
